distance extend up to 300 meters under 1920*1200@60Hz.
Support EDID pass though, best compliant with different display devices.
- Product Details
- {{item.text}}
Quick Details
-
Resolution:
-
1080P@60HZ
-
Video Interface:
-
VGA
-
Transmission Distance:
-
300m
-
Feature:
-
2* USB Type A (Keyboard & mouse)
-
Feature 2:
-
IR signal pass through
-
HDCP:
-
Yes
-
L/R Audio Output:
-
Support
-
Casing Material:
-
Aluminium Alloy
-
Function:
-
Extender HDMI
Quick Details
-
Model Number:
-
VKE3011A10
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
KVM Extender
-
Resolution:
-
1080P@60HZ
-
Video Interface:
-
VGA
-
Transmission Distance:
-
300m
-
Feature:
-
2* USB Type A (Keyboard & mouse)
-
Feature 2:
-
IR signal pass through
-
HDCP:
-
Yes
-
L/R Audio Output:
-
Support
-
Casing Material:
-
Aluminium Alloy
-
Function:
-
Extender HDMI
Products Description

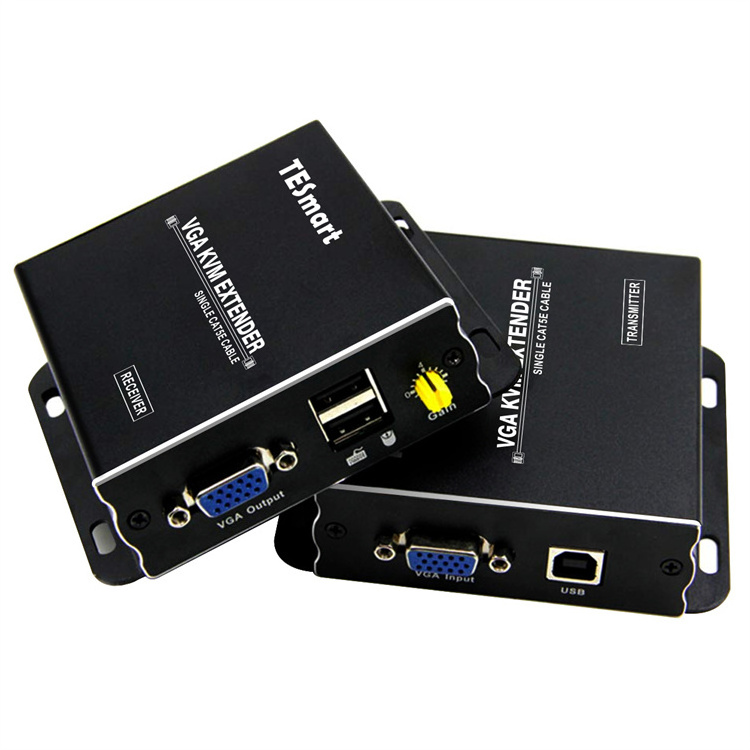

300M VGA KVM Extender
distance extend up to 300 meters under 1920*1200@60Hz.
Features:
✔
Resolution up to 1920*1200@60Hz over CAT5e/6 UTP/FTP cable up to 300 meters
✔
With smart brightness and contrast adjustment algorithm, easy to adjust 0-15 gain levels to match 0-300 meters UTP/FTP cable
✔
Smart gain control, effective for common mode noise suppression, keep high fidelity picture quality even by 300 meters
transmission
✔
Easy to control PC remotely with transmitting keyboard and mouse data
✔
EDID pass through, compatible with most display devices
|
VKE3011A10
|
300M VGA KVM Extender
|
|
||
|
Technical
|
|
|
||
|
Max. resolution
|
1920*1200@60Hz
|
|
||
|
EDID pass through
|
Yes
|
|
||
|
Video bandwidth
|
138 MHz
|
|
||
|
ESD protection
|
Human body model - ±8kV (Air-gap discharge)
|
|
||
|
Input
|
Transmitter: 1* VGA
Receiver: 1*RJ45, 2* USB Type A (Keyboard & mouse)
|
|
||
|
utput
|
Transmitter: 1*RJ45, 1* USB Type B
Receiver: 1* VGA
|
|
||
|
Mechanical
|
|
|
||
|
Casing material
|
Aluminum Alloy
|
|
||
|
Power supply
|
DC 5V 1A
|
|
||
|
Operating/Storage temperature
|
0 to 70 degree/-40 to 85 degree
|
|
||
|
Operating Humidity
|
10 to 90% RH
|
|
||
|
Product
|
Dimension
|
TX:94 (L) x 103 (W) x 30 (H) mm
RX:94 (L) x 103 (W) x 30 (H) mm
|
||
|
|
Weight
|
TX:167g
RX:170g
|
||
|
Item
|
Dimension
|
245 (L) x 135 (W) x 90 (H) mm
|
||
|
|
Weight
|
687g
|
||
|
Carton
|
Dimension
|
515 (L) x 285 (W) x 470 (H) mm
|
||
|
|
Quantity
|
20pcs
|
||
|
|
Total Weight
|
14.59kg
|
||
