Quick Details
-
Model Number:
-
ETA5315
-
Input to output:
-
10Aac---1Vac
-
Accuracy:
-
+1%,-0%
-
Input impedance:
-
50Ω
-
Maximum pulse peak current:
-
600(A)
-
Minimum RMS current:
-
5(mA)
-
Maximum RMS current:
-
15(A)
-
Maximum diameter through wire:
-
5mm
-
Rising time:
-
5(nsec)
-
Working environment:
-
0~65℃
-
Weight:
-
40g
-
Certification:
-
none
Quick Details
-
Warranty:
-
one year warranty
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
ETA
-
Model Number:
-
ETA5315
-
Input to output:
-
10Aac---1Vac
-
Accuracy:
-
+1%,-0%
-
Input impedance:
-
50Ω
-
Maximum pulse peak current:
-
600(A)
-
Minimum RMS current:
-
5(mA)
-
Maximum RMS current:
-
15(A)
-
Maximum diameter through wire:
-
5mm
-
Rising time:
-
5(nsec)
-
Working environment:
-
0~65℃
-
Weight:
-
40g
-
Certification:
-
none

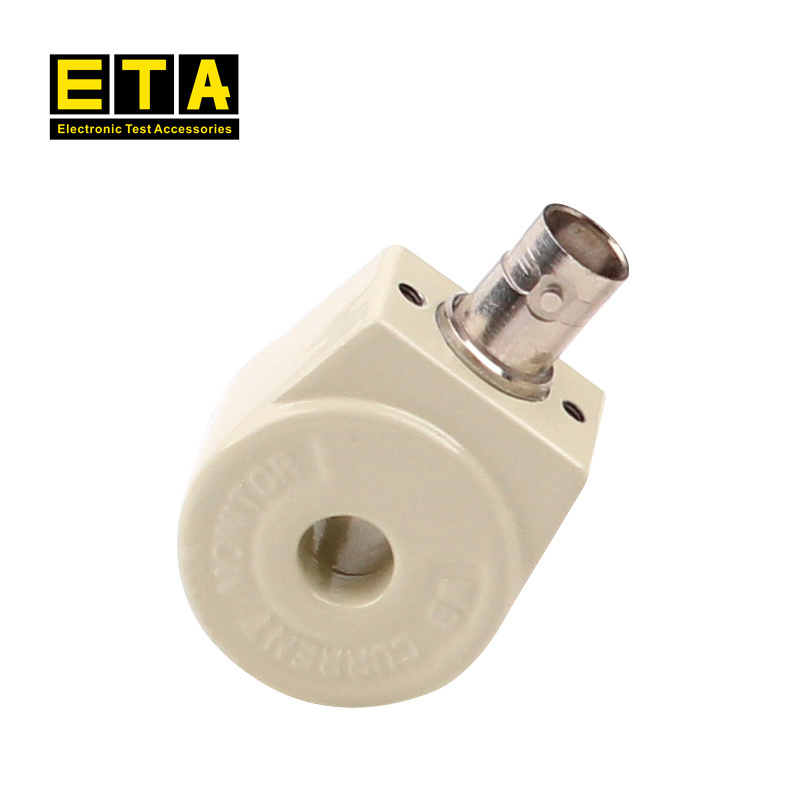

Commodity shooting
Dimensions
|
Model |
ETA5301A |
ETA5302 |
ETA5315 |
ETA5380 |
|
Measuring range |
50mA to 10A peak 50mA to 100A peak |
1mA to 200A peak 100mA to 300A peak 100mA to 30A peak |
50mA to 20A peak
|
10mA to 100A peak
|
|
Input to output ratio |
10mV/A 100mV/A |
1mV/A 10mV/A 100mV/A |
100mV/A |
100mV/A |
|
Bandwidth |
DC to 300 KHz |
10Hz to 100KHz |
25Hz to 60MHz |
1Hz to 20MHz |
|
Accuracy |
3% |
3% 2% 1% |
1% |
1% |
|
Jaw diameter |
11mm |
52mm |
8mm |
18mm |
|
Input |
AC/DC |
AC |
||
|
Cable length |
1M |
1.5M |
1M |
1M |
|
Specification |
280*70*32mm |
216*111*45mm |
47.5*30*20mm |
76.5*158*23mm |
|
Weight |
260g |
550g |
40g |
160g |
|
Power supply |
9V battery or power adapter |
|
||
