Quick Details
-
Voltage:
-
customized
-
Power:
-
0.75kW
-
Dimension(L*W*H):
-
700 x 700 x 3200mm(or customized)
-
Warranty:
-
12 months
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
reciprocator material:
-
powder coated steel
-
painting work:
-
automatic painting
-
carry gun quantity:
-
reciprocator carry 2,4,6 sets auto guns or customized
-
Certification:
-
ISO9001
-
Weight:
-
295KG
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Huamei
-
Model Number:
-
HM
-
Voltage:
-
customized
-
Power:
-
0.75kW
-
Dimension(L*W*H):
-
700 x 700 x 3200mm(or customized)
-
Warranty:
-
12 months
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
reciprocator material:
-
powder coated steel
-
painting work:
-
automatic painting
-
carry gun quantity:
-
reciprocator carry 2,4,6 sets auto guns or customized
-
Certification:
-
ISO9001
-
Weight:
-
295KG

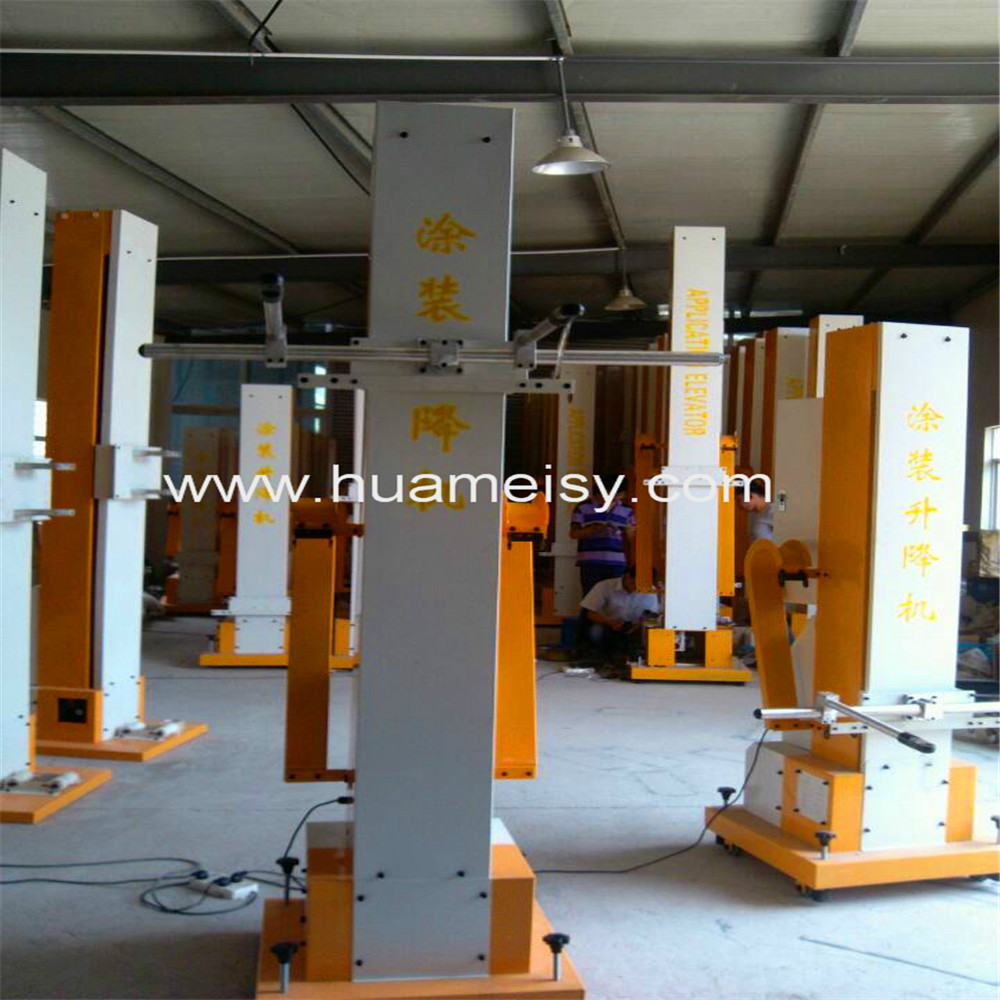

Paint Spray Robot
automatic reciprocator for painting equipment:
The Reciprocator is used for smooth movements of Guns for Application of Liquid Paint
or Powder Coating at Various Speeds & Stroke Length to Suit Conveyor speed
& Jig Height Respectively.
The spraying guns are mounted on an arm extended from a carriage. It is programmed
to move in required stroke lengths & speeds depending on object height for up
& down movements of guns & conveyor speed.
The PLC based smart control and keypad enables you to punch in user-friendly parameters
like stroke length & speed can be viewed on LCD display, especially the top
dead point and bottom dead point can be easily set and remembered online.
Paint Spray Robot Advantages:
1). Easily Adjustable Stroke Length & Speed to Suit Production Needs.
2). Precise Speed & Stroke Length.
3). Increased Production & Quality Coating.
4). Exact Stroke Length Adjustment Reduces Paint / Powder Wastage.
5). Reduces Maintenance - Only Cleaning & Lubrication is required periodically.
6). Minimizes Labor Cost.
7). Electronically Controlled Smooth Reversing reduces Gun Vibration.
Paint Spray Robot
Specifications:
1) Power supply: AC220 - 240 V, 50 - 60Hz
2) Power of motor: 0.75kW/1.1kW
3) Reduction rate of reducer: 1:15
4) Stroke: max. 1,300mm, adjustable
5) Product height:customized
