Quick Details
-
Marketing Type:
-
New Product
-
Core Components:
-
Laser Source
-
Place of Origin:
-
HUB
-
Brand Name:
-
Baikeopto
-
Dimension(L*W*H):
-
884mm*525mm*850mm
-
Weight (KG):
-
100 KG
Quick Details
-
Power:
-
1500W
-
Laser Type:
-
Fiber Laser
-
Laser Source Brand:
-
JPT
-
Marketing Type:
-
New Product
-
Core Components:
-
Laser Source
-
Place of Origin:
-
HUB
-
Brand Name:
-
Baikeopto
-
Dimension(L*W*H):
-
884mm*525mm*850mm
-
Weight (KG):
-
100 KG

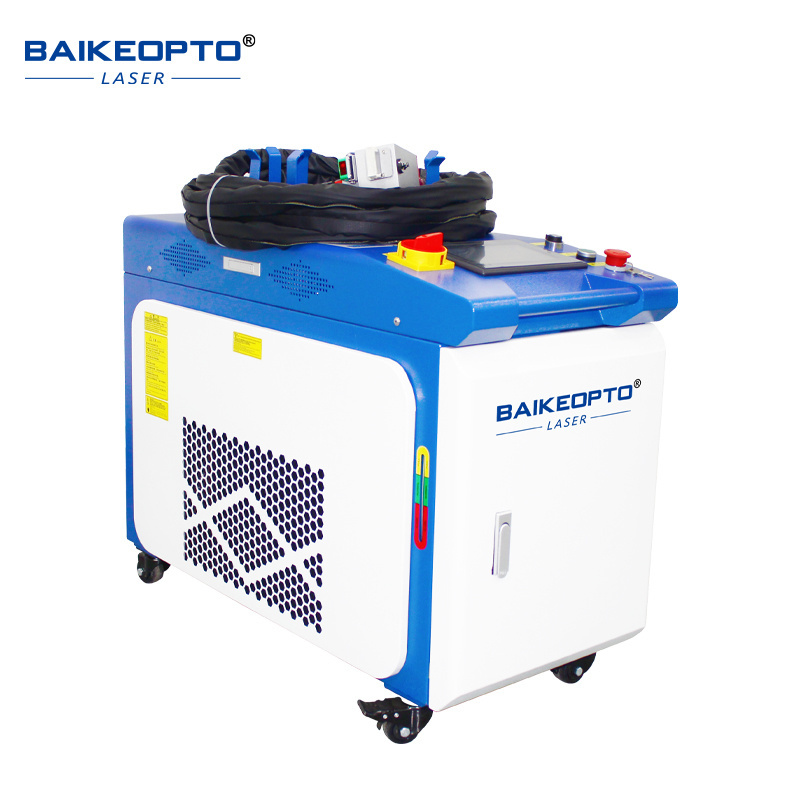

Product Description
Features
1. non-contact cleaning without damaging the matrix of the parts;
2. accurate cleaning, can achieve precise position, accurate size selective cleaning;
3. do not need any chemical cleaning liquid, no consumables, safety and environmental protection;
4. simple operation, hand-held or with the manipulator to achieve automatic cleaning;
5. ergonomics design, operating labor intensity greatly reduced;
6. trolley design, with its own moving wheel, easy to move;
7. High cleaning efficiency, save time;
8. laser cleaning system is stable with little maintenance;
Technical Parameters
|
Operating Environment
|
|
|
|
|||
|
Content
|
BK-FLC1000DE
|
BK-FLC1500DE
|
BK-FLC2000DE
|
|||
|
Supply voltage
|
Single phase220V/380V, 50/60Hz AC
|
|
|
|||
|
Power consumption
|
8KW
|
9KW
|
12KW
|
|||
|
Working environment temperature
|
5℃～40℃
|
|
|
|||
|
Working environment humidity
|
≤80%
|
|
|
|||
|
Optical Parameters
|
|
|
|
|||
|
Average laser power
|
≥1000W
|
≥1500W
|
≥2000W
|
|||
|
Power instability
|
＜2%
|
|
|
|||
|
Power regulation range (%)
|
10-100 (Gradient Adjustable)
|
|
|
|||
|
Repeat frequency (kHz)
|
20-200 (Gradient Adjustable)
|
|
|
|||
|
Fiber length
|
10m
|
|
|
|||
|
Cooling mode
|
Water cooling
|
|
|
|||
|
Cleaning Head Parameters
|
|
|
|
|||
|
Scan range (length * width)
|
0mm~150mm，continuously adjustable;
|
|
|
|||
|
Scanning frequency
|
A maximum of 300Hz
|
|
|
|||
|
Field mirror focal length (mm)
|
500mm
|
|
|
|||
|
Focal depth
|
maximum 10mm
|
|
|
|||
|
Mechanical Parameters
|
|
|
|
|||
|
Machine size (Length, width and height)
|
About884mm*525mm*850mm
|
|
|
|||
|
After packing Machine size (Length, width and height)
|
About1000mm*580mm*1050mm
|
|
|
|||
|
Machine Weight
|
About90Kg
|
About100Kg
|
About130Kg
|
|||
|
After packing Machine Weight
|
About135Kg
|
About145Kg
|
About190Kg
|
|||
|
Cleaning head weight
|
＜1Kg
|
|
|
|||
|
Mode of operation
|
Handheld/automated
|
|
|
|||
Product Size
Configuration list
|
Name of name
|
Model specifications
|
Units
|
Quantity
|
|
Laser cleaning mainframe
|
BK-FLC1000DE/BK-FLC1500DE/BK-FLC2000DE
|
Table
|
1
|
|
Laser cleaning head
|
QBFX2000C
|
Sets
|
1
|
|
Process database
|
Built-in
|
Sets
|
1
|
|
Laser protective glasses
|
SD-3
|
