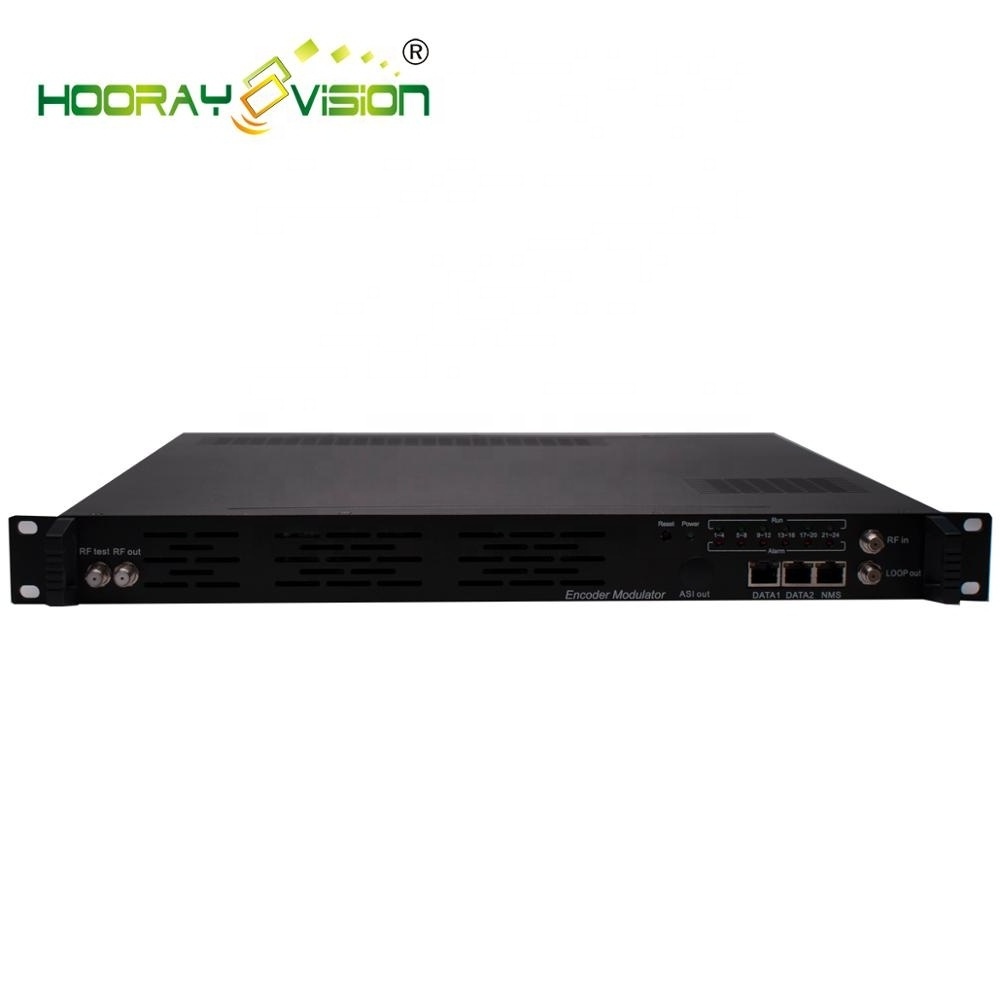

HEM-2124 hd dvb-c dvb-t encoder modulator 4 in 1 qam modulator
HEM-2124 is a professional high integration device which includes encoding, multiplexing,scrambling and modulation. It supports 4/8/12 HDinput, one DVB-C tuner input and 128 IP input with Data1 (GE) and Data2 (FE) port. It also supports DVB-C/T RF out with 4 adjacent carries, and support Data1 (GE) output port to support 4 MPTS out. This full function device makes it ideal for small CATV head end system, and it’s a smart choice for hotel TV system, entertainment system in sports bar, hospital, apartment…
Key Features
* Support QR code (Video Demo), LOGO (Video Demo), PPT (Video Demo),OSD insertion (Video Demo) for every local channel
* 4 HD input, MPEG-4 AVC/H.264 Video encoding
* 1DVB-C tuner input for re-mux (only for DVB-C RF out)
* 128 IP input over UDP and RTP protocol
* MPEG1 Layer II Audio encoding and support audio gain adjustment
* 4 groups of multiplexing/scrambling/modulation output channels
* Support 4 MPTS IP (DATA1 port only) output over UDP and RTP
* Support PID remapping/accurate PCR adjusting/PSI/SI editing and inserting
* Control via web management, and easy updates via web
* Support PID re-mapping and pass through
* Digital RF out (DVB-C/TOptional) and ASI out; IP out
* LCN (Logical Channel Number) support – for DVB-C/T/ISDB-T modulating module
* VCT (Virtual Channel Table) support – for ATSC modulating module
* Modular design, pluggable encoding modules
* LCD display, Remote control and firmware
* Web-based management;
* Lowest cost per channel
Specifications:
|
Input |
8/12/16/20/24 HDMI inputs for option 1 DVB-C(ATSC optional) Tuner for re-mux, F type interface 512 IP input over UDP and RTP, DATA1, RJ45—DVB-C RF out 256 IP input over UDP and RTP, DATA1, RJ45—DVB-T/ATSC RF out 192 IP input over UDP and RTP, DATA1, RJ45—ISDB RF out |
|||||
|
Video |
Resolution |
Input |
1920×1080_60P, 1920×1080_60i, 1920×1080_50P, 1920×1080_50i, 1280×720_60P, 1280×720_50P, 720×576_50i,720×480_60i, |
|||
|
Output |
1920×1080_30P, 1920×1080_25P, 1280×720_30P, 1280×720_25P, 720×576_25P,720×480_30P, |
|||||
|
Encoding |
MPEG-4 AVC/H.264 |
|||||
|
Bit-rate |
1Mbps~13Mbps each channel |
|||||
|
Rate Control |
CBR/VBR |
|||||
|
GOP Structure |
IP…P (P Frame adjustment, without B Frame ) |
|||||
|
Audio |
Encoding |
MPEG-1 Layer 2 |
||||
|
Sampling rate |
48KHz |
|||||
|
Resolution |
24-bit |
|||||
|
Audio Gain |
0-255 Adjustable |
|||||
|
Bit-rate |
64kbps,128Kbps,192kbps,224kbps,256kbps,320kbps,384kbps |
|||||
|
Multiplexing |
Maximum PID Remapping |
180 input per channel |
||||
|
Function |
PID remapping ( automatically or manually) |
|||||
|
Accurate PCR adjusting |
||||||
|
Generate PSI/ SI table automatically |
||||||
|
Scrambling |
Maximum simulcrypt CA |
4 |
||||
|
Standard |
ETR289, ETSI 101197, ETSI 103197 |
|||||
|
Connection |
Local/remote connection |
|||||
|
Modulation |
DVB-C |
QAM Channel |
16 non-adjacent carriers output (maximum bandwidth 192MHz) |
|||
|
Standard |
EN300 429/ITU-T J.83A/B |
|||||
|
MER |
≥40db |
|||||
|
RF frequency |
50~960MHz, 1KHz step |
|||||
|
RF output level |
-20~+10dbm (87~117 dbµV), 0.1db step |
|||||
|
Symbol Rate |
5.0Msps~7.0Msps, 1ksps stepping |
|||||
|
|
J.83A |
J.83B |
||||
|
Constellation |
16/32/64/128/256QAM |
64/256 QAM |
||||
|
Bandwidth |
8M |
6M |
||||
|
DVB-T |
Standard |
EN300744 |
||||
|
FFT mode |
2K,4K, 8K |
|||||
|
Bandwidth |
6M, 7M, 8M |
|||||
|
Constellation |
QPSK, 16QAM, 64QAM |
|||||
|
Guard Interval |
1/4, 1/8, 1/16, 1/32 |
|||||
|
FEC |
1/2, 2/3, 3/4, 5/6, 7/8 |
|||||
|
MER |
≥42 dB |
|||||
|
RF frequency |
50~960MHz, 1KHz step |
|||||
|
RF out |
8 non-adjacent carriers output (maximum bandwidth 192MHz) |
|||||
|
RF output level |
-20~ +10 dBm (87~117 dbµV), 0.1db step |
|||||
|
ATSC |
Standard |
ATSC A/53 |
||||
|
Bandwidth |
6M |
|||||
|
Constellation |
8VSB |
|||||
|
FEC |
RS(208 188)+Trellis |
|||||
|
MER |
≥40dB |
|||||
|
ACL |
-55 dBc |
|||||
|
RF frequency |
50~960MHz, 1KHz step |
|||||
|
RF out |
8 non-adjacent carriers output (maximum bandwidth 192MHz) |
|||||
|
RF output level |
-20~+10dbm (for all carriers), 0.5db stepping |
|||||
|
ISDB-T |
Standard |
ARIB STD-B31 |
||||
|
Bandwidth |
6M |
|||||
|
Constellation |
QPSK, 16QAM, 64QAM |
|||||
|
Guard Interval |
1/32, 1/16, 1/8, 1/4 |
|||||
|
Transmission Mode |
2K, 4K, 8K |
|||||
|
Code rate |
1/2, 2/3, 3/4, 5/6, 7/8 |
|||||
|
MER |
≥40dB |
|||||
|
RF frequency |
50~960MHz, 1KHz step |
|||||
|
RF out |
6 non-adjacent carriers output (maximum bandwidth 192MHz) |
|||||
|
RF output level |
-20dBm~+10dBm, 0.1dB stepping |
|||||
|
Stream output |
1 ASI output as mirror of one of RF output carriers -Optional 16 MPTS output over UDP and RTP/RTSP as mirror of 16 DVB-C carriers, 8 MPTS output over UDP and RTP/RTSP as mirror of 8 DVB-T/ATSC carriers(Optional) 6 MPTS output over UDP and RTP/RTSP as mirror of 6 ISDB-T carriers(Optional) 1*1000M Base-T Ethernet interface |
|||||
|
System function |
Network management (WEB) |
|||||
|
Chinese and English language |
||||||
|
Ethernet software upgrade |
||||||
|
Miscellaneous |
Dimension (W×L×H) |
482mm×440mm×44mm |
||||
|
Environment |
0~45 ℃ (work) ; -20~80 ℃ ( Storage ) |
|||||
|
Power requirements |
AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz |
|||||
