- Product Details
- {{item.text}}
Quick Details
-
Controller Type:
-
pmw/mppt
-
Mounting Type:
-
Ground Mounting
-
Certificate:
-
CE RoHS
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XINDUN
-
Model Number:
-
XD-solar panel kit
-
Load Power (W):
-
300w solar kit
-
Output Voltage (V):
-
5v/12v/110v/220v/230v
-
Output Frequency:
-
50hz/60hz
-
Work Time (h):
-
2~24 Hours
-
Output wave:
-
pure sine wave solar kit
-
Color:
-
white or customized solar kit
-
Material:
-
Aluminum Alloy
-
Protection:
-
Short Circuit Protection,overcharge
-
Function:
-
With Radio MP3 function
-
Usage:
-
Emergency Lighting,camping
-
Keyword:
-
solar lighting system for indoor
-
Product name:
-

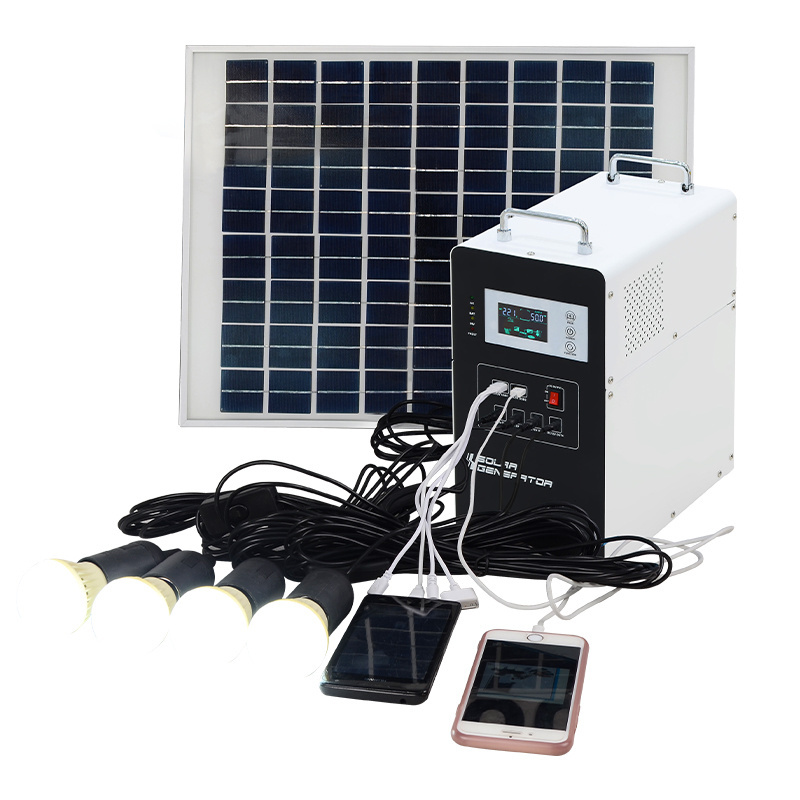

Portable Mini Solar Power Kit energy
Quick Details
-
Application:
-
Home
-
Solar Panel Type:
-
Monocrystalline Silicon
-
Battery Type:
-
Lead-Acid, Lithium Ion
-
Controller Type:
-
pmw/mppt
-
Mounting Type:
-
Ground Mounting
-
Certificate:
-
CE RoHS
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XINDUN
-
Model Number:
-
XD-solar panel kit
-
Load Power (W):
-
300w solar kit
-
Output Voltage (V):
-
5v/12v/110v/220v/230v
-
Output Frequency:
-
50hz/60hz
-
Work Time (h):
-
2~24 Hours
-
Output wave:
-
pure sine wave solar kit
-
Color:
-
white or customized solar kit
-
Material:
-
Aluminum Alloy
-
Protection:
-
Short Circuit Protection,overcharge
-
Function:
-
With Radio MP3 function
-
Usage:
-
Emergency Lighting,camping
-
Keyword:
-
solar lighting system for indoor
-
Product name:
-
Portable Mini Solar Power Kit energy
Feature
1. Portable mini solar kit power 300W.
2. Integrated Chassis: 5V/12V output.
3. Suitable for charging all types of mobile phones
4. Solar independent power supply.
5. High photoelectric conversion efficiency.
6. Built-in maintenance-free battery, safe and reliable.
7. Optional AC adapter for charging battery.
8. Multi-protections(charging/discharging and etc).
9. Mp3 player, radio fuction.
2. Integrated Chassis: 5V/12V output.
3. Suitable for charging all types of mobile phones
4. Solar independent power supply.
5. High photoelectric conversion efficiency.
6. Built-in maintenance-free battery, safe and reliable.
7. Optional AC adapter for charging battery.
8. Multi-protections(charging/discharging and etc).
9. Mp3 player, radio fuction.
Product Description
Specification
|
Specification
|
|
|
|
|
||||
|
Model : ESS
|
|
301P
|
501P
|
102P
|
||||
|
Capacity
|
Rated power
|
300W
|
500W
|
1000W
|
||||
|
|
Peak power(20ms)
|
900VA
|
1500VA
|
3000VA
|
||||
|
Input
|
Stardard battery voltage
|
12VDC
|
|
|
||||
|
|
AC input voltage range
|
73~138VAC(110VAC)/83~148VAC(120VAC)/145~275VAC(220VAC)/ 155~285VAC(230VAC)/165~295VAC(240VAC)
|
|
|
||||
|
|
AC input frequency range
|
45Hz~55Hz(50Hz);55Hz~65Hz(60Hz)
|
|
|
||||
|
Output
|
Conversion efficiency
|
≥85%(Battery mode); >99%(AC mode)
|
|
|
||||
|
|
AC Output voltage
|
110VAC±2% / 120VAC±2% / 220VAC±2% / 230VAC±2%/ 240VAC±2%(Battery mode); 110VAC±10% / 120VAC±10% / 220VAC±10% / 230VAC±10% /
240VAC±10%(AC mode) |
|
|
||||
|
|
AC Output frequency
|
50/60Hz±1%(Battery mode); Tracking Automatically(AC mode)
|
|
|
||||
|
|
AC Output waveform
|
Pure Sine Wave
|
|
|
||||
|
|
THD
|
≤3%(Linear load)
|
|
|
||||
|
|
DC Output voltage
|
4*DC 12V; 2*USB(5V)
|
|
|
||||
|
AC charger
|
AC charging current
|
0~30A(Depends on model)
|
|
|
||||
|
|
AC charging method
|
Three-stage(constant current, constant voltage, floating charge)
|
|
|
||||
|
solar charger (Optional)
|
Charging mode
|
PWM
|
|
|
||||
|
|
Max PV input voltage(Voc)
(At the lowest temperature) |
50V
|
|
|
||||
|
|
PV input voltage range
|
15V~44V
|
|
|
||||
|
|
Charge & discharge current
|
20A
|
|
40A
|
||||
|
|
Max PV input power
|
280W
|
|
560W
|
||||
|
Inbuilt battery
|
Capacity
|
1*50AH
|
|
1*100AH
|
||||
|
|
Battery size(LxWxH)/pcs
|
229*138*210(228)
|
|
407*174*210(240)
|
||||
|
Other
|
Transfer time
|
≤4ms
|
|
|
||||
|
|
Protection
|
with over-voltage, low-voltage, overload, short circuit, high tempreature protections
|
|
|
||||
|
|
Display
|
LCD & LED
|
|
|
||||
|
|
Cooling way
|
Cooling fan in intelligent control
|
|
|
||||
|
|
Communication(Optional)
|
RS485/APP(WIFI monitoring or GPRS monitoring)(Models below 1000W (including 1000W) are not supported)
|
|
|
||||
|
Working mode
(selectable) |
d1
|
AC priority mode
|
|
|
||||
|
|
d2
|
ECO mode
|
|
|
||||
|
|
d3
|
Solar priority mode
|
|
|
||||
|
Work
environment |
Operating temperature
|
-10℃~40℃
|
|
|
||||
|
|
Storage temperature
|
-15℃~60℃
|
|
|
||||
|
|
Elevation
|
2000m(More than derating)
|
|
|
||||
|
|
Humidity
|
0%~95% ,No condensation
|
|
|
||||
|
Physical
|
Dimention L x W x H(mm)
|
358*192*390
|
|
488*232*450
|
||||
|
|
Net weight(kg)(without battery)
|
8
|
10
|
16
|
||||
|
Packing
|
Dimention L x W x H(mm)
|
400*252*500
|
|
550*295*625
|
||||
|
|
Gross weight(kg)(without battery)
|
11
|
13
|
21
|
||||
|
|
Quantity/CTN
|
1pcs per wooden case
|
|
|
||||
Accessories
Application
Packing & Delivery
Package
Carton Box for packaging, or Wooden Box advised for Samples to protect in transportations.
Shipping
1. Fedex/ DHL/ TNT/ UPS for samples, door-to-door.
2. By air or by sea for batch goods, for CFL, Air port/ Port receiving.
3. Customers specifying freight forwarders or negotiable shipping methords.
4. Delivery time: 7 days for samples; 10 to 25 days for batch goods.
Carton Box for packaging, or Wooden Box advised for Samples to protect in transportations.
Shipping
1. Fedex/ DHL/ TNT/ UPS for samples, door-to-door.
2. By air or by sea for batch goods, for CFL, Air port/ Port receiving.
3. Customers specifying freight forwarders or negotiable shipping methords.
4. Delivery time: 7 days for samples; 10 to 25 days for batch goods.
|
Payment
|
|
|
||
|
T/T
|
EXW
|
30% T/T in advance, balance paid before dispatch
|
||
|
|
FOB
|
|
||
|
|
CNF(CFR)
|
30% T/T in advance, balance paid against copy of B/L
|
||
|
|
CIF
|
|
||
|
L/C, D/A, D/P, Money Gram, Western Union, Paypal (Optional)
|
|
|
||
