Quick Details
-
Brand Name:
-
FEELWORLD
-
Place of Origin:
-
Fujian, China
-
Product Name:
-
high brightness lcd monitor
-
Backlight:
-
LED
-
Viewing Angle:
-
85°/85°(L/R) 80°/80°(U/D)
-
Input Voltage:
-
DC12V
-
Power Consumption:
-
≤32W
-
Operating Temperature:
-
-20℃~60℃
-
Unit Size:
-
550Lx301.6Hx34D (mm)
-
Unit Weight:
-
4.3kg
Quick Details
-
Brightness:
-
1000cd/m
-
Contrast Ratio:
-
1000:1
-
Panel Type:
-
TFT
-
Brand Name:
-
FEELWORLD
-
Place of Origin:
-
Fujian, China
-
Product Name:
-
high brightness lcd monitor
-
Backlight:
-
LED
-
Viewing Angle:
-
85°/85°(L/R) 80°/80°(U/D)
-
Input Voltage:
-
DC12V
-
Power Consumption:
-
≤32W
-
Operating Temperature:
-
-20℃~60℃
-
Unit Size:
-
550Lx301.6Hx34D (mm)
-
Unit Weight:
-
4.3kg

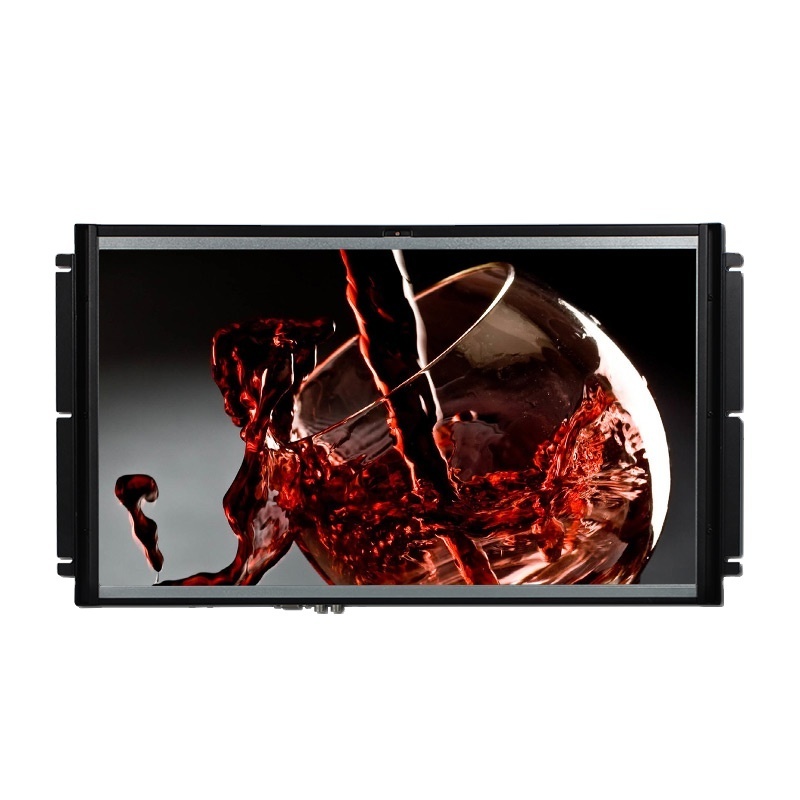

1000cd/m high brightness lcd monitor 21." SKD 16:9 Open Metal Frame Touch Screen display DVI HDMI
. Auto Light Sensor
. 21.5" Sunlight Readable 1000cd/m²
. Wide Temperature
. Rugged Industrial Design
. VESA Mounting
. Customization Services
1. FEELWORLD's Open Frame LCD display is designed for commercial and industrial applications
2. Auto Light Sensor, high brightness 1000cd/m² for sunlight readable .
3. Features wide operating temperature, high brightness,
4. Touch screen optional
5. VGA, DVI, HDMI, AV, YPbPr, S-Video, BNC etc multiple inputs/outputs optional
6. Customized mechanical design; fulfill the demand for extreme environments.
7. It offers the best visibility, performance and cost effective value.
8. The high level of brightness together with fast response time and LED backlight technology,
9. the monitor brings remarkable display quality, and guaranteeing product life cycle longevity, stability, and reliability.
21.5 inch Light Sensor
High brightness1000cd/m2
| Specification | |
| Description | 1000cd/m high brightness lcd monitor 21.5" SKD 16:9 Open Metal Frame Touch Screen display DVI HDMI |
| Model | P215-9AHT ( (touchscreen optional) |
| Display Spec. | |
| Size | 21.5" |
| Color Depth | 16.7M |
| Display Mode | TN Mode, Normally White |
| Resolution | 1920×1080 pixels |
| Pixel Pitch | 0.24825×0.24825 mm |
| Aspect Ratio | 16:9 |
| Brightness | 1000cd/m2 (Light Sensor) |
| Contrast Ratio | 1000:1 |
| Backlight | LED |
| Response Time | 5ms |
| Viewing Angle | 85°/85°(L/R) 80°/80°(U/D) |
| Input | |
| P215-9AHDT: HDMI, DVI, VGA, YPbPr, Video, Audio in, Aduio out, USB for touch | |
| P215-9AHT: Audio out, Audio in, HDMI, VGA, AV1, AV2 | |
| P215-9AT: VGA, S-video, Video, Audio R/L in, Audio in, Audio out, USB for touch | |
| General | |
| Input Voltage | DC12V |
| Power Consumption | ≤32W |
| Operating Temperature | -20℃~60℃ |
| Storage Temperature | -30℃~70℃ |
| Relative Humidity | 5(%RH)~90(%RH) |
| Unit Size | 550L×301.6H×34D (mm) |
| Unit Weight | 4.3kg |
| Advanced Features | |
|
*With ambient light sensor, auto dimming, reducing light pollution and energy saving.
(1000cd/m2 under sunlight, 500cd/m2 during normally day, 200cd/m2 at night.) |
|
| *Adopt high-bright LCD panel, excellent visibility in outdoor strong light. | |
| *Rugged Industrial Desig metal housing, high perspective glass with and anti-glare. | |
| *Custom-made service is available. | |
We’re able to design and adjust both hardware and software to match your cost and application requirement. Screen Size Optional, and the interface optional.
Outline Dimension for Main Parts
As a leading manufacturer of SKD LCD Module, Industrial Touch Screen Monitors and Open Frame Monitors, FEELWORLD supports industrial, military and marine customers worldwide with advanced technological visual imaging and computing systems for use throughout applications such as Pulp/Paper, Mining, Petrochemical, Avionics, Maritime, Mission Critical Military, Oil & Gas, Energy, Food & Beverage Processing/Packaging, Metals, Transportation, Medical and others.
