Quick Details
-
Brand:
-
HT
-
Packaging:
-
100PCS or customized
-
Description:
-

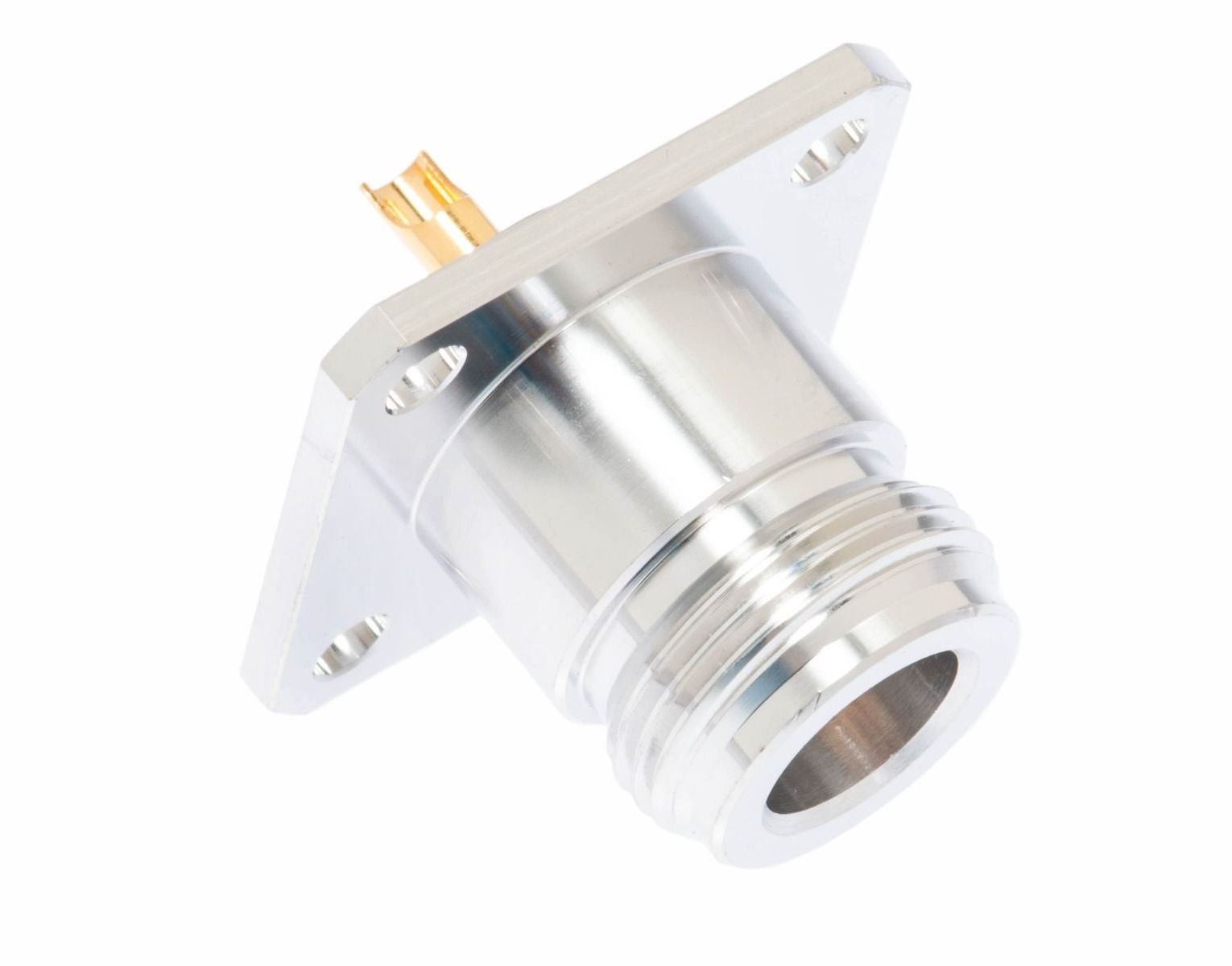

N Female 4 hole Chassis Mount Connector
-
Code No.:
-
HT8377
-
Model No.:
-
N-50KF
-
Item Name:
-
N female chassis mount connector
-
Shape:
-
Flange
-
Package:
-
Polybag
-
Application:
-
RF
-
Cerification:
-
RoHs
Quick Details
-
Type:
-
Jack
-
Model Number:
-
HT8377
-
Place of Origin:
-
Jiangsu, China
-
Brand:
-
HT
-
Packaging:
-
100PCS or customized
-
Description:
-
N Female 4 hole Chassis Mount Connector
-
Code No.:
-
HT8377
-
Model No.:
-
N-50KF
-
Item Name:
-
N female chassis mount connector
-
Shape:
-
Flange
-
Package:
-
Polybag
-
Application:
-
RF
-
Cerification:
-
RoHs
Product Description
|
Product Name
|
N female chassis mount solder Connector
|
|
Material
|
brass
|
|
Finishing
|
Nickel Plated
|
|
Standard
|
IEC 169-16 & MIL-C-39012
|
|
Style
|
Square Flange
|
|
Used
|
Communication Systems, RF Microwave, etc.
|
Products Show
Material & Plating
|
Item
|
Part
|
Material
|
Plating
|
Remark
|
|
1
|
Shelll
|
Brass
|
Nickel
|
|
|
2
|
Body
|
Brass
|
Nickel
|
|
|
3
|
Center Contacts
|
Phosphor bronze Beryllium copper
|
Gold or Silver
|
|
|
4
|
Insulator
|
PP/ PTFE
|
Natural
|
|
|
5
|
Gasket
|
Steel
|
Natural
|
|
|
6
|
Washer
|
silica gel
|
Red
|
|
|
7
|
Ferrule
|
Brass
|
Nickel
|
|
Performance
|
Temp range
|
-55 ~ +155℃
-40 ~ +85℃ PE
|
Contact resistance
|
Center conductor ≤ 10mΩ
Outer conductor
≤ 2.5mΩ
|
|
Frequency range
|
0~11 GHz
|
VSWR
|
Straight 0~1GHz ≤1.15 ＞1~11GHz≤1.30
Angle ≤ 0~9GH ≤1.35 ＞9~11GHz≤1.50
|
|
Center conductor withdrawal force
|
≥0.56N
|
Insulation resistance
|
≥5000MΩ
|
|
Withstand voltage
|
2500V(rms)
|
Impedance
|
50/75 Ω
|
|
Shock
|
500m/S2
|
Durability
|
500 Cycles
|
What is the "N" Connector
INTERFACE DIMENSIONS (mm）
