Quick Details
-
IP video input:
-
8CH
-
Video Compression:
-
H.265+/H.265/H.264+/H.264
-
decoding capacity:
-
Up to 1-ch@8 MP/5-ch@1080p
-
incoming bandwidth:
-
Up to 160 Mbps
-
IP camera inputs:
-
Up to 16-ch
-
Power supply:
-
48 VDC, 2.5 A
-
SATA:
-
2 SATA interfaces
-
Power:
-
≤ 80 W
-
Working temperature:
-
-10 °C to 55 °C (14 °F to 131 °F)
-
Capacity:
-
Up to 8 TB capacity for each disk
Quick Details
-
Place of Origin:
-
Guangdong, China
-

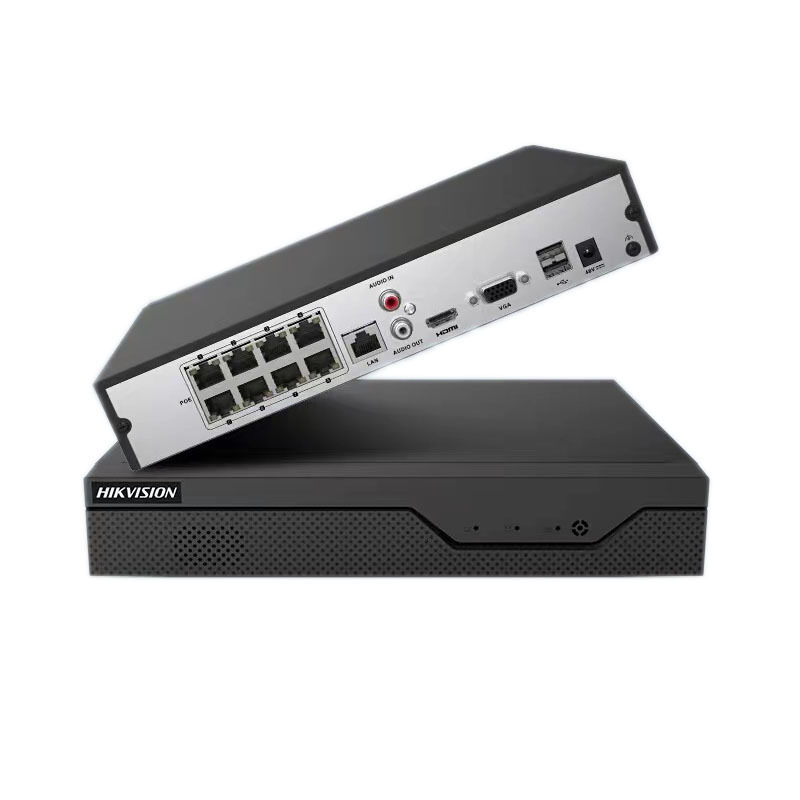

Brand Name:
-
HIKVISION
-
Model Number:
-
DS-7808N-K1/8P
-
IP video input:
-
8CH
-
Video Compression:
-
H.265+/H.265/H.264+/H.264
-
decoding capacity:
-
Up to 1-ch@8 MP/5-ch@1080p
-
incoming bandwidth:
-
Up to 160 Mbps
-
IP camera inputs:
-
Up to 16-ch
-
Power supply:
-
48 VDC, 2.5 A
-
SATA:
-
2 SATA interfaces
-
Power:
-
≤ 80 W
-
Working temperature:
-
-10 °C to 55 °C (14 °F to 131 °F)
-
Capacity:
-
Up to 8 TB capacity for each disk
Products Description
|
|
DS-7804N-K1/C(D)
|
DS-7808N-K1/C(D)
|
DS-7816N-K1/C(D)
|
||
|
Number of video access channels
|
4
|
8
|
16
|
||
|
Network input bandwidth
|
40Mbps
|
80Mbps
|
160Mbps
|
||
|
Network output bandwidth
|
80Mbps
|
|
|
||
|
Recording resolution
|
6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
|
|
|
||
|
Total input/output bandwidth
|
40Mbps/80Mbps
|
80Mbps/80Mbps
|
160Mbps/80Mbps
|
||
|
Video output
|
1 channel HDMI, 1 channel VGA
|
|
|
||
|
HDMI output
|
1920×1080/60Hz ，1600×1200/60Hz ，1280×1024/60Hz ，1280×720/60Hz
|
|
|
||
|
VGA output
|
1920×1080/60Hz ，1280×1024/60Hz ，1280×720/60Hz
|
|
|
||
|
Video decoding format
|
H.265,H.264,Smart264和Smart265
|
|
|
||
|
Decoding ability
|
6 x 1080P
|
|
|
||
|
Synchronous playback
|
4
|
8
|
16
|
||
|
Audio output
|
1 channel, RCA interface (linear level, impedance: 1K Ω)
|
|
|
||
|
Voice intercom input
|
1 RCA interface (level: 2.0Vp-p, impedance: 1K Ω)
|
|
|
||
|
Disk position
|
1 SATA interface
|
|
|
||
|
Single disk capacity
|
Supports up to 8TB
|
|
|
||
|
network interface
|
1, RJ45 10M/100M adaptive Ethernet port
1个，RJ45 10M/100M/1000M 自适应以太网口 |
|
|
||
|
USB interface
|
2 USB 2.0 (rear)
|
|
|
||
|
Power consumption (excluding hard drives)
|
≤10W
|
|
|
||
|
working temperature
|
-10℃ ~+55℃
|
|
|
||
|
Working humidity
|
Work: 10% -90% RH (no icing or condensation), Storage: 5% -90% RH (no icing or condensation)
|
|
|
||
|
chassis
|
1U 260 chassis
|
|
|
||
|
size
|
265mm×225mm×48mm
|
|
|
||
|
Weight (excluding hard drive)
|
≤0.8kg
|
|
|
||
