- Product Details
- {{item.text}}
Quick Details
-
Power:
-
1540 W
-
Dimension(L*W*H):
-
72*53*39 cm
-
Weight:
-
22 KG
-
Warranty:
-
1 Year
-
Condenser Module:
-
Vertical Coil Condenser
-
Lift Mechanism:
-
Automatic Lifting
-
Lift Distance:
-
250 mm
-
Heating Power:
-
1500 W
-
Motor:
-
AC brushless motor
-
Water/Oil Bath Temperature:
-
RT~99℃ / RT~400℃
-
Rotation Speed:
-
20 ~ 195 RPM
-
Sealing Method:
-
PTFE Sealing
-
Temperature Sensor:
-
PT100
-
Heating Bath Material:
-
PTFE Composite Material
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Shanghai HJLab
-
Voltage:
-
110V/220V
-
Power:
-
1540 W
-
Dimension(L*W*H):
-
72*53*39 cm
-
Weight:
-
22 KG
-
Warranty:
-
1 Year
-
Condenser Module:
-
Vertical Coil Condenser
-
Lift Mechanism:
-
Automatic Lifting
-
Lift Distance:
-
250 mm
-
Heating Power:
-
1500 W
-
Motor:
-
AC brushless motor
-
Water/Oil Bath Temperature:
-
RT~99℃ / RT~400℃
-
Rotation Speed:
-
20 ~ 195 RPM
-
Sealing Method:
-
PTFE Sealing
-
Temperature Sensor:
-
PT100
-
Heating Bath Material:
-
PTFE Composite Material
Product Description

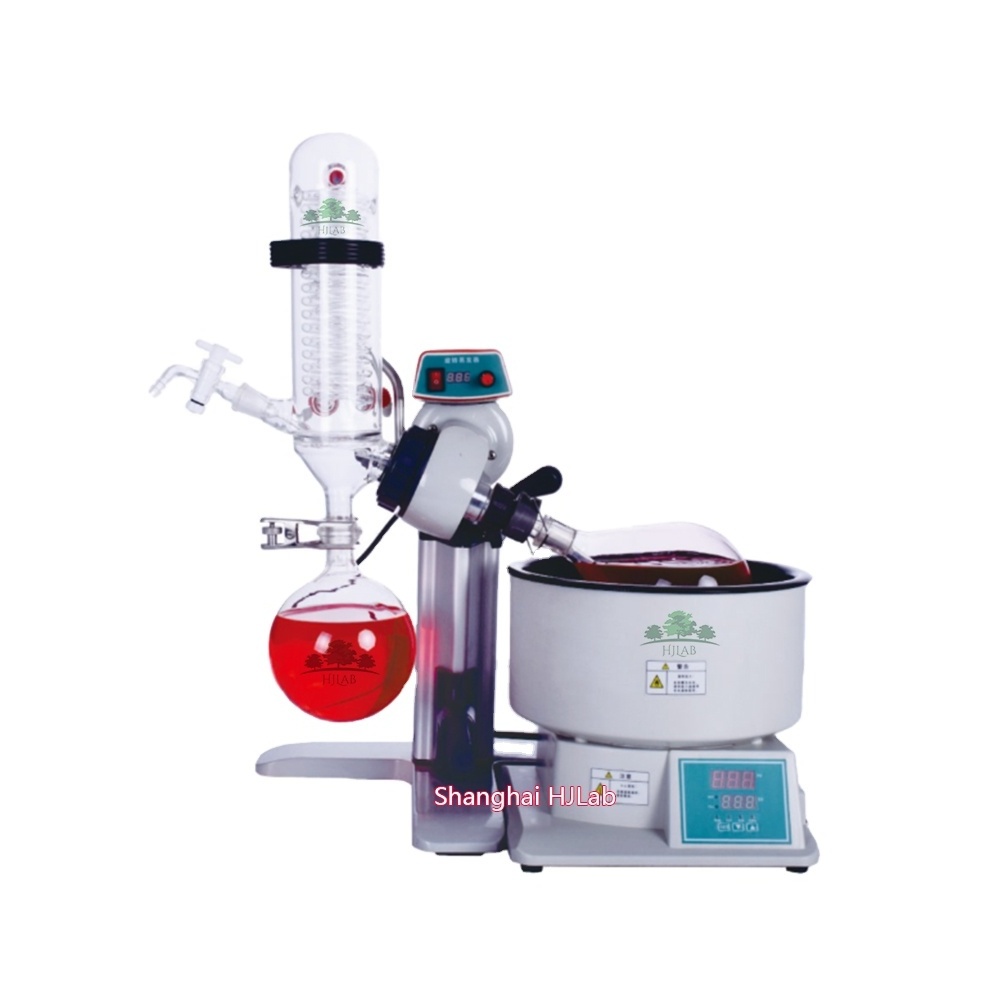

Lab 0.5L 1L 2L Rotary Evaporator with Vacuum Pump and Chiller
HJLab series rotary evaporators come with a modular heating bath, vertical glassware, and digital temperature/rotation control. Its optimized bath volume allows for rapid heat-up times. The condenser unit has specially designed glass tubes that utilize surface area extremely efficiently. That’s why our SolventVap evaporators consistently deliver reliable and reproducible process results that are usually reserved for more costly systems. Another important aspect of the SolventVap is the safety features, which includes dry-run protection, water bath over-temperature shut-off protection, and fuse protection.
|
Features
|
|
|
|
|
||||
|
Certification
|
CE
|
|
|
|
||||
|
Seals
|
Solvent-resistant PTFE and Viton gaskets ensuring long time operation
|
|
|
|
||||
|
Modular Design
|
Modular design (individual rotary and water bath modules) for easy future upgrades
|
|
|
|
||||
|
Motor
|
Specialized motor with extremely compact, intermeshed worm and worm gear provides precise driving for very quiet, vibration-free
operation |
|
|
|
||||
|
Multi-Level Lift
|
Easy multi-level manual lift with secure lock for the evaporating flask
|
|
|
|
||||
|
Visual Operation
|
Easy, straight-forward visual operation with digital speed and temperature and real-time vacuum level display
|
|
|
|
||||
|
Temperature Controller
|
PID temperature controller ensures accurate temperature control is maintained
|
|
|
|
||||
|
Specifications
|
|
|
|
Electrical Requirements
|
110V 60Hz single phase, 9.8A, 1075 watts
(heater: 1050 watts, rotation motor: 25 watts) |
|
|
Glass Material
|
High Borosilicate Glass 3.3
|
|
|
Evaporating Flask
|
Capacity:
0.13 gallon (0.5L)
0.26 gallon (1L)
0.53 gallon (2L)
Maximum load: Not to exceed 60% of the flask's capacity Rotation speed: 10 to 180 rpm Evaporating speed: 20 ml per minute Lifting: weight balancing manual control with lock Max lifting distance: 4 inches (extendable to 10 inches) |
|
|
Receiving Flask
|
0.26 gallon (1L)
|
|
|
Condenser
|
Glassware: Vertical with dual-spiral glass tubing
Chilling fluid connection: 3/8" hose barb x 2 Vacuum connection: 3/8" hose barb x 1 Condensing surface: 1,260 cm2 or 1.4 sq ft |
|
|
Water Bath
|
Temperature range: ambient to 99°C (210°F)
Temperature controller: digital Capacity: 2 gallons Material: stainless steel Dimensions: 10" diameter x 5" depth x 9.75" height Media: distilled water only Max. water level: not to exceed 1" from the top rim of the bath Number of heaters: one |
|
|
Vacuum
|
Vacuum Level: < 3 torrs
Vacuum Sealing: PTFE + Viton Gaskets
Vacuum Connection: 3/8" hose barb x 1 (on condenser)
|
|
|
Safety
|
Dry-Run, Over-Temp shut-off, built-in circuit breakers
|
|
|
Unit/shipping dimensions
|
22 x 12.5 x 26" / 24 x 24 x 25" (WxDxH)
|
|
Turnkey Rotary Evaporator with Chiller and Pump
|
Recirculating Chiller
|
Electrical Requirements: 110V/220V 50~60Hz, 1-Phase
Cooling Capacity: @10°C: 1000W, @0°C: 970W, @-10°C: 620W, @-15°C: 510W Compressor: Secop(known as Danfoss), R404A Recirculating Pump: Centrifugal Pump, 50 Watts, 20L/Min, 1 meter Reservoir Capacity: 4 liters Safety: Compressor over-temp protection, delay-start, over-current, short circuit and ground protection |
|
|
|
|||
|
Vacuum Pump
|
Oil-free, corrosion resistant, reliable
All major valves and parts made of PTFE, ideal for chemical-related operation No oil changes, no cold trap required for water/alcohol solutions Pumping Speed: 20L/Min Flow Rate: 60L/Min Tank Capacity: 15L Power: 180W |
|
|
|
|||
Product Detail
|
Shanghai HJLab Glass Quality Criteria
|
|
|
|
|||
|
High-quality glass
|
Inert industrial glass(borosilicate 3.3, ISO3585), resistant to chemicals, little dulling from contact with acids and alkalis.
|
|
|
|||
|
Generous wall thickness
|
Uniform thickness, also at the base, hence fewer breakages.
|
|
|
|||
|
Resistant to temperature changes of 200°C
|
Heat-resistant, suitable also for oil baths, no thermal bursting
|
|
|
|||
|
Exactly centred flanged screw couplings
|
No loss of vacuum, no untrue running of evaporating flasks, no splashing in the heating bath
|
|
|
|||
|
Closed surface
|
No sticking of substances, no entrainment, easy cleaning
|
|
|
|||
Our Service
Pre-Sales Services
Delivery Services
1) We can arrange the delivery to your specify location which saving your energy andexpensive time.
2) By Air and By Sea
3) Any broken during transportation will be FedEx to you For Free.
2) By Air and By Sea
3) Any broken during transportation will be FedEx to you For Free.
Inspection Service (Bureau Veritas)
1)
Third-party for in-depth post-production product inspection
2) On-Site Check
3) Workman Check
4) Function Check
5) Contract Product Quality
6) Conformity Check
7) Quantity Verification
2) On-Site Check
3) Workman Check
4) Function Check
5) Contract Product Quality
6) Conformity Check
7) Quantity Verification
Payment Service
1) Visa, MasterCard, e-Checking
2) TradeAssurance (Covers all payment made during the ordering process up to 30 daysafter you receive the goods)
3) BuyNow and Pay Later
4) T/T(30% Advance payment and 70% Balance)
2) TradeAssurance (Covers all payment made during the ordering process up to 30 daysafter you receive the goods)
3) BuyNow and Pay Later
4) T/T(30% Advance payment and 70% Balance)
After-Sales Service
1) 1 Year Warranty
2) Free Spare Parts except the glasswares and sealings
3) On-Site Installation / Maintenance
2) Free Spare Parts except the glasswares and sealings
3) On-Site Installation / Maintenance
Our Company
Shanghai HJLab Instruments is one professional Chinese manufacturer of lab and pilot apparatus applied in biochemical, pharmaceutical, fine chemical and research field.
Main products are Rotary Evaporators, Glass Rectors and complementary Vacuum Pumps, Heating/Cooling Circulators, etc.
With nearly 10 years development, HJLab accumulated rich customer groups and huge amount of application experiences; Brand has won wide market recognition on reliable technology, low repair rate, sincere service and strong customization ability.
We work during out of our regular working hours (9AM to 6PM Beijing Time).
"Good quality, Reasonable price, Punctual delivery, Sincere service" is our company's commitment to you.
So Please feel free to give us a call or drop us a message, and you will be our next story of success.
