Quick Details
-
Brand Name:
-
Zilang
-
Model Number:
-
PS01B
-
Max. Current:
-
16A
-
Max. Working Pressure:
-
650PSI
-
Product name:
-
Water pump controller
-
Max power:
-
1.1KW
-
Starting pressure:
-
1.0-4.0 bar
-
Permissible Max pressure:
-
10bar
-
Thread interface:
-
G 1.0"External thread
-
Wide amplitude voltage:
-
85-265V
-
Frequency:
-
50/60HZ
-
Max medium temperature:
-
0-60°C
-
Protection grade:
-
IP65
-
Color:
-
Purple Yellow Orange Blue Green
Quick Details
-
Whether the smart:
-
Yes
-
Max. Voltage:
-
265V
-
Place of Origin:
-
Zhejiang
-
Brand Name:
-
Zilang
-
Model Number:
-
PS01B
-
Max. Current:
-
16A
-
Max. Working Pressure:
-
650PSI
-
Product name:
-
Water pump controller
-
Max power:
-
1.1KW
-
Starting pressure:
-
1.0-4.0 bar
-
Permissible Max pressure:
-
10bar
-
Thread interface:
-
G 1.0"External thread
-
Wide amplitude voltage:
-
85-265V
-
Frequency:
-
50/60HZ
-
Max medium temperature:
-
0-60°C
-
Protection grade:
-
IP65
-
Color:
-
Purple Yellow Orange Blue Green
Product Description

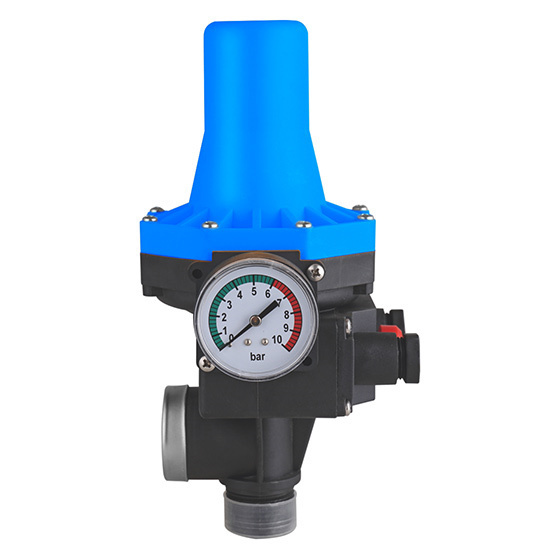

Custom Design PS01B type BLUE Digital Pressure Gauge pressure switch 1.1KW 10bar automatic water pump controller
Product Parameter
Product features:
1.Electronic pressure switch for water system
2.Turn the pump on accordingly when the pressure is low(tap turned on)or turn the pump off accordingly when the flow stops(tap turned off) under the pump pressure standard
3.Replace the traditional pump control system composed of pressure switch pressure tank check valve, etc
4.Water pump can be automatically stopped when water is scarce
5. It can be configured according to user requirements.
6.Application: self-priming.jet pump garden pump clean water pump etc
The product description:
1.Full LED state display headlights flow indicator/low pressure indicator/water shortage indicator state can be seen
2.Flow control mode: Flow double control start and top pressure switch control start
3.Pressure contro mode:Start pressure value control startand stop.long press the start button for5seconds to switch(water shortage indicator is steady on as pressure mode)
4. Water shortage protection:When the inlet water source has no water,the pressure in the tube is less than the starting value and there is no flow it will enter the protection state of
water shortage and shutdown after 8 seconds
5.Anti-iam machine function: If the pump do not use for 24 hours.will run 5 seconds around in case the motor impeller rust stuck
6. Mounting angle: Unlimited,can be installed at any angle
