Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Jupiter
-
Model Number:
-
GIM8115-6
-
Torque:
-
customizable
-
Product Name:
-
Electric Motor
-
Application:
-
Automatic Product
-
Motor type:
-
PMDC Brushed Motor
-
Keywords:
-
High Torque Gear Motor
-
Rated Voltage:
-
12VDC-48VDC
-
Certification:
-
CCC CE
-
Typical Applications:
-
Robotic Equipment
-
Input Voltage:
-
12v/24v/36v/48vdc
-
Noise:
-
Low Noise Level
-
Gear Material:
-
Metal Gear
Quick Details
-
Speed(RPM):
-
customizable
-
Continuous Current(A):
-
customizable
-
Efficiency:
-
IE 1
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Jupiter
-
Model Number:
-
GIM8115-6
-
Torque:
-
customizable
-
Product Name:
-
Electric Motor
-
Application:
-
Automatic Product
-
Motor type:
-
PMDC Brushed Motor
-
Keywords:
-
High Torque Gear Motor
-
Rated Voltage:
-
12VDC-48VDC
-
Certification:
-
CCC CE
-
Typical Applications:
-
Robotic Equipment
-
Input Voltage:
-
12v/24v/36v/48vdc
-
Noise:
-
Low Noise Level
-
Gear Material:
-
Metal Gear
Products Description

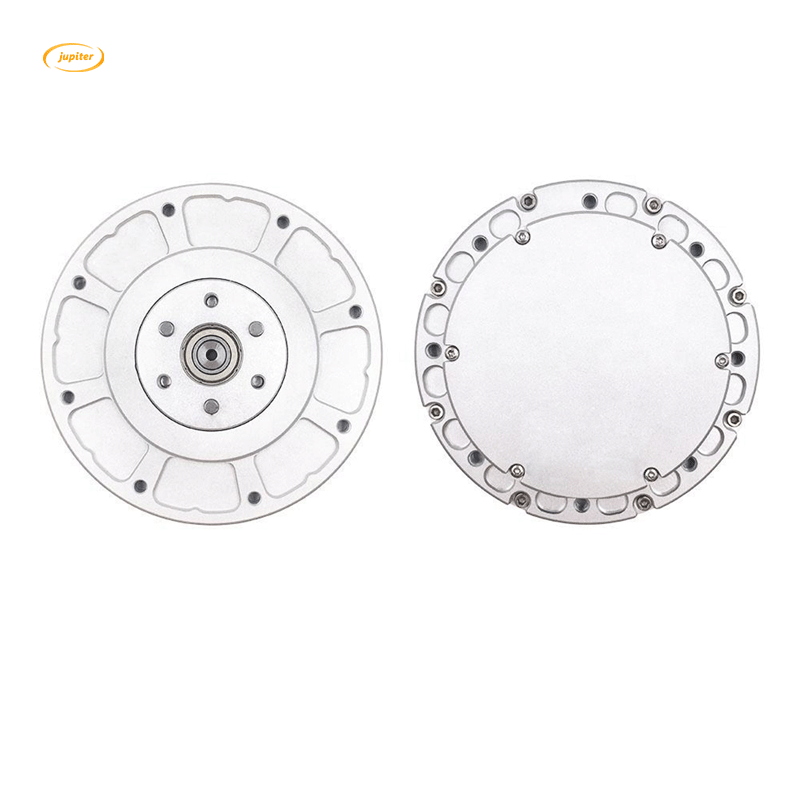

Jupiter Support Customizable Product 12-48V Mit High Torque Brushless Gear Exoskeleton Motor for Robot Built-in Drive
|
细节参数（detailed parameters）
|
|
|
|
产品型号（Model）
|
GIM8115-6
|
|
|
额定电压(Nominal Voltaqe)
|
24V
|
|
|
电压范围(Oltage Range)
|
36V-48V
|
|
|
功率（Power）
|
160W
|
|
|
额定扭矩(Rated Torque)
|
9N.M
|
|
|
堵转扭矩(Stall Torgue)
|
25N.M
|
|
|
减速后额定转速(Nominal Speed After Reduce)
|
180RPM
|
|
|
减速后最大转速(Max Speed After Reduce)
|
380RPM
|
|
|
额定电流(Nominal Current)
|
5A
|
|
|
堵转电流(Stall Current)
|
20A
|
|
|
相间电阻(Phase to Phase Resitance)
|
0.43Ω
|
|
|
相间电感（Phase to Phase Inductance)
|
0.27mH
|
|
|
转速常数(Speed Constant)
|
50 Rpm/v
|
|
|
扭矩常数（Torque Constant)
|
0.28NM/A
|
|
|
转子惯量(Rotor Inertia)
|
1200 gcm'2
|
|
|
极对数（Number Of Pole Pairs)
|
21Pairs
|
|
|
减速比（Gear Rate)
|
6:1
|
|
|
减速器类型(Gear Type)
|
Planetary
|
|
|
减速器齿轮材料(Reducer Qear Material)
|
STELL
|
|
|
减速器齿轮背隙(Reducer Qear Backlash)
|
<5 arcmin
|
|
|
电机重量不带驱动(Motor Weight Without Driver)
|
660g
|
|
|
电机重量带驱动(Motor Weight With Driver)
|
705g
|
|
|
电机尺寸不带驱动(Size Without Drver)
|
96*41mm
|
|
|
电机尺寸带驱动(Size With Driver)
|
96*48.5mm
|
|
|
轴向最大负数(Max Axial Load)
|
800N
|
|
|
径向最大负数(Max Radial Load)
|
900N
|
|
|
噪音(Noise)
|
<65dB
|
|
