Quick Details
-
Model Number:
-
XCX-6006
-
Name:
-

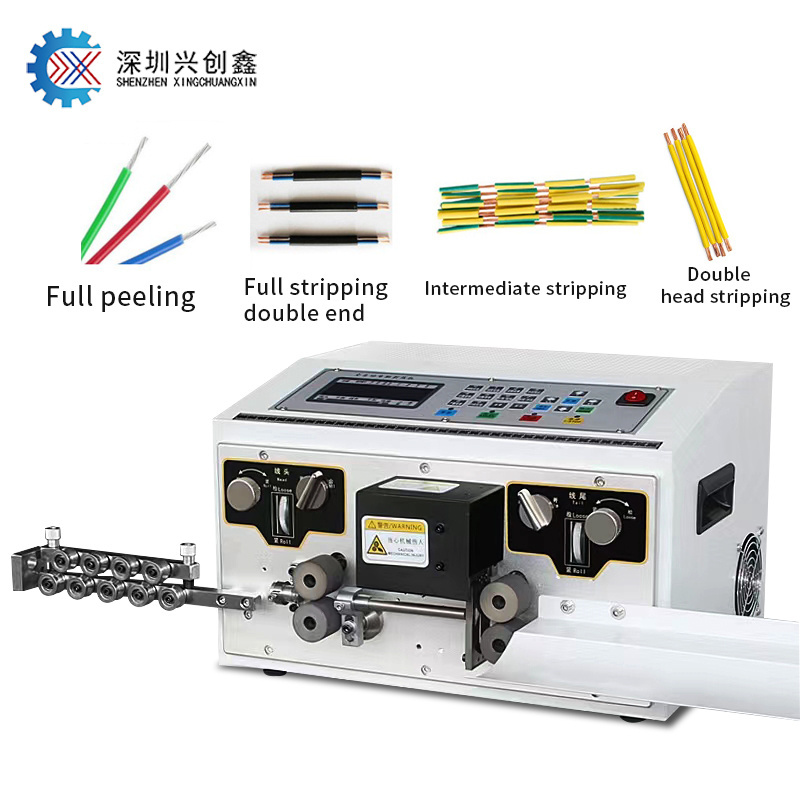

Computer wire cutting and peeling machine
-
Yield:
-
11600 pcs per hour
-
Blade material:
-
Tungsten steel/imported high speed steel
-
Peeling length:
-
Front 0-25mm, rear 0-80mm
-
Catheter inner diameter:
-
3~6mm
-
Display method:
-
English LCD display
-
Weight:
-
33
-
Dimension:
-
400*300*330mm
-
Middle peeling:
-
15
-
Power supply:
-
220V/50Hz 110V/60Hz
Quick Details
-
Use:
-
Wire stripping and cutting
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Xingchuangxin
-
Model Number:
-
XCX-6006
-
Name:
-
Computer wire cutting and peeling machine
-
Yield:
-
11600 pcs per hour
-
Blade material:
-
Tungsten steel/imported high speed steel
-
Peeling length:
-
Front 0-25mm, rear 0-80mm
-
Catheter inner diameter:
-
3~6mm
-
Display method:
-
English LCD display
-
Weight:
-
33
-
Dimension:
-
400*300*330mm
-
Middle peeling:
-
15
-
Power supply:
-
220V/50Hz 110V/60Hz
Automatic wire cutting and peeling machine 6 square computer cable stripping cutting machine High efficiency processing peeling
| Product model | XCX-6004 | XCX-6006 | XCX-6010 |
| Dimensions | 400*300*330 | ||
| Weight | 25KG | 30KG | 35KG |
| Cutting length | 1-99999.99mm | ||
| Middle stripping | 15 | ||
| Wire core diameter | 0.1-4 | 0.1-6 | 0.1-10 |
| Cutting tolerance | ≤0.002*L | ||
| Catheter diameter | 1.5-5.5mm | 1.5-9.0mm | 1.5-10mm |
| Blade maerial | Imported high speed steel | ||
| Drive mode | four-wheel drive | ||
| Pressure adjustment | have | ||
| Pulse equivalent | ≤5mm error free | ||
| Drive motor | 0.1mm stepper motor | ||
| Speed | 3000-5000pcs/h | ||
| Function | Automatic feeding,setback,output setting,timing power off/on | ||
| Stripping length | Thread head:20mm | Thread head:25mm | |
| Thread tail:15mm | Thread tail:80mm | ||
| Power | AC220/50HZ | ||
| OS | Support Chinese and English LCD display | ||
For 0.1~35mm 2 wire
| Product model | XCX-6016 | XCX-6025 | XCX-6035 |
| Dimensions | 420*350*360 | ||
| Weight | 45KG | 55KG | 56KG |
| Cutting length | 1-99999.99mm | ||
| Middle stripping | 15 | ||
| Wire core diameter | 0.1-16 | 0.1-25 | 0.1-35 |
| Cutting tolerance | ≤0.002*L | ||
| Catheter diameter | 1.5-12mm | 1.5-14mm | 1.5-15mm |
| Blade maerial | Imported high speed steel | ||
| Drive mode | four-wheel drive | ||
| Pressure adjustment | have | ||
| Pulse equivalent | ≤5mm error free | ||
| Drive motor | 0.1mm stepper motor | ||
| Speed | 2000-4000pcs/h | ||
| Function | Automatic feeding,setback,output setting,timing power off/on | ||
| Stripping length | Thread head:25mm | Thread head:30mm | |
| Thread tail:80mm | Thread tail:30mm | ||
| Power | AC220/50HZ | ||
| OS | Support Chinese and English LCD display | ||
Technical support:
We provide overall solution for processing equipment.The engineer offer 24 hours online service. Each machine packing with manual. Beside, we must offer you operation video to insure your working fast.
Customized:
We produce customized equipment(OEM).According to your product’s parameters,wire diameter,length,etc.Or you can delivery us your sample,we test it on machine, after you confirmed, we produce matched machines as 1:1 and test it online for your confirmed.
Warranty:
12 months. Normal blade wear and tear is not covered by the warranty, but we ensure that cutting quantity of each blade at least 500000 times.
After sale service:
We can provide professional technical support and offer you solution in time. If you plan developing market, we certainly give you the most favorable agency price to help you create your own logo, brand, to set up your own reputation and win stable clients in your country.
Are you Xingchuangxin a trader or a factory?
We are a professional manufacturer of wire stripping machines,cutting machines in China for 12 years.
And we also sale kinds of packing machines,tape machines as a agent.
we have strong integration of resources to help customers find the products in China market.
Do you Xingchuangxin have any qualifications and certifications?
We have import and export permissions for our products.
We have ISO international certification and CE certifications to export.
How can we know more about your products?
You can click the video to know more about our machines.
we also can provide e-catalog to show more specifications,you can contact sales to get them.
If you don’t understand how to operate the machines,you can contact our sales to get manual or video about how to install and set.
Can you Xingchuangxin provide spare parts and maintenance?
For the products within warranty period,we will provide the spare parts to repair for free.
Technical support is always provided during your daily using and maintenance.
How do you Xingchuangxin support your agent from different countries?
We provide professional technical support,best agent price,help them to create their own logo,brand,help them to find the customers in their countries.
