Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
GH-laser
-
Single Pulse Energy:
-
96J/150J
-
Pulse Width:
-
0.5~10ms
-
Wavelength:
-
1064nm -1070nm
-
Focal Spot Diameter:
-
0.6-0.5nm
-
Dimensions:
-
906*583*705
-
Weight (KG):
-
145 KG
-
Marketing Type:
-
Hot Product 2023
-
Welding materials::
-
Aluminum, Copper, Steel
-
Welding Width::
-
0.3-8mm
-
Welding Gun:
-
0.75KG
-
Function:
-
Welding + cutting + cleaning
Quick Details
-
Max. Output Power:
-
5000w
-
Usage:
-
metal welding
-
Laser Source Brand:
-
RAYCUS /IPG / Max
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
GH-laser
-
Single Pulse Energy:
-
96J/150J
-
Pulse Width:
-
0.5~10ms
-
Wavelength:
-
1064nm -1070nm
-
Focal Spot Diameter:
-
0.6-0.5nm
-
Dimensions:
-
906*583*705
-
Weight (KG):
-
145 KG
-
Marketing Type:
-
Hot Product 2023
-
Welding materials::
-
Aluminum, Copper, Steel
-
Welding Width::
-
0.3-8mm
-
Welding Gun:
-
0.75KG
-
Function:
-
Welding + cutting + cleaning
Products Description

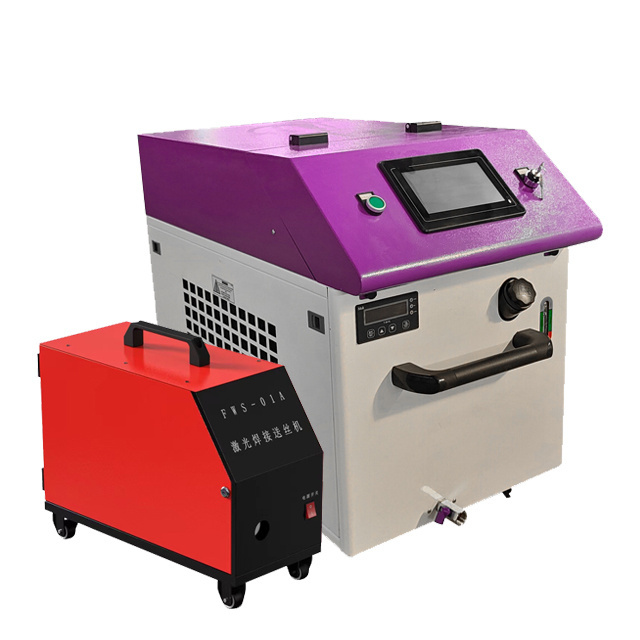

3-in-1 handheld laser welding machine
One laser machine can perform laser welding, laser cleaning and handheld metal cutting at the same time.
There is no need to purchase multiple lasers for these different laser processing operations.
Details Images
Welding gun
Handheld lightweight laser welding head weighing only 710g, allowing operators to work longer each day. There are double protective lenses and a temperature sensor inside the laser head for maximum protection.
system
Change welding parameters via touchscreen control panel. Users can save the normaling parameters inside the system and quickly set them before working.
laser
High stability, energy saving, low maintenance cost, improve production efficiency
Our wire feeding system supports metal wires up to
0.8-1.0-1.2-1.6
mm in diameter and has dual motors in the enclosure to provide more stable support for machine operation.
High-precision temperature control system, dual temperature control cycle refrigeration function, two independent temperature control systems simultaneously cooling optical fiber theme and QBH connector multiple alarm functions, all-round protection of lasers
Product Paramenters
|
Equipment technical parameters
|
|
|
|
|
||||
|
Model
|
GH-1000W
|
GH-1500W
|
GH-2000W
|
GH-3000W
|
||||
|
Laser Power
|
1000W
|
1500W
|
2000W
|
3000W
|
||||
|
Welding thickness range
|
0.3-3.5mm
|
0.3-4.5mm
|
0.3-6mm
|
0.3-8mm
|
||||
|
Laser Source
|
Raycus / Max / IPG / JPT
|
|
|
|
||||
|
Water chiller
|
S&A / HANLI
|
|
|
|
||||
|
Operating system
|
SUP21T / 23S
|
|
|
|
||||
|
Four major functions
|
Welding + cutting + cleaning+Welding surface cleaning
|
|
|
|
||||
|
voltage
|
220V
|
220V
|
220V
|
380V
|
||||
|
Fiber Wire Length
|
10M
|
|
|
|
||||
|
Machine size（mm）
|
906*583*705
|
906*583*705
|
906*583*705
|
110*500*1080
|
||||
|
Machine Weight
|
145KG
|
145KG
|
145KG
|
185KG
|
||||
|
Warranty time
|
Machine warranty for 3 years, free maintenance for life
|
|
|
|
||||
|
Welding mode
|
Spot welding/continuous welding/fish scale welding
|
|
|
|
||||
|
Welding mode
|
Inside Angle/outside Angle/straight Angle/wire or no wire
|
|
|
|
||||
|
Welding material
|
Stainless steel/iron/aluminum/galvanized sheet/copper
|
|
|
|
||||
|
Head weight
|
Gun head 0.71KG
|
|
|
|
||||
|
It supports 15 languages
|
The system supports Chinese, English, Russian, German, French, Korean, Japanese, Spanish, Portuguese, Arabic, Polish, Czech, Thai,
and Turkish |
|
|
|
||||
Why Choose Us
Distribution of welding effect
It has high stability, less maintenance, more energy saving, fast welding speed and high efficiency
and other advantages. No deformation, no blackening, large welding depth, firm welding, no need to grind, simple operation, ordinary people
It's easy to master in half an hour
Cleaning effect display
Metal surface rust removal, paint stripping treatment, oil cleaning, painting, coating cleaning, welding surface, spraying surface
Dispose. Small laser cleaning head, light and convenient, can work for a long time, power supply can run. No consumables, no damage, no pollution
Cutting effect display
As a three-in-one product, it will meet the cutting requirements of welding materials, and the specific cutting speed is simple and convenient
features
