Quick Details
-
Voltage:
-
380V, 3P, 50Hz
-
Dimension(L*W*H):
-
loaded into 20GP
-
Weight (T):
-
8 T
-
Power (kW):
-
380
-
structure:
-
well type furnace
-
Effective working size:
-
(Dia)1300x1800mm
-
Temperature control zone:
-
2 zones
-
Rated temperature:
-
1000 ℃
-
Temperature uniformity:
-
±5℃
-
temperature control accuracy:
-
±1℃
-
Carburizing control method:
-
automatic carbon potential controllor
-
Temperature control method:
-
PID control
-
Refractory lining:
-
all-fiber structure
-
Heating method:
-
4 sides heating
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Marketing Type:
-
New Product 2023
-
Brand Name:
-
WONDERY
-
Voltage:
-
380V, 3P, 50Hz
-
Dimension(L*W*H):
-
loaded into 20GP
-
Weight (T):
-
8 T
-
Power (kW):
-
380
-
structure:
-
well type furnace
-
Effective working size:
-
(Dia)1300x1800mm
-
Temperature control zone:
-
2 zones
-
Rated temperature:
-
1000 ℃
-
Temperature uniformity:
-
±5℃
-
temperature control accuracy:
-
±1℃
-
Carburizing control method:
-
automatic carbon potential controllor
-
Temperature control method:
-
PID control
-
Refractory lining:
-
all-fiber structure
-
Heating method:
-
4 sides heating
Product Application

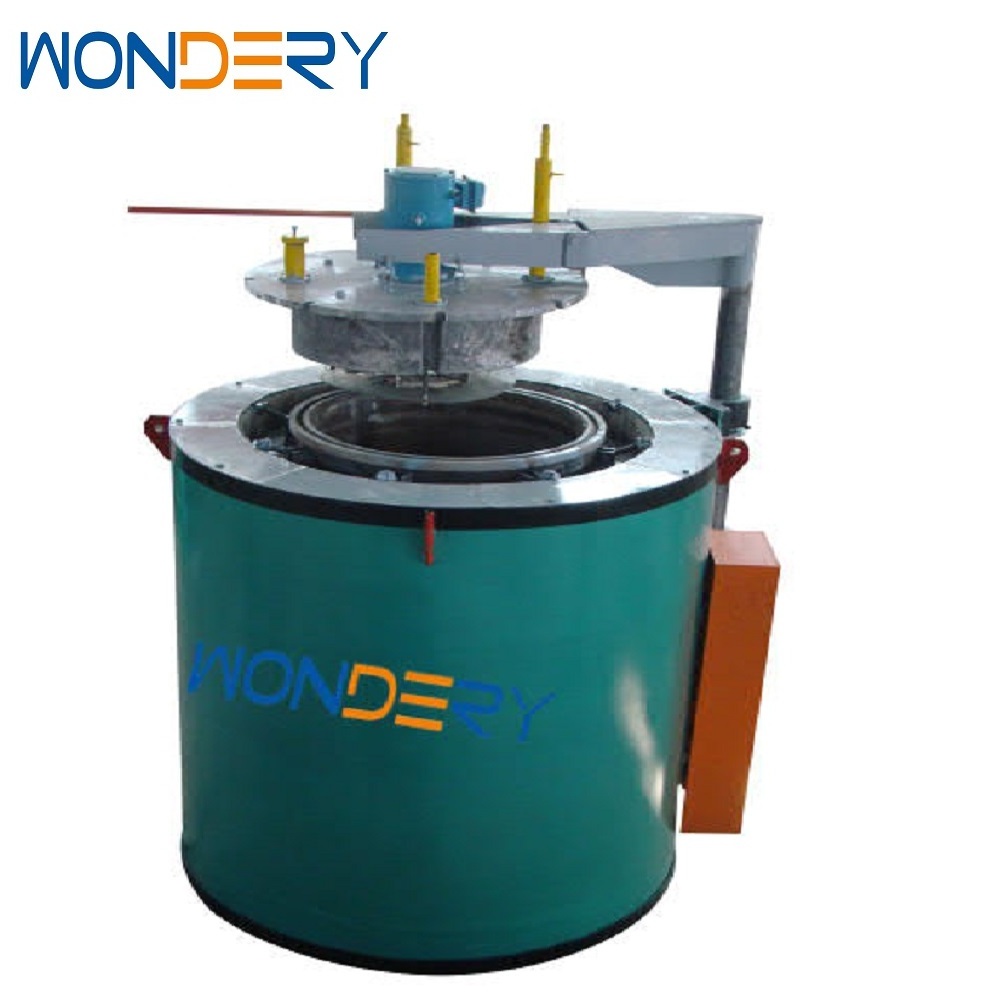

Gas Carburizing Furnace With Carbon Potential Controlling System is a new type energy saving cyclic heat treatment furnace. It is used for gas carburizing heat treatment of steel machine parts, automobile parts. Its max working temperature is 1000℃, and the hearth is equipped with one stainless steel muffle tank. The parts are first loaded in the basket, and then put into the muffle tank. The atmosphere is drip-in type through the flow meter and dripping pipe. The fan is mounted in the furnace cover to force an air circulation inside the furnace.
|
SPECIFICATIONS FOR Gas Carburizing Furnace With Carbon Potential Controlling System
|
|
|
|
|||
|
Rated Power
|
180KW±10%(adjustable)
|
Power supply
|
380V, 3P, 50Hz
|
|||
|
Rated temperture
|
1000℃
|
Temperature control zone
|
2 zones
|
|||
|
Effective working size
|
(Dia)1300x1800mm
|
Temperature uniformity
|
±5℃
|
|||
|
Temperature control accuracy
|
±1℃
|
Furnace cover lifting method
|
Electric lifting
|
|||
|
Refractory lining
|
All-fiber structure
|
Circulating fan
|
3KW Water cooling motor
|
|||
|
Temperature control method
|
PID control, SHIMAX Temperature Controller; Paperless recorder
|
Carburizing control method
|
automatic carbon potential controllor
|
|||
Carbon Potential Controlling System
1. Main Performance Index
1.1 carbon potential uniformity: ≤±0.05%CP;
1.2 carbon potential stability: ≤±0.02%CP;
1.3 carbide uniformity grade: ≤±1 grade;
1.4 Effective case depth tolerance: ≤±0.1mm for case depth≤1mm; ±5% for case depth: ≥1mm; (same bath material);
1.5 carbon potential control method: oxygen probe and PID regulation;
2. Functions
Atmosphere carbon potentialk control: The carbon potential control system adopts anti heat shock oxygen probe, JCT1 carbon potential controller, and imported solenoid valve to control the carbon potential.
It has a high control accuracy, and its anti-inteference ability has reached the international level. The potential controller is able to save 100 processes. The oxygen probe is also set with carbon deposit burning device.
