Quick Details
-
Customized support:
-
Logo and Packaging box
-
Place of Origin:
-
GUA
-
Brand Name:
-
OEM/ODM
-
Model Number:
-
PS-TY8600000-1
-
Operating Temperature:
-
-40 - 80
-
Product Name:
-
WiFi DIY Relay Module Switch
-
Contact load:
-
1A
-
Contact switching current:
-
1A
-
Contact switching voltage:
-
DC 5V-32V
-
Contact form:
-
Control
-
Rated voltage:
-
DC 5V-32V-WiFi/DC 5V-32V-WiFi+RF
-
3C rated voltage range:
-
Below 36V
-
Wireless Standard:
-
WiFi 2.4GHz IEEE802.11b/g/n
-
Voice Control:
-
Google Home Amazon Alexa ECHO
-
APP Name:
-
Smartlife Tuya APP
-
Certification:
-
CE
Quick Details
-
Max. Current:
-
10A
-
Max. Voltage:
-
220V
-
Network:
-
WiFi, WiFi+RF
-
Customized support:
-
Logo and Packaging box
-
Place of Origin:
-
GUA
-
Brand Name:
-
OEM/ODM
-
Model Number:
-
PS-TY8600000-1
-
Operating Temperature:
-
-40 - 80
-
Product Name:
-
WiFi DIY Relay Module Switch
-
Contact load:
-
1A
-
Contact switching current:
-
1A
-
Contact switching voltage:
-
DC 5V-32V
-
Contact form:
-
Control
-
Rated voltage:
-
DC 5V-32V-WiFi/DC 5V-32V-WiFi+RF
-
3C rated voltage range:
-
Below 36V
-
Wireless Standard:
-
WiFi 2.4GHz IEEE802.11b/g/n
-
Voice Control:
-
Google Home Amazon Alexa ECHO
-
APP Name:
-
Smartlife Tuya APP
-
Certification:
-
CE
Tuya WiFi Smart Relay Module 1/2/4 Gang Wireless Switch Momentary Inching Timer Mode DIY Switch Remote Control with Google Home
Specifications:
Operating voltage: 5V/7-32V DC/AC
LED: 1 LED (indicate working mode, wifi status, relay on/off status respectively)
Two input interfaces
Supports to control different voltage ranges
USB port power supply more convenient
Board consumption: <1W
Standby current: 80mA
Max input current: 10A
Max Wattage: 2200W
Relay lifespan: ≥one million times
100M electrical insulation resistance
Electric shock voltage: 1000V
Relay maximum pull time: 15ms
Relay maximum release time: 5ms
Working mode: inching / self-locking
Wireless Standard: 2.4GHz, 802.11 b/g/n
Mobile App: Tuya / Smart life on Android/IOS
Application: access control, turn on PC, garage door, etc.
Computer application: Remote control computer boot
Operating temperature: -40 degrees to +70 degrees
Operating Humidity 40%-80% RH

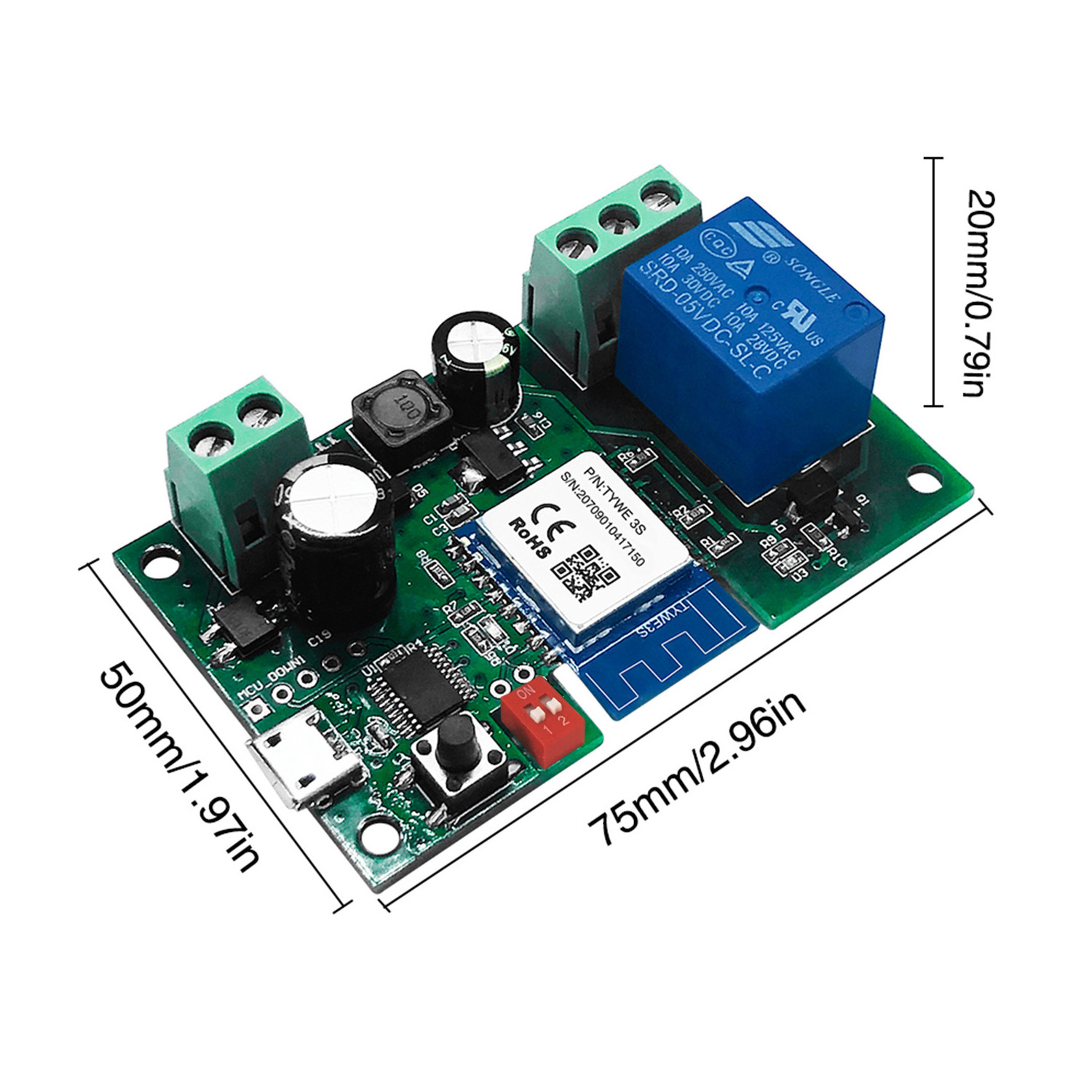

Item Size: 75*50*20mm/2.96*1.97*0.79in
Operating voltage: 5V/7-32V DC/AC
LED: 1 LED (indicate working mode, wifi status, relay on/off status respectively)
Two input interfaces
Supports to control different voltage ranges
USB port power supply more convenient
Board consumption: <1W
Standby current: 80mA
Max input current: 10A
Max Wattage: 2200W
Relay lifespan: ≥one million times
100M electrical insulation resistance
Electric shock voltage: 1000V
Relay maximum pull time: 15ms
Relay maximum release time: 5ms
Working mode: inching / self-locking
Wireless Standard: 2.4GHz, 802.11 b/g/n
Mobile App: Tuya / Smart life on Android/IOS
Application: access control, turn on PC, garage door, etc.
Computer application: Remote control computer boot
Operating temperature: -40 degrees to +70 degrees
Operating Humidity 40%-80% RH
Item Size: 75*50*20mm/2.96*1.97*0.79in
Product Description
Specification
|
item
|
value
|
|
Network
|
WiFi, WiFi+RF
|
|
Customized support
|
Logo and Packaging box
|
|
Whether the smart
|
Yes
|
|
Place of Origin
|
GUA
|
|
Brand Name
|
OEM/ODM
|
|
Model Number
|
PS-TY8600000-1
|
|
Operating Temperature
|
-40 - 80
|
|
Max. Current
|
10A
|
|
Max. Voltage
|
220V
|
|
Product Name
|
WiFi DIY Relay Module Switch
|
|
Contact load
|
1A
|
|
Contact switching current
|
1A
|
|
Contact switching voltage
|
DC 5V-32V
|
|
Contact form
|
Control
|
|
Rated voltage
|
DC 5V-32V-WiFi/DC 5V-32V-WiFi+RF
|
|
3C rated voltage range
|
Below 36V
|
|
Wireless Standard
|
WiFi 2.4GHz IEEE802.11b/g/n
|
|
Voice Control
|
Google Home Amazon Alexa ECHO
|
|
APP Name
|
Smartlife Tuya APP
|
