Quick Details
-
Welding Mode:
-
MAG
-
Welding Diameter:
-
220~300 mm
-
Dimensions:
-
1750*1100*1800mm
-
Use:
-
Body Seam Welder
-
Voltage:
-
380V
-
Warranty:
-
1 Year
-
Weight (KG):
-
1800 KG
-
Power (kW):
-
40
-
Certification:
-
CE Certificate
-
Weight:
-
1800kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
automatic tin can seam welding machine
-
tig:
-
portable
-
portable:
-
mig
-
inverter:
-
arc
-
ultrasonic:
-
laser
-
single phase arc:
-
electric
-
aluminium:
-
wire mesh
Quick Details
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
yongxin
-
Forming Time:
-
1s-10s Adjustable
-
Welding Mode:
-
MAG
-
Welding Diameter:
-
220~300 mm
-
Dimensions:
-
1750*1100*1800mm
-
Use:
-
Body Seam Welder
-
Voltage:
-
380V
-
Warranty:
-
1 Year
-
Weight (KG):
-
1800 KG
-
Power (kW):
-
40
-
Certification:
-
CE Certificate
-
Weight:
-
1800kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
automatic tin can seam welding machine
-
tig:
-
portable
-
portable:
-
mig
-
inverter:
-
arc
-
ultrasonic:
-
laser
-
single phase arc:
-
electric
-
aluminium:
-
wire mesh
Related Machines
More information please go to www.jeitco.com
Automatic tin can seam welding machine
Specification
|
Linear rate of welding |
6-36m/min |
|
Production capability |
60~120Cans/min |
|
Applicable can diameter |
Ø52~ø99mm |
|
Applicable can height |
70~320mm |
|
Applicable material |
Tinplate steel-based Chrome |
|
Applicable material thickness |
0.16~0.30mm |
|
Seam welding landing |
0.4mm 0.6mm |
|
Seam point distance |
0.5~0.8mm |
|
Applicable copper wire diameter |
ø 1.38mm ø 1.5mm |
|
Cooling water |
Temperature:12-18°C Pressure:0.4~05Mpa Discharge:10L/min |
|
Power |
380V±5% 50HZ |
|
Total power |
18KVA |
|
Dimension |
1750×1100×1800mm |
|
Weight |
1800Kg |
Features
1. PLC(Programmable Logic Controller) is purchased from Japanese MITSUBISHI.
2. Low voltage apparatus are produced by SCHNEIDER.
3. IGBT(Insulated Gate Bipolar Transistor) is bought from Japanese FUJI.
4. OMRON is our sensor supplier.
5. HMI(Human Machine Interface) is purchased from WEINTEC Labs.,Inc in Taiwan.
Usage
1.Apply to the welding of vairous can food cans,increased material cans,aerosol cans, chemical tanks
2.Can body internal and extemal prepainting machine and can body drier are optional tobe added in production line
Can making technology process
Cutting-----rounding-----welding-----coating-----drying-----pre-curling and expanding-----flanging-----seaming bottom-----beading and curling

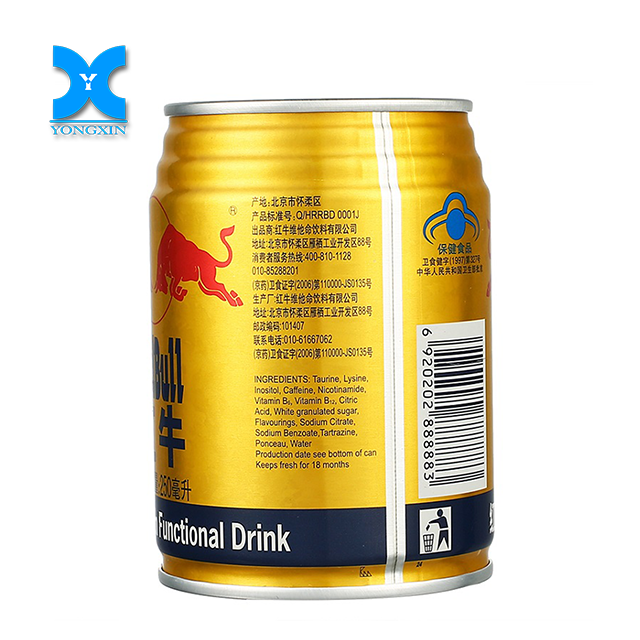

Applicable types of cans
aerosol can ,food cans ,increased material cans, chemical tanks.
