Quick Details
-
Positioning Accuracy (mm):
-
0.02 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Spindle Motor Power(kW):
-
3.5/4.5/6kw air cooling spindle
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JCUT
-
Voltage:
-
220V/380V, 220v/380v
-
Dimension(L*W*H):
-
1300*2500*200mm
-
Power (kW):
-
3.5
-
Weight (KG):
-
1200
-
Product name:
-

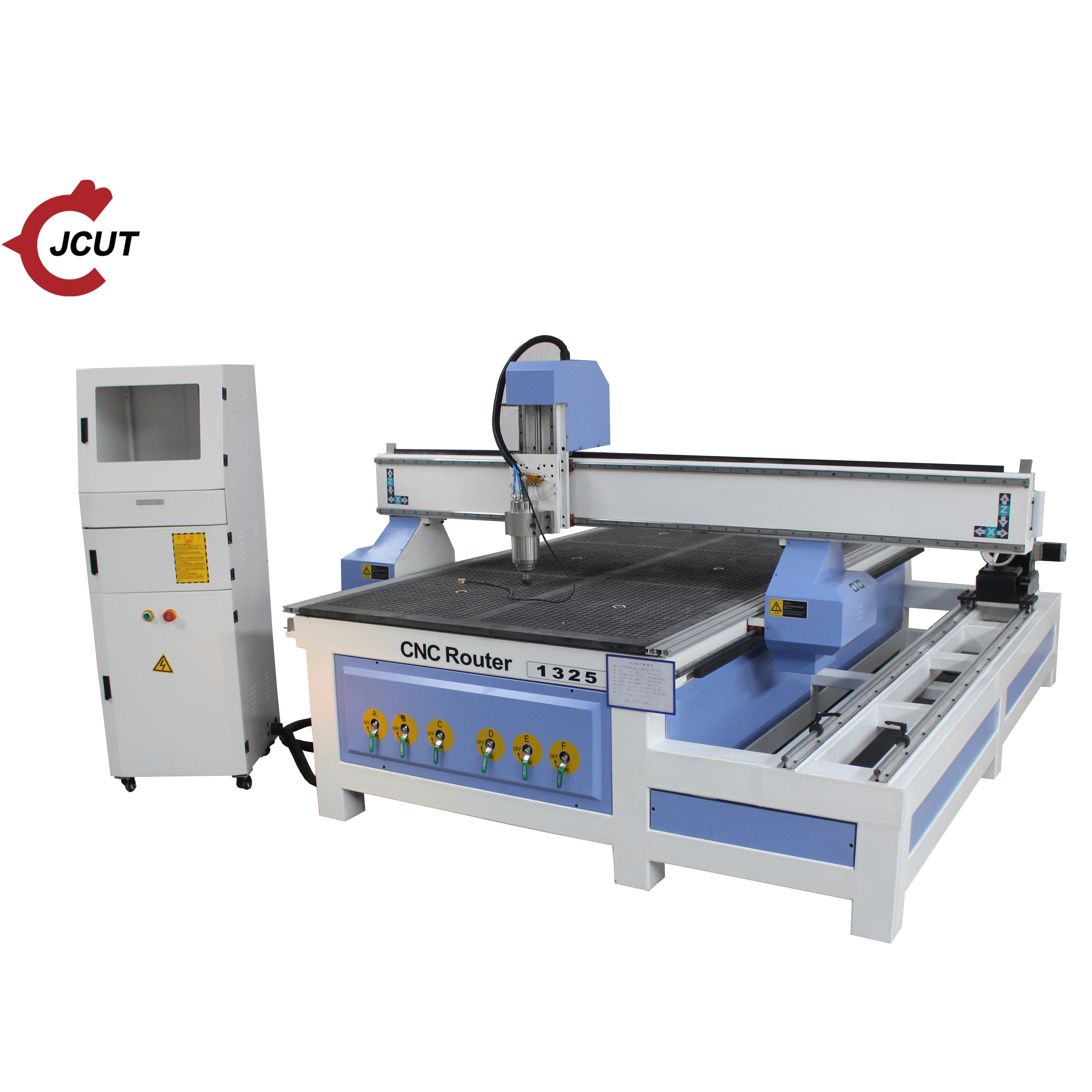

China 1325 Rotary Cnc Router 4 Axis Cnc Machine with Good Price
-
Spindle:
-
3.5/4.5/6kw air cooling spindle
-
Control system:
-
NC studio/DSP
-
Motor:
-
Stepper Motor 450B
-
Driver:
-
AIGT/Leadshine
-
Inverter:
-
Sunfar/Fuling
-
Ball screw:
-
Taiwan TBI ball screw
-
Linear rail:
-
Hiwin 20 linear rail
-
Rack:
-
1.5m gear rack, greater carrying capacity, longer lifetime
-
Certification:
-
CE, ISO
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
1 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.02 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Spindle Motor Power(kW):
-
3.5/4.5/6kw air cooling spindle
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JCUT
-
Voltage:
-
220V/380V, 220v/380v
-
Dimension(L*W*H):
-
1300*2500*200mm
-
Power (kW):
-
3.5
-
Weight (KG):
-
1200
-
Product name:
-
China 1325 Rotary Cnc Router 4 Axis Cnc Machine with Good Price
-
Spindle:
-
3.5/4.5/6kw air cooling spindle
-
Control system:
-
NC studio/DSP
-
Motor:
-
Stepper Motor 450B
-
Driver:
-
AIGT/Leadshine
-
Inverter:
-
Sunfar/Fuling
-
Ball screw:
-
Taiwan TBI ball screw
-
Linear rail:
-
Hiwin 20 linear rail
-
Rack:
-
1.5m gear rack, greater carrying capacity, longer lifetime
-
Certification:
-
CE, ISO
Cheap Price Artcam 3D Wood CNC Router/4 Axis Woodworking CNC Machine /1325 CNC Router For Woodworking
Advantage of 4axis cnc router:
1)woodworking cnc router body design with high strength and double driving motors of Y axis, which have more reasonable design, fast processing speed, easy-operated maintenance and low fault rate.
2) famous brand drivers and motors have characteristics such as powerful strength, fast processing speed, stable operation and extreme low noises.
3) High power spindles have constant power, woodworking cnc router has low noises and super-strong cutting force, which improve working efficiency greatly.
4) Imported high precise linear guideways have features such stable operation, high precision and steady support, which prolong service life of machines.
5) Z-axis adopts imported ball screw of industrial level, which can position accurately and make processing effect more perfect.
6) Software has good compatibility. The machine can be compatible with various CAD/CAM design & making software such as TYPE3, Artcam, JD, Artcut, UG, MasterCAM, PowerMill and so on.
Applicable Industry of 4 axis cnc router
Furniture industries
: cabinet doors, wooden doors, solid woods, plates, antique furniture, doors, windows, desks and chairs.
Decoration industries
: screens, wave boards, large-size wall hangings, advertising boards and sign making.
Arts & Crafts industries
: Engrave on artificial stones, woods, MDF sheet, bamboos, marbles, organic boards, double-color boards and so on for achieving effects of exquisite patterns and characters.
Decoration industries
: engraving, milling and cutting processing for acrylic, PVC, density boards, artificial stones, organic glass, plastics and soft metal sheets such as copper and aluminum.
Configuration can be customized according to customer requirements.
Packaging: Wooden box
Shipping: About 10~15 working days after confirm the order
1. We provide 12 months warranty for the machine. Warranty starts from receipt of the machine or parts.
2. All extra parts for the machine can be purchased with agent price from us.
3. Email/ Skype/ MSN/ Trade manager online to support.
4. Life-long Technical Support and After-sale Service free of charge.
5. Professional technical team and sales person give you regarding troubleshooting procedures via Internet and Phone any time when needed.
6. Free and Professional Training at our Factory under the relaxed condition.
