Quick Details
-
Weight:
-
360 KG
-
Dimension(L*W*H):
-
1700*1300*700
-
Working depth:
-
250mm
-
Color:
-
Customized Color
-
Product Type:
-
Agricultural Farm Machinery Plough
-
Working Width:
-
900mm
-
Linkage:
-
Three Point Mounted
-
Structure:
-
Mounted Plough
Quick Details
-
Use:
-
plowing soil
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
ALCHEMY
-
Weight:
-
360 KG
-
Dimension(L*W*H):
-
1700*1300*700
-
Working depth:
-
250mm
-
Color:
-
Customized Color
-
Product Type:
-
Agricultural Farm Machinery Plough
-
Working Width:
-
900mm
-
Linkage:
-
Three Point Mounted
-
Structure:
-
Mounted Plough

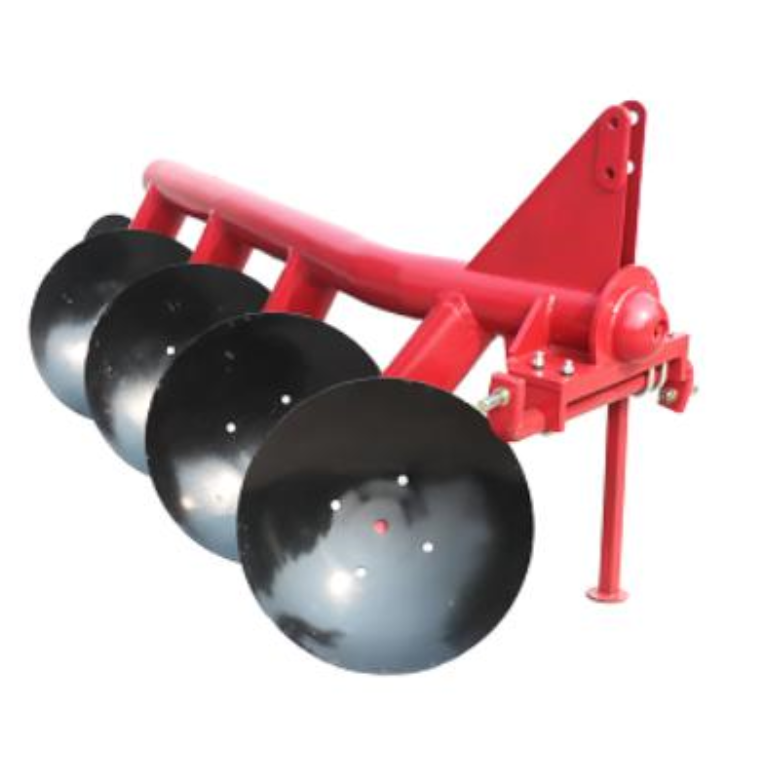

3 point hitch plow 2/3/4/5/6 disc plough harrows mini farming tractor ploughing machine
This kind of Disc plough is matched with four-wheel tractor, the discs of plough are revolving to furrow the land during operation.. The mounted disc plow is especially suitable for land which have weeds, stems and frictional soil with small brick etc.
|
Model |
1LYX-230 |
1LYX-330 |
1LYX-430 |
1LYX-530 |
|
Width of cut (mm) |
600 |
900 |
1200 |
1500 |
|
Depth of cut (mm) |
250~300 |
|||
|
Dia of disc (mm) |
660 |
|||
|
Q’ty of disc |
2 |
3 |
4 |
5 |
|
Weight (kg) |
270 |
360 |
470 |
5 6 0 |
|
Tractor power (hp) |
40 |
60 |
100 |
130 |
|
Mounted cat |
Cat II |
|||
Product Pcictures:
