Quick Details
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
xxx
-
Weight:
-
170000 KG
-
Capacity:
-
200t/h
-
Power:
-
106kw
-
Water consumption:
-
400m3/h
-
Particle size:
-
≤300mm
-
Recovery rate:
-
90%
-
After-sales Service Provided:
-
Video technical support
-
Certification:
-
ios9001-2008
Quick Details
-
Production Capacity:
-
90%
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Yongli
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
xxx
-
Weight:
-
170000 KG
-
Capacity:
-
200t/h
-
Power:
-
106kw
-
Water consumption:
-
400m3/h
-
Particle size:
-
≤300mm
-
Recovery rate:
-
90%
-
After-sales Service Provided:
-
Video technical support
-
Certification:
-
ios9001-2008

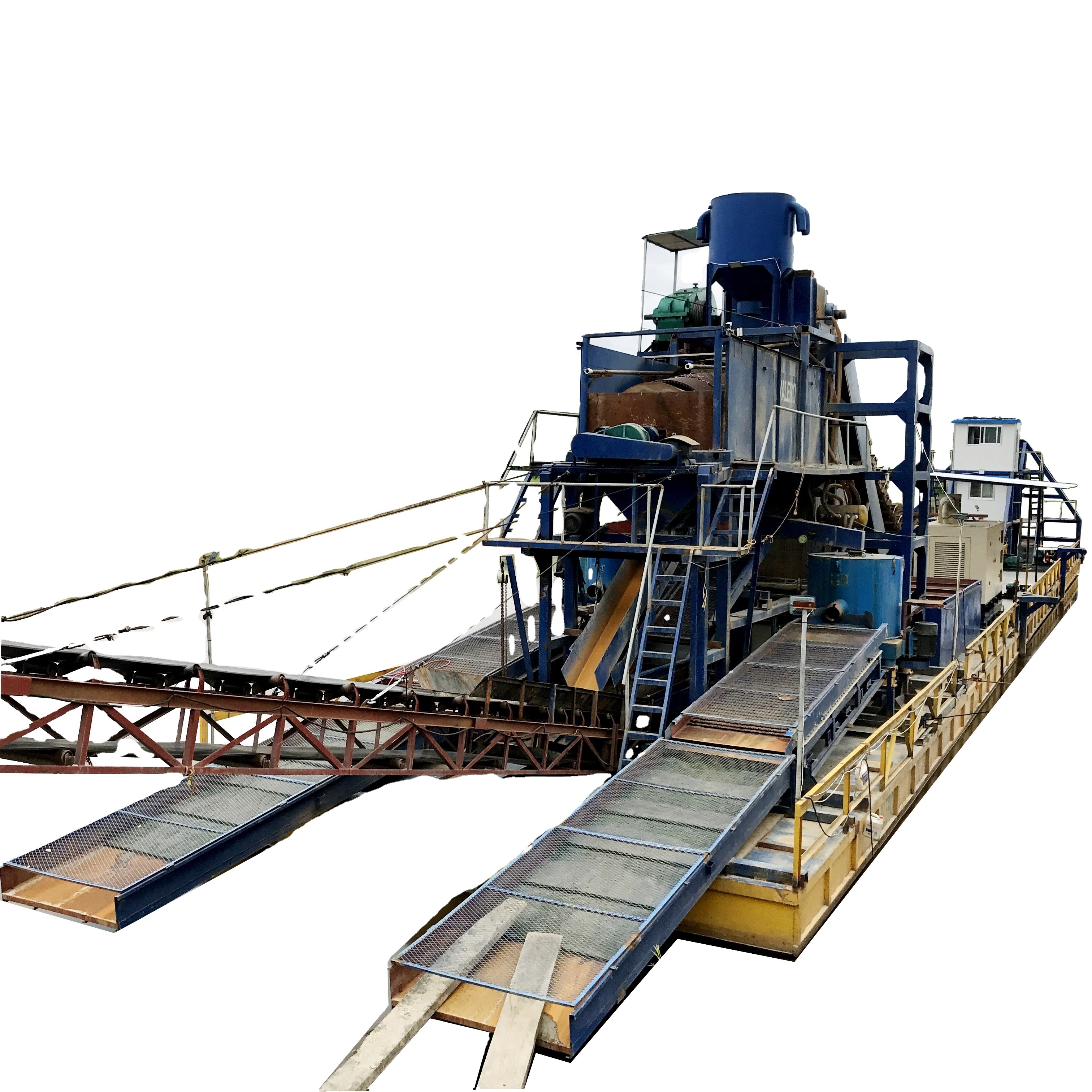

Gold Washing Plant
Could be used to mine gold mixed with sand in palaeochannel, palaeo-riverbed, alluvial placer, tailing after ball milling, and diamond and zirconium in raw ore.
Product Features:
1. Could be used to mine gold mixed with sand in palaeochannel, palaeo-riverbed, alluvial placer, tailing after ball milling, and diamond and zirconium in raw ore.
2. Iron ore needs to be retrieved first with magnetic separator if the percentage is high in the raw ore, then gold, diamond, zirconium will be concentrated, or the effectiveness will be affected.
3. This set of mining equipment are composed of several gravity concentrators. The concentration ratio could reach as high as 1:1000, and the recovery efficiency about 90% after series of separation.
Technical Parameter:
| Model | Capacity(t/h) | Power(kw) | Water consumption(m3/h) | Particle size(mm) | recovery | |
| YLGWP-100 | 100 | 92 | 200 |
|
90% | |
| YLGWP-150 | 150 | 100 | 300 |
|
90% | |
| YLGWP-200 | 200 | 106 | 400 |
|
90% | |
| YLGWP-250 | 250 | 118 | 500 |
|
90% |
We also can supply others upon customer’s request.
In order to supply our solution and quotation, please inform us:
1. required work capacity per hour?
2. ratio of sand and stone? Any clay?
3. gold content or gold particle size
4. other information about work site
