Quick Details
-
After-sales Service Provided:
-
Online support
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Ruilinfan
-
Model Number:
-
Type 800
-
Voltage:
-
customized
-
Product name:
-
Exhaust Fan
Quick Details
-
Applicable Industries:
-
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company, Parking lot, Office building, Livestock farm, Textile workshop
-
Electric Current Type:
-
AC/ DC
-
Mounting:
-
Wall Fan
-
After-sales Service Provided:
-
Online support
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Ruilinfan
-
Model Number:
-
Type 800
-
Voltage:
-
customized
-
Product name:
-
Exhaust Fan
Negative pressure fan uses the cooling principle of air convection and the negative pressure air exchange, air is discharged to outdoor which makes the indoor air pressure drop, indoor air becomes thinner, forming a negative pressure zone, then outdoor air, due to the air pressure difference compensates into the room, so that the indoor stuffy gas can be quickly forced to discharge outdoor.
By this way,cooling effect can reach 90%-97%.Thus,negative pressure fan has the advantages of less investment, low energy consumption, significant cooling effect, etc.
The stainless steel negative pressure fan is a piece of equipment used in industry and medicine, mainly for the suction or discharge of gases or liquids. It adopts the principle of negative pressure, by reducing the pressure around the object to be sucked to achieve the purpose of sucking or discharging the gas or liquid.
Stainless steel negative pressure fans are widely used in pharmaceutical, food processing, chemical, printing, hospital, and other fields, it can be used to absorb toxic and harmful gases, dust, waste gas, odor, oil fumes, and other substances.
All material will be stainless steel , accept customizaton for material, size, voltage, etc.

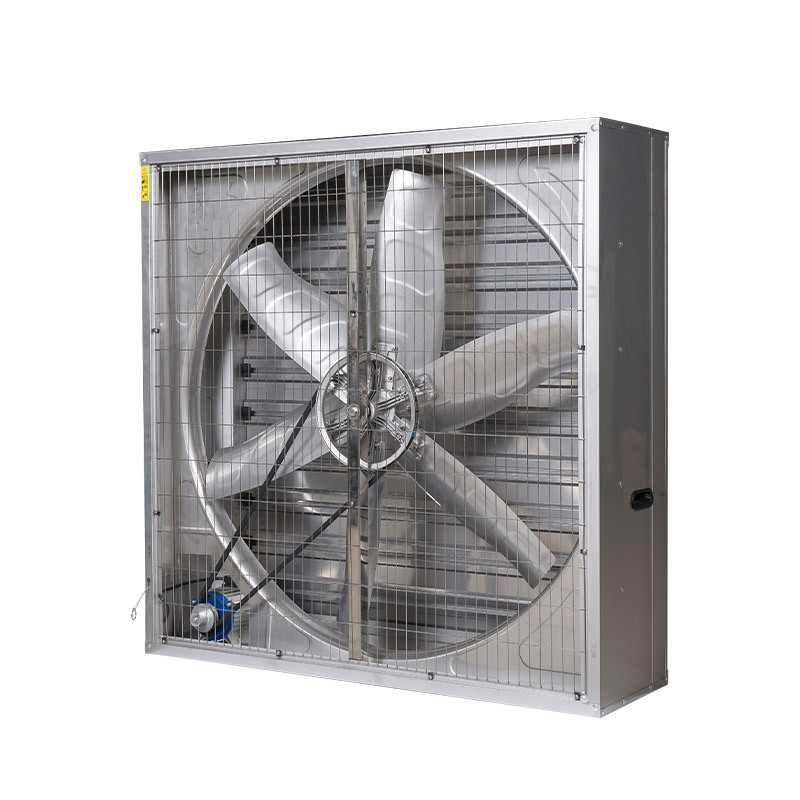

| Products | 304 stainless steel exhaust fan | ||||||
| Model size | Type 800 | Type 900 | Type 1000 | Type 1100 | Type 1220 | Type 1380 | Type 1530 |
| Body size | 80*80*35cm | 90*90*40cm | 100*100*40cm | 110*110*40cm | 122*122*40cm | 138*138*40cm | 153*153*40cm |
| Fan blade diameter | 650mm | 750mm | 900mm | 1000mm | 1100mm | 1250mm | 1400mm |
| Blade rotate speed | 616rmp | 616rpm | 513rpm | 513rpm | 427rpm | 427rpm | 427rpm |
| Motor speed | 1400rpm | 1400rpm | 1400rpm | 1400rpm | 1400rpm | 1400rpm | 1400rpm |
| Air volume(m³/h) | 22000 | 27000 | 30000 | 34000 | 37000 | 44500 | 55700 |
| Noise level(db) | ≤70 | ≤70 | ≤70 | ≤70 | ≤70 | ≤70 | ≤70 |
| Input power | 370w | 370w | 550w | 750w | 750w | 1100w | 1500w |
| Voltage(can customized) | 220V/380V | 220V/380V | 220V/380V | 220V/380V | 220V/380V | 220V/380V | 220V/380V |
There are two packaing ways to choose:
1. SKD way: goods sent by parts, not complete, buyers need to do the assembly.
2. Complete way: goods sent in whole, buyers don't need to do assembly.
