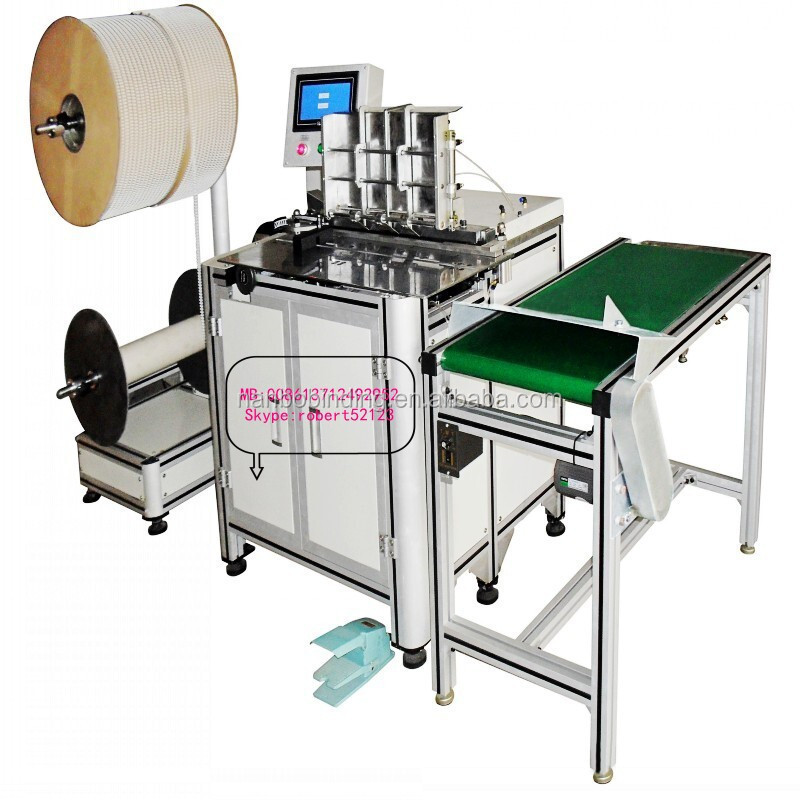

DWC-520 Cheapest Factory Price Hanger Calendar Wire o Binding Machine, Wire o Binding Machine

DWC-520  Hanger Calendar Wire o  Binding Machine, Wire-o Binding Machine

Calendar Wire o Binding Machine  was researched&developed on the base of Japanese&South Korea's advanced technology.it is

the best multifunctional binding machine with the highest efficiency in China.

Spiral Book Binding Machine 's advantages:

1: can bind notebook speed up to 800-2000 books per hour

2: can bind double wire diameter 1/4"  5/16" 3/8" 7/16" 1/2" 9/16" 5/8" 3/4"  7/8" pitch 3:1 &2:1 with one machine just need different sizes binding mould

3:can bind book width 70-520mm

4:machine also includes auto hanger binding attachment

5: machine has auto error reminder function

6:Multi language interface design according to customer requested

7:Automatic transmission books,and allow workers to easy operate

8:the actuating element of the machine to switch to new side type to ensure long life and stability

Book Binder Machine Specifications:

Feeding mode: Manual          Wire Specifications:Automatic cutting,insertion&Closing

Max.Paper Width:520mm       Max.Binding Width(mm):507

Min.Paper Width:75mm          Working speed(times/hour):800-2000

Power:220v/1ph/50hz/60hz/0.2kw

Air Compressor(not included)kw:1.5     Air pressure(bar):6-8

Net weight:400kg      machine dimension:1800*760*1230mm

Our  company advantages: we can supply after printing all kinds of full binding system:

1: first choose  binding use double loop wire,our factory manufacture double loop wire forming machine and also manufacture

double loop wire,after you bought double wire binding machine from us,if you also buy  double loop wire from us. the double loop wire can smoothly bind by our double wire binding machine,they can work and cooperate very successfully.

2: second choose binding use metal single spiral coil,it is more easy we have one machine forming metal single spiral coil

and binding notebook at the same time

3:third choose binding use plastic spiral coil,also very ok,we can manufacture plastic spiral coil forming machine and also plastic spiral coil binding machine.

Regards to our service:After you bought machine from us,if machine has any problem we can help you to solve it.firstly after

you bought machine we will send a instruction book to tell you how to fix machine and operate the machine.if you have small

problem with machine tell us,we take a vidoe to show you how to solve,if big problem you can not deal with it,we will send

master to your company help you to solve
