Quick Details
-
Brand Name:
-
Taishan
-
Dimension(L*W*H):
-
Depends on the capacity of boiler
-
Weight:
-
Depends on the capacity of size
-
Brand:
-
Taishan
-
Steam Capacity:
-
1-100 t/h
-
Design fuel:
-
Coal, Biomass, Wood Pellet
-
Thermal efficiency:
-
>81%
-
Drum:
-
Sing drum
-
Boiler Structure:
-
Fire & Water Tube Structure
-
Pass:
-
Three passes
-
Grate:
-
Chain grate
-
Other boiler types:
-
Oil/gas-fired boiler, CFB boiler, biomass boiler, power plant boiler
-
Application:
-
Industrial Production
-
Marketing Type:
-
New Product
Quick Details
-
Core Components:
-
PLC, Pressure parts
-
Steam Production:
-
1-100 t/h
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Taishan
-
Dimension(L*W*H):
-
Depends on the capacity of boiler
-
Weight:
-
Depends on the capacity of size
-
Brand:
-
Taishan
-
Steam Capacity:
-
1-100 t/h
-
Design fuel:
-
Coal, Biomass, Wood Pellet
-
Thermal efficiency:
-
>81%
-
Drum:
-
Sing drum
-
Boiler Structure:
-
Fire & Water Tube Structure
-
Pass:
-
Three passes
-
Grate:
-
Chain grate
-
Other boiler types:
-
Oil/gas-fired boiler, CFB boiler, biomass boiler, power plant boiler
-
Application:
-
Industrial Production
-
Marketing Type:
-
New Product
SPECIFICATION
|

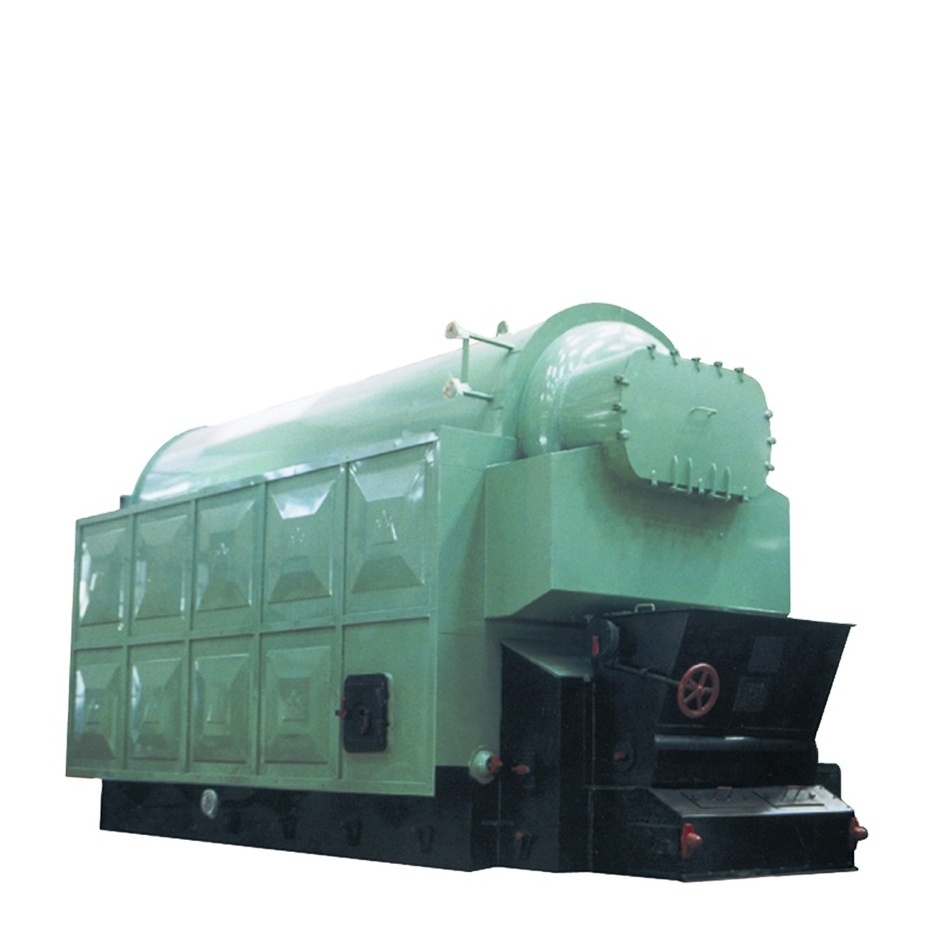

DZL series coal fired steam boiler
|
|
|
|
|
|
|||||
|
Boiler model
|
Capacity(t/h)
|
Pressure(barg)
|
Steam temp.(℃)
|
Feed water temp (℃)
|
Flue gas temp.(℃)
|
|||||
|
DZL1-0.7-AII
|
1
|
7
|
170
|
20
|
152
|
|||||
|
DZL1-1-AII
|
1
|
10
|
184
|
20
|
160
|
|||||
|
DZL2-0.7-AII
|
2
|
7
|
170
|
20
|
152
|
|||||
|
DZL2-1-AII
|
2
|
10
|
184
|
20
|
161
|
|||||
|
DZL2-1.25-AII
|
2
|
12.5
|
193
|
20
|
164
|
|||||
|
DZL4-0.7-AII
|
4
|
7
|
170
|
20
|
154
|
|||||
|
DZL4-1-AII
|
4
|
10
|
184
|
20
|
163
|
|||||
|
DZL4-1.25-AII
|
4
|
12.5
|
193
|
20
|
164
|
|||||
|
DZL4-1.6-AII
|
4
|
16
|
204
|
20
|
170
|
|||||
|
DZL6-1.25-AII
|
6
|
12.5
|
193
|
105
|
166
|
|||||
|
DZL6-1.6-AII
|
6
|
16
|
204
|
105
|
169
|
|||||
|
DZL8-1.25-AII
|
8
|
12.5
|
193
|
105
|
161
|
|||||
|
DZL8-1.6-AII
|
8
|
16
|
204
|
105
|
166
|
|||||
|
DZL10-1.25-AII
|
10
|
12.5
|
193
|
105
|
160
|
|||||
|
DZL10-1.6-AII
|
10
|
16
|
204
|
105
|
162
|
|||||
|
DZL12-1.25-AII
|
12
|
12.5
|
193
|
105
|
149
|
|||||
|
DZL12-1.6-AII
|
12
|
16
|
204
|
105
|
150
|
|||||
|
DZL15-1.25-AII
|
15
|
12.5
|
193
|
105
|
159
|
|||||
|
DZL15-1.6-AII
|
15
|
16
|
204
|
105
|
164
|
|||||
|
DZL20-1.25-AII
|
20
|
12.5
|
193
|
105
|
153
|
|||||
|
DZL20-1.6-AII
|
20
|
16
|
204
|
105
|
159
|
|||||
|
DZL25-1.25-AII
|
25
|
12.5
|
193
|
105
|
152
|
|||||
|
DZL25-1.6-AII
|
25
|
16
|
204
|
105
|
156
|
|||||
|
DZL30-1.25-AII
|
30
|
12.5
|
193
|
105
|
156
|
|||||
|
DZL30-1.6-AII
|
30
|
16
|
204
|
105
|
160
|
|||||
|
DZL35-1.25-AII
|
35
|
12.5
|
193
|
105
|
155
|
|||||
|
DZL35-1.6-AII
|
35
|
16
|
204
|
105
|
158
|
|||||
|
DZL40-1.25-AII
|
40
|
12.5
|
193
|
105
|
143
|
|||||
|
DZL40-1.6-AII
|
40
|
16
|
204
|
105
|
146
|
|||||
|
DZL45-1.6-AII
|
40
|
16
|
204
|
105
|
150
|
|||||
Our group has various types of boilers that can meet your various needs. You can come to consult us by clicking on the text, and you will enjoy more favorable benefits and the latest product details and parameters；
>>>>>>>>>GO
PRODUCT DISPLAY
Our products enjoy many certifications and honorary certificates, and are very reliable products; if you have questions about our products, you can ask us, we will be happy to answer your questions-----
Click on the text to inquire with us>>>>>Go
PRIDUCT ACESSORIES
COAL FIRED PARTS
APPLICATION
MORE PRODUCTS
COMPANY PROFILE
OK, this is a small demonstration of our factory. We are a listed group and have close cooperation with the world's top 500. Our group has been established for 44 years and has a professional and mature after-sales team in many countries. Welcome For your consultation, I can give you a detailed introduction to the strength of our factory; ---
Click the text to ask us, we will wait for your arrival in 24 hours >>>>>>>>Go
FAQ
1. How to get a boiler price?
Pls tell us below information to confirm the boiler model first, and then offer the right boiler price:
1.1 Which fuel you prefer for the boiler, coal, biomass, gas & oil, or others?
1.2 The boiler capacity
1.3 The boiler pressure
1.4 The boiler application
2. How long is the product warranty period ?
Our boilers have one year warranty period or depending on your requirements.
3. What about after-sale service?
We will supply professional after-sale service team as soon as we receiving your problem feedback, and dispatch our engineers to your country and solve your problems right now.
4. What's the advantages of your company?
4.1 Reasonable heat surface and burning device, heat efficiency is 4%~5% higher than national standard.
4.2 Reasonable flue gas speed, heating surface without ash deposition and no abrasion, under the condition of no soot-blowing, the boiler can work full-load, high-efficiency and safety in long term.
4.3 The big and tall boiler furnace can be designed according to the different fuel to improve the burning rate of fuel and remove black smoke.
4.4 All independent loop and reasonable coal boiler injected circulation are specially designed and adopted for the hot water boilers. The medium speed in loop of heat surface is higher than national standard
4.5 1-20T/H & 0.7-14MW boiler adopt big and high strength grate, add rolling device improves the boilers’ 4.6 Over 20T/H & 14MW boiler adopt flake type or beam type chain grate, less coal leakage, convenient burning adjustment. Closed soot cleaning avoid second pollution and save time and labor.
4.7 Dust inertia separation at the furnace outlet can reduce exhaust gas concentration and lessen abrasion of rear heat surface.
4.8 Compact structure makes its installation volume smaller than other types of boilers, it will shorten installation period and lower boiler room cost.
4.9 Big water volume benefits for power-off protection, high ability suitable for load changing.
Pls tell us below information to confirm the boiler model first, and then offer the right boiler price:
1.1 Which fuel you prefer for the boiler, coal, biomass, gas & oil, or others?
1.2 The boiler capacity
1.3 The boiler pressure
1.4 The boiler application
2. How long is the product warranty period ?
Our boilers have one year warranty period or depending on your requirements.
3. What about after-sale service?
We will supply professional after-sale service team as soon as we receiving your problem feedback, and dispatch our engineers to your country and solve your problems right now.
4. What's the advantages of your company?
4.1 Reasonable heat surface and burning device, heat efficiency is 4%~5% higher than national standard.
4.2 Reasonable flue gas speed, heating surface without ash deposition and no abrasion, under the condition of no soot-blowing, the boiler can work full-load, high-efficiency and safety in long term.
4.3 The big and tall boiler furnace can be designed according to the different fuel to improve the burning rate of fuel and remove black smoke.
4.4 All independent loop and reasonable coal boiler injected circulation are specially designed and adopted for the hot water boilers. The medium speed in loop of heat surface is higher than national standard
4.5 1-20T/H & 0.7-14MW boiler adopt big and high strength grate, add rolling device improves the boilers’ 4.6 Over 20T/H & 14MW boiler adopt flake type or beam type chain grate, less coal leakage, convenient burning adjustment. Closed soot cleaning avoid second pollution and save time and labor.
4.7 Dust inertia separation at the furnace outlet can reduce exhaust gas concentration and lessen abrasion of rear heat surface.
4.8 Compact structure makes its installation volume smaller than other types of boilers, it will shorten installation period and lower boiler room cost.
4.9 Big water volume benefits for power-off protection, high ability suitable for load changing.
