FMC mud pump ceramic liner 435/420 Zirconia Ceramic Liner Alumina lining tube

FMC mud pump ceramic liner 435/420 Zirconia Ceramic Liner Alumina lining tube

FOB Reference Price: Get Latest Price

≥5 Pieces

US $45

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Supereal

Product name:: zirconia ceramic liner

Y2O3+ZrO2:: ≥ 99.5%

Bulk Density:: 5.95-6.05 g/cm3

HRA Hardness:: ≥ 87

Bending Strength (Mpa):: 800-1200

Color:: White

Shape:: straight tube

Industry:: Oil and Gas Industry

Quick Details

Material:: Zirconia Ceramic

Place of Origin:: Shandong, China

Model Number:: F800

Brand Name:: Supereal

Product name:: zirconia ceramic liner

Y2O3+ZrO2:: ≥ 99.5%

Bulk Density:: 5.95-6.05 g/cm3

HRA Hardness:: ≥ 87

Bending Strength (Mpa):: 800-1200

Color:: White

Shape:: straight tube

Industry:: Oil and Gas Industry

Product Description

FMC mud pump ceramic liner 435/420 Zirconia Ceramic Liner Alumina lining tube

The high-pressure mud pumps are the "heart" of the mud system in drilling. And the liners are the mainly fragile parts in mud pumps for development drilling.

Items			Item
zirconia ceramic cylinder sleeve / lining tube			Steel shell matched with ceramic cylinder sleeve
Material	Y- TZP	Material	45# Steel
Y ₂ O ₃ + ZrO ₂	≥99.5%	C ( % )	0.42 - 0.5
Rockwell Hardness (HRA)	≥87	Mn ( % )	0.5 - 0.8
Bulk Density	5.95-6.05g/cm ³	Si ( % )	0.17- 0.37
Elasticity Modulus	200Gpa	P ( % )	< 0.06
Bending Strength	800-1200MPa	S ( % )	< 0.05
Coefficient of thermal expansion	9.6×10 ^-6 m/×m.k	Cr ( %)	< 0.25
Fracture Toughness	8-10M pam ^1/2
Surface Finish: As Fired	1.27mm

Product Advantages

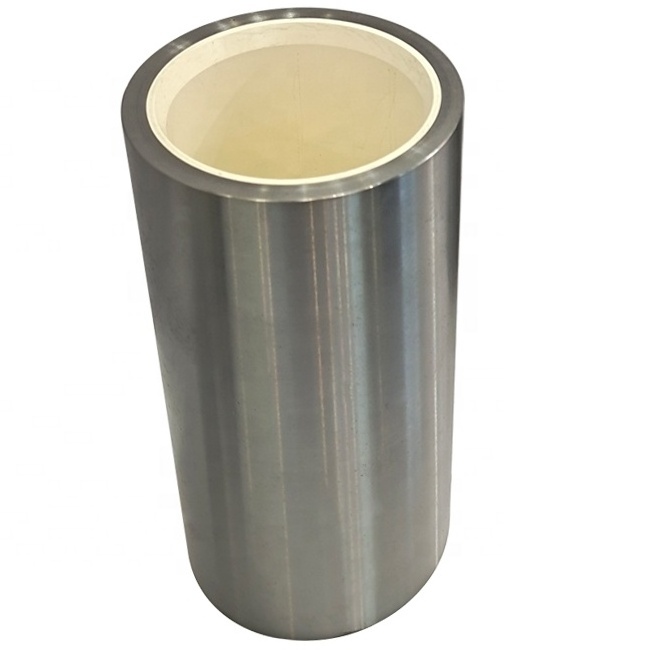

They are composed of a pressure-bearing metal outer shell and high wear resistant ceramic inner liner. After precision machining and assembly, it is integrated into one body, and the overall mechanical performance is superior.Compared with bi-metal liner, the service life of ceramic liner is 5-10 times higher.Its maximum can reach 4000 hours and minimum at least 2000 hours.

The ceramic liners are not only workable for drilling and development environments of deep oil reservoirs and harsh geological structures, but also can be used for offshore oil and natural gas exploitation.

The zirconia ceramic liner which has used the phase transformation toughen technology has various advantages such as wear-resistance, erosion-resistance,high-pressure resistance, high temperature resistance, high strength and high hardness. So the cost of shipment, maintenance, labor and storage in the drilling works are greatly reduced.

Compared with alumina liners, zirconia liners have better toughness and longer service life. It can also reduce piston wear and water consumption for lubrication.

Ceramic liners can also widely used in coal, non-ferrous metal, drilling field .

Main Size & Specification

FMC mud pump ceramic liner 435/420 Zirconia Ceramic Liner Alumina lining tube , such as Lanshi Pump, Baoshi Pump, Qingzhou Pump, National, Oilwell, IDECO, EMSCO , Gardner-Denver and so on.

Pump Type	Liner Specification	Pump Type	Liner Specification
F500 / F800 / F1000	φ 130-160mm	PZ7/PZ8/PZ9	4.5"-6.75"
F1300 / F1600	φ 140-170mm	PZ10/PZ11	5"-7"
F1300HL / F2200HL	φ 140-180mm	FB1300/FB1600/FC2200	5"-7"
3NB800 / 3NB1000	φ 120-170mm	T500/T800/T1000	5"-7.5"
3NB1300 / 3NB1600	φ 110-180mm	T1300/ T1600	5"-7.5"
7P50 / 8P80/10P130	5"-7"	A850PT/A1700PT	5"-7"
12P160/14P220	5"-7"	TPK1300/TPK2200	5"-7"
