Quick Details
-
Model Number:
-
FMPV32-ELR2
-
Max. Current:
-
32A
-
Mechanical Life:
-
10000 times
-
IP Rating:
-
IP65
-
Rated Current:
-
16,25,32A
-
No. of Poles:
-
2&4 poles
-
Enclosure knockouts Size:
-
M20/25
-
Standard:
-
IEC60947-3
-
Model:
-
Boxed DC Switch
-
Certification:
-
SAA, ROHS, CE, TUV, CB TEST REPORT
Quick Details
-
Max. Voltage:
-
1200V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
FMELEC
-
Model Number:
-
FMPV32-ELR2
-
Max. Current:
-
32A
-
Mechanical Life:
-
10000 times
-
IP Rating:
-
IP65
-
Rated Current:
-
16,25,32A
-
No. of Poles:
-
2&4 poles
-
Enclosure knockouts Size:
-
M20/25
-
Standard:
-
IEC60947-3
-
Model:
-
Boxed DC Switch
-
Certification:
-
SAA, ROHS, CE, TUV, CB TEST REPORT
IP66 Outdoor DC Solar Isolator Switch
Product Introduction
The FMPV32-ELR2 DC Isolator switches have been specifically designed to switch Direct Current (DC) at voltages up to 1200Volts. Their robust design and ability to switch such voltages, at rated current, mean that they are ideally suited to be used in the switching of Photovoltaic (PV) systems.
The DC switch achieves ultra-rapid switching through a patented ‘Snap Action’ spring driven operating mechanism. When the front actuator is rotated, energy is accumulated in the patented mechanism until a point is reached at which the contacts are fired open or closed. This system will operate the switch under load within 5ms thereby reducing the arcing time to a minimum.
In order to reduce the chances of an arc propagating, the HGN4-002GL DC switch employs rotary contact technology. This is designed to make and break the circuit through a revolving double break contact assembly that wipes as it moves. The wiping action has the added advantage of keeping the contact faces clean thereby reducing the circuit resistance and increasing the life of the switch.
The FMPV32-ELR2 boxed DC isolators are manufactured from flame retardant polycarbonate plastic resulting in an extremely strong, reliable, safe switch. They are also supplied in an enclosure which gives plenty of space for cabling.
Key Features
IP66NW rated enclosure
TUV. SAA. CE. CB Approval
Ample internal space for easier wiring.
Polycarbonate flame retardant plastic, UV protect
16A,25A & 32A all rated up to 1200V DC.
Unique spring loaded switching mechanism for high speed switching(5mS max).
Knife edge self-cleaning contacts for increased switch life.
Long arc chambers to help rapid arc suppression
16mm2 rising clamp terminals for easy wiring

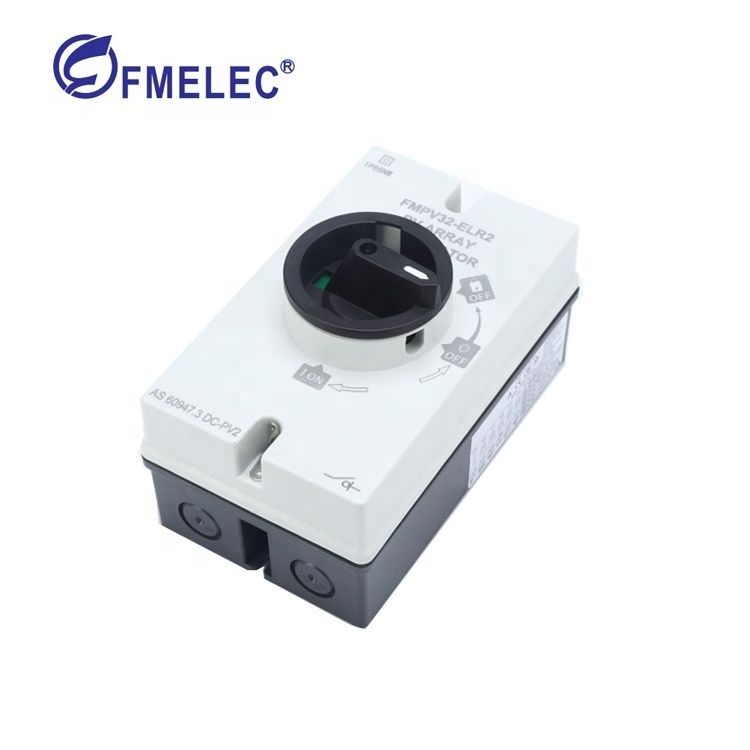

FMPV32-ELR2 1200VDC Isolator Switch
