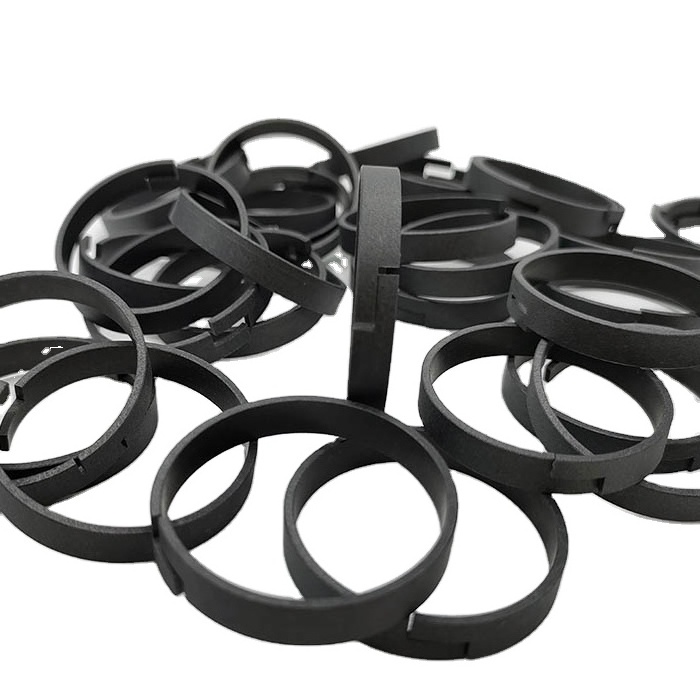

carbon filled ptfe piston shaft sealing rings bronze filled PTFE hydraulic cylinder wear ring seals

The filled PTFE wear ring is suitable for guiding the hydraulic cylinder, the piston and the piston rod in the cylinder, and functions as a support and guide.

They guide the rod or the piston and prevent metallic contact with the cylinder when radial forces act perpendicular to the direction of movement. The wear ring protects critical sealing lips from contamination effects. The compound used for these guides assures an exceptional low friction and high speed performance,a high compatibility with nearly all media due to the chemical resistance which exceeds that of all other thermoplastics and elastomer.

Advantages for hydraulic cylinder piston seals rings

- Avoid contact between metals

- High load resistance

- High speed allowed

- Low friction

- With wiping function

- Simple installation

- Can suppress mechanical vibration

Material for wear rings

Could be filled PTFE, such as carbon fibre filled ptfe, bronze filled ptfe etc.

And phenolic fabric etc.

Technical Date

Pressure	Speed	Temp.	Medium
—	≤ 15m/s	- 55 ~ + 225 ℃	Hydraulic oil(mineral oil based), General petroleum-based hydraulic oil, water diethanol hydraulic oil, phosphate ester hydraulic oil, etc.

Cut type for hydraulic cylinder piston wear rings

Diagrammatic Drawing

Here is some wear ring size for your ref only.

Above size is only for your ref, as a hydraulic cylinder wear rings suppier we can give you available suggestion on size here.
