Quick Details
-
Application:
-
Villa
-
Type:
-
CSSGO-05 AC110V/220V 400mm Stroke
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CHISUNG
-
Model Number:
-
CSSGO-05
-
Power Supply:
-
AC220V±10V 50HZ,AC110V±10V, 60Hz
-
Electric motor:
-
AC110V/220V
-
Current:
-
5.2A
-
Absorbeb power of motor:
-
70W
-
Max leaf length:
-
3.5m
-
Max gate weight:
-
500kg
-
Motor speed:
-
1.6cm/s
-
Rotational speed:
-
1800RPM
-
Thrust:
-
1500N
-
Packing:
-
26kg, Together 1 cartons: 1030*300*280mm
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
NONE
-
Application:
-
Villa
-
Type:
-
CSSGO-05 AC110V/220V 400mm Stroke
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CHISUNG
-
Model Number:
-
CSSGO-05
-
Power Supply:
-
AC220V±10V 50HZ,AC110V±10V, 60Hz
-
Electric motor:
-
AC110V/220V
-
Current:
-
5.2A
-
Absorbeb power of motor:
-
70W
-
Max leaf length:
-
3.5m
-
Max gate weight:
-
500kg
-
Motor speed:
-
1.6cm/s
-
Rotational speed:
-
1800RPM
-
Thrust:
-
1500N
-
Packing:
-
26kg, Together 1 cartons: 1030*300*280mm
Product Description

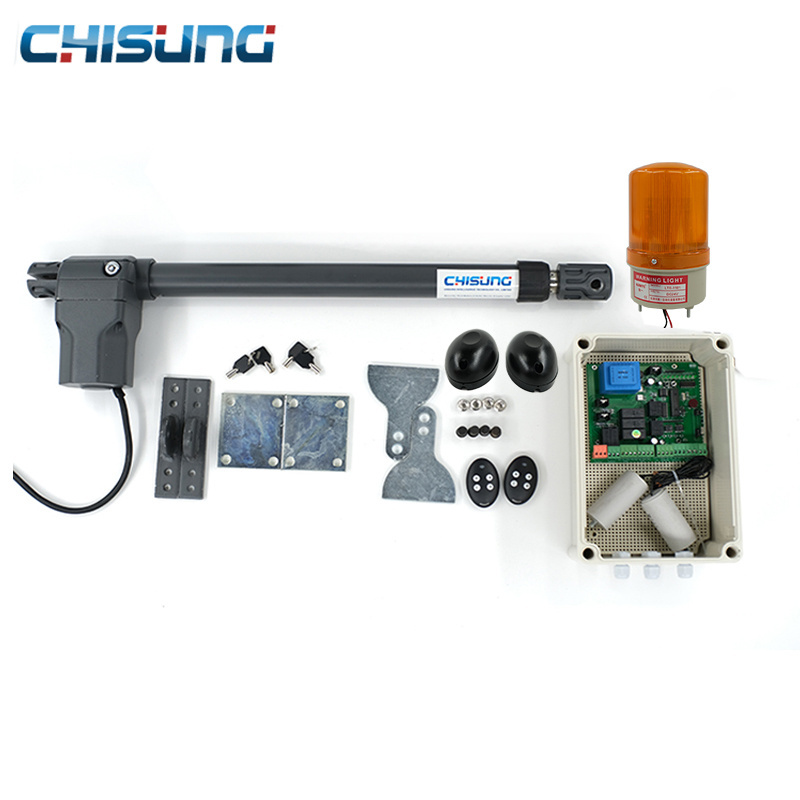

CSSGO-05 Model
1)DC 24V motor,IP45,Max gate weight:500kg, Max leaf length:2.5m,400mm stroke.
2)DC 24V motor,IP45,Max gate weight:500kg, Max leaf length:3m,600mm stroke.
3)AC 230V/120V motor,IP45,Max gate weight:500kg, Max leaf length:3.5m,400mm stroke, 4)AC 230V/120Vmotor,IP45,Max gate weight:500kg, Max leaf length 4m,600mm stroke, one motors and support parts.
3)AC 230V/120V motor,IP45,Max gate weight:500kg, Max leaf length:3.5m,400mm stroke, 4)AC 230V/120Vmotor,IP45,Max gate weight:500kg, Max leaf length 4m,600mm stroke, one motors and support parts.
Specification
|
Model
|
CSSGO-05-1-24V ordinary
|
CSSGO-05-2-24V extra long
|
CSSGO-05-1-AC ordinary
|
CSSGO-05-2-AC extra long
|
|
Power Supply
|
AC220V±10V 50HZ,AC110V±10V, 60Hz
|
AC220V±10V 50HZ,AC110V±10V, 60Hz
|
AC220V±10V 50HZ,AC110V±10V, 60Hz
|
AC220V±10V 50HZ,AC110V±10V, 60Hz
|
|
Electric motor
|
DC 24V
|
DC 24V
|
AC220/110V
|
AC220/110V
|
|
Current
|
5.2A
|
5.2A
|
1.5A
|
1.5A
|
|
Absorbeb power of motor
|
70W
|
70W
|
320W
|
320W
|
|
Max leaf length
|
2.5m
|
3.0m
|
3.5m
|
4.0m
|
|
Max gate weight
|
500kg
|
500kg
|
500kg
|
500kg
|
|
Motor speed
|
1.6cm/s
|
1.6cm/s
|
1.6cm/s
|
1.6cm/s
|
|
Rotational speed
|
1800RPM
|
1800RPM
|
1450RPM
|
1450RPM
|
|
Thrust
|
1500N
|
1500N
|
3200N
|
3200N
|
|
Running time protection
|
Adjustable
|
Adjustable
|
Adjustable
|
Adjustable
|
|
Rod's max travel
|
400mm
|
600mm
|
400mm
|
600mm
|
|
Auto closing delay time
|
programmable (from 0 to 99 seconds)
|
programmable (from 0 to 99 seconds)
|
programmable (from 0 to 99 seconds)
|
programmable (from 0 to 99 seconds)
|
|
Gate move speed
|
12S/90degrees
|
12S/90degrees
|
12S/90degrees
|
12S/90degrees
|
|
Operating Temperature
|
-20°C~+70°C
|
-20°C~+70°C
|
-20°C~+70°C
|
-20°C~+70°C
|
|
Relative Humidity
|
≤95%, No Condensation
|
≤95%, No Condensation
|
30%
|
30%
|
|
Protection class
|
IP45
|
IP45
|
IP45
|
IP45
|
|
Application
|
home automation
|
home automation
|
home automation
|
home automation
|
|
limit switch
|
No
|
No
|
No
|
No
|
|
condenser
|
/
|
/
|
8μF
|
8μF
|
|
Door opening angle
|
90°,100°,110°,120°
|
90°,100°,110°,120°
|
90°,100°,110°,120°
|
90°,100°,110°,120°
|
