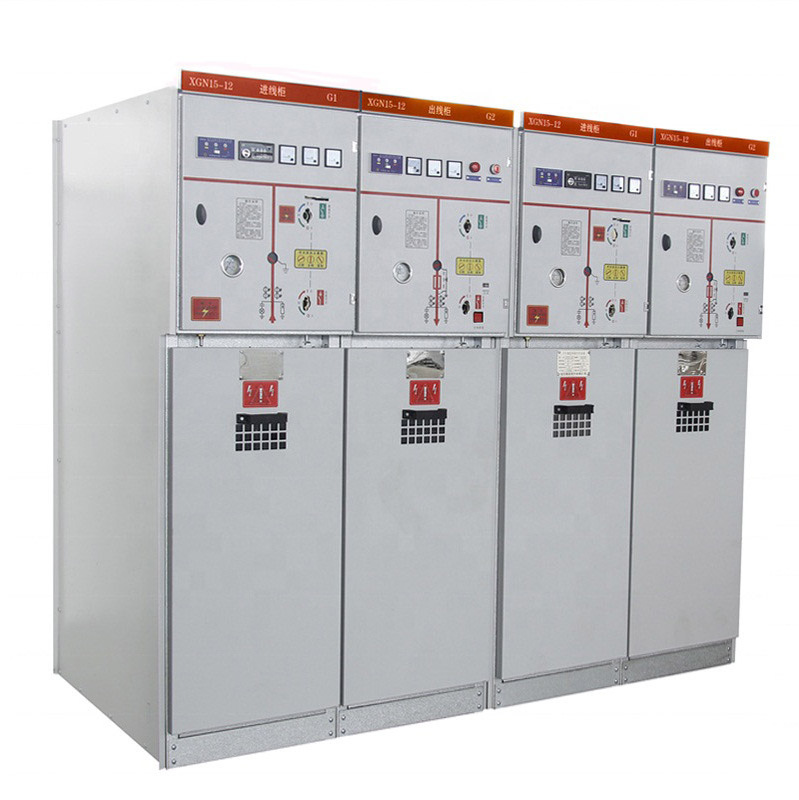

24kV Air Insulated Switchgear AIS Air Insulated SM6 with SF6 load break switch

24kV Air Insulated Switchgear

Standards

IEC 62271-100 high voltage alternating current circuit breakers

IEC 62271-105 : alternating current switch-fuse Combination

IEC 62271-102 : alternating current disconnectors and earthing switches

IEC 62271-200 A.C. metal enclosed switchgear and controlgear for rated voltage above 1 kV and up to and including 52 kV

IEC 62271-103 high voltage switches for rated voltage above 1 kV and less than 52 kV

IEC 60694: Common specifications for high-voltage switchgear and controlgear standards

IEC 60265-1 Switches for rated voltages above 1 kV and less than 52 kV

IEC 60529: Degrees of protection provided by enclosures (IP Code)

Service environment:
a) Air temperature:Maximum temperature: +40℃; Minimum temperature:-25℃

b) Humidity:Monthly average humidity 95%; Daily average humidity 90% .

c) Altitude above sea level:Maximum installation altitude: 2500m

d) Ambient air not apparently polluted by corrosive and flammable gas, vapor etc.

e) No frequent violent shake

SafeSwitch is an air insulated (AIS), metal enclosed, switchgear cubicle. It is suitable for electric distribution automation and compact also expandable metal close switchgear. It characters in its simple structure, flexible operation, reliable interlocking and convenient installation etc., which can provide the satisfactory technical projects both for different application occasions and users.

With the adoption of sensor technology and the protection relay up to date, plus the advanced technology and flexible assembly project, SafeSwitch can completely meet the requirement of continuously variable market.

SafeSwitch can take SF6 load break switch; also according to user's demand can be assembled with the vacuum circuit breaker. Operational methods  can be either manual or motor driven.

1 Load Switch : Load switch and earthing switch in an enclosure filled with SF6 and satisfying "sealed pressure system" requirements.

2 Busbars : all in the same horizontal plane, thus enabling later switchboard

extensions and connection to existing equipment.

3 Connection : accessible through front, connection to the lower load switch and earthing switch terminalsor the lower fuse-holders. This compartment is also equipped with an earthing switch downstream from the MV fuses for the protection units.

4 Operating mechanism : contains the elements used to operate the load switch and earthing switch and actuate the corresponding indications

(positive break).

5 Low voltage : installation of a terminal block (if motor option installed), LV fuses and compact relay devices.

If more space is required, an additional enclosure may be added on top of the cubicle.
