Sensor Type：
1/1.8 CMOS
，
SONY IMX385
35X
zoom
Pixel： 2Mp
Resolution： 1920×1080
Focal length：
7-300mm
Low Lux：
Color：
Day/night automatic conversion
；
Black & white：
0.001LuxF1.2(N)；0.01LuxF1.2(DAY)
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MYTECH
-
Model Number:
-
T160-V2T35(640)-4G
-
Product Name:
-
portable thermal battery powered camera
-
shell material:
-
metal
-
Resolution:
-
1920*1080p
-
The sensor:
-
1/2.8"High performance low illumination CMOS senso
-
Memory:
-
Max up to 256G
-
4G:
-
Support
-
optical zoom:
-
33x
-
Battery:
-
18650 Batteries 9pcs
-
IR distance:
-
120 meters
-
WIFI:
-
support
Quick Details
-
Special Features:
-
NIGHT VISION, Temperature Measurement, Waterproof / Weatherproof, PAN-TILT, Two-way Audio, Face Recognition
-
Function:
-
Two-way Audio, PAN-TILT, RESET, NIGHT VISION, Waterproof / Weatherproof, Wide Angle, Thermal image
-
Customized support:
-
OEM, ODM
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MYTECH
-
Model Number:
-
T160-V2T35(640)-4G
-
Product Name:
-
portable thermal battery powered camera
-
shell material:
-
metal
-
Resolution:
-
1920*1080p
-
The sensor:
-
1/2.8"High performance low illumination CMOS senso
-
Memory:
-
Max up to 256G
-
4G:
-
Support
-
optical zoom:
-
33x
-
Battery:
-
18650 Batteries 9pcs
-
IR distance:
-
120 meters
-
WIFI:
-
support
Product Description
|
Model name
|

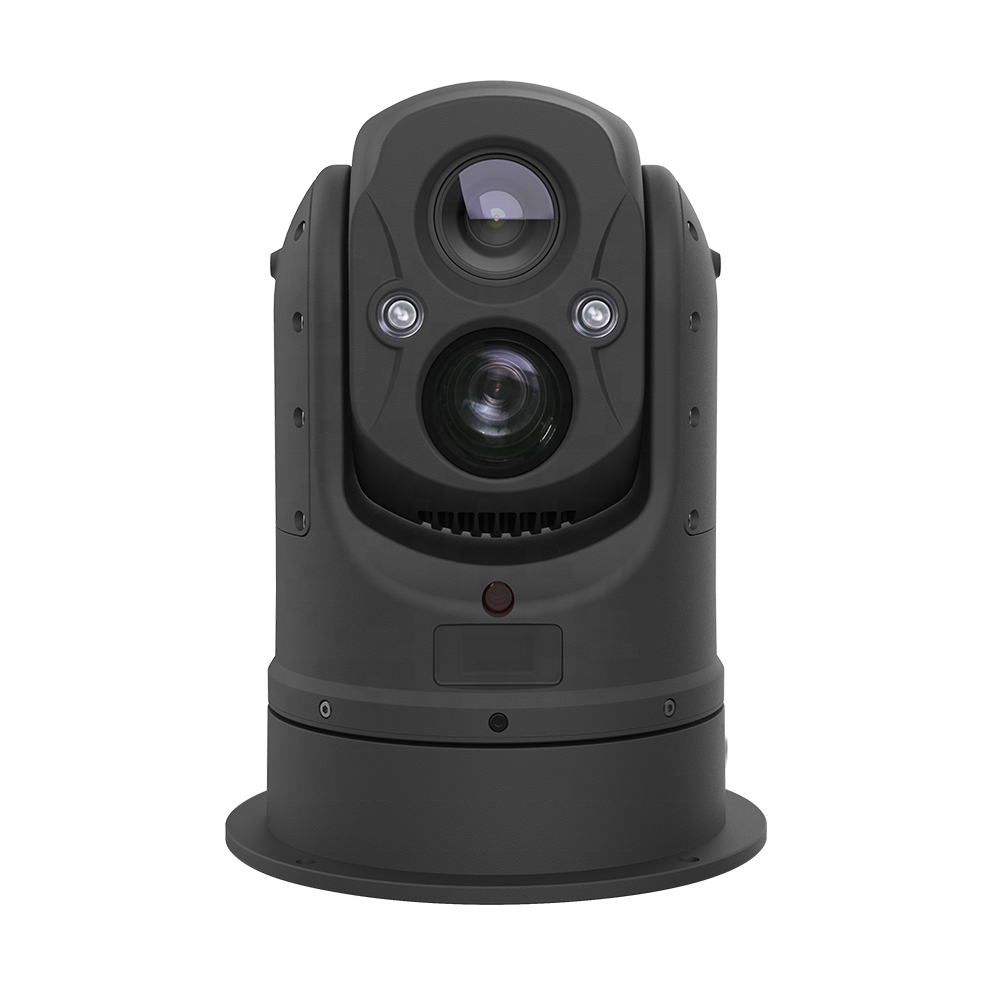

T160 dual lens
|
|
Installation method
|
Flat base mounting, base with shock absorber
|
|
Power supply
|
AC24V ±10% Iin≥10A
|
|
Total Power
|
10W
|
|
Temperature and
humidity |
-40℃~+65℃
35%～90% |
|
Dust-proof and
water-proof |
IP67, Anti-rust, anti-corrosion coating, anti-salt spray at pH 6.5-7.2, continuous spraying for 24 hours
|
HD Daylight Camera
Thermal imaging camera
Sensor Type：
Alarm type uncooled
Resolution： 640X512
Pixel size: 17μm
Spectrum range: 8~14μm
Focal length: 35 mm fixed lens
FOV: 4.2°-3.3°~20.6°-16.5°
F Value: F1.0-F1.2
Lens control: Electrical zoom, Electrical focus
Resolution： 640X512
Pixel size: 17μm
Spectrum range: 8~14μm
Focal length: 35 mm fixed lens
FOV: 4.2°-3.3°~20.6°-16.5°
F Value: F1.0-F1.2
Lens control: Electrical zoom, Electrical focus
Features:
* Max diameter 168mm, the camera weight don’t exceed 8kg.
* Max working time more than 8 hours.
* 2MP High definition video, resolution up to 1080P.
* 360-degree continuous rotation, support patrol, line scan, preset, park action, etc.
* 33x optical zoom, 10X digital zoom, with 120 meters infrared night vision distance.
* thermal imaging 640*512 or 384*288, 35mm fixed lens.
* Temperature range can be measured, and early warning
* Support two line image through 4G full Netcom remote wireless video transmission, real-time smooth images.
* Support mobile phones and tablets to access the control ball through the client.
* TF card storage, support 256G.
* Support two-way voice intercom, support hand microphone intercom.
* Magnetic composite suction cup design, built-in large-capacity lithium battery, can realize one-key deployment.
* support GPS/beidou, support tracking loaction.
* Optional AI function, face capture recognition, human type detection, etc.
Specification
|
Protocol
|
ONVIF protocol, national standard GB28181, support to provide the bottom layer, assist in development
|
|
|
|
Configuration and Video
Browse
|
Configure
|
Network port
|
|
|
|
WEB way
|
Support (video can be browsed)
|
|
|
|
PC Client
|
Support (video can be browsed)
|
|
|
|
Mobile APP
|
Support (video can be browsed)
|
|
|
Input Channel
|
|
Built in one channel video and one channel audio
|
|
|
PTZ
|
Pan rotate range
|
360° continuous rotation
|
|
|
|
Pan rotate range
|
-30°-90°
|
|
|
|
PT Speed
|
Horizontal control speed 100°/s, vertical control speed 60°/s
|
|
|
|
Preset
|
255
|
|
|
|
Patrol
|
4
|
|
|
|
Line scan
|
support
|
|
|
|
Park action
|
support
|
|
|
Image parameters
|
sensor
|
1/2.8" High Performance Low Light CMOS Sensor ( IMX327 )
|
|
|
|
resolution
|
1080P(1920*1080 25/30f/s）
|
|
|
|
Optical zoom
|
33x(10X digital zoom)
|
|
|
|
Focal length
|
F =5.5-180mm
|
|
|
|
Iris
|
F1.6~F4.3
|
|
|
|
View angle
|
Wide:65.2°×56.9°Tele:3.3°×2.9°
|
|
|
|
Illumination
|
F1.6（W）,50 IRE），0.05 lx（1/30s）IR-CUT On，0.005 lx（1/4s）IR-CUT Off
|
|
|
|
Wide Dynamic
|
WDR
|
|
|
|
Day-night mode
|
ICR filter switching
|
|
|
Thermal imaging
|
Detector type
|
Alarm type uncooled
|
|
|
|
Resolution
|
640X512、384X288
|
|
|
|
Pixel spacing
|
17μm
|
|
|
|
Response band
|
8-14μm
|
|
|
|
Frame rate
|
50HZ
|
|
|
|
Lens focal length
|
Fixed 35mm
|
|
|
|
Lens F Value
|
F1.0-F1.2
|
|
|
|
Field of view
|
4.2°-3.3°~20.6°-16.5°
|
|
|
|
Grayscale alarm
|
Realize image tag alarm, serial communication alarm, IO alarm
|
|
|
|
Alarm response time
|
≤0.2S
|
|
|
|
polarity
|
Black hot/white hot
|
|
|
|
Pseudocolor
|
Support
|
|
|
|
Image Processing
|
Image detail enhancement (DDE), automatic gain control (AGC), digital filter noise reduction
|
|
|
|
Brightness and contrast adjustment
|
Manual /AUTO
|
|
|
|
Analog video output
|
1CH PAL
|
|
|
|
Digital video output
|
10-bit or 14-bit LVDS-H/F、10-bit or 14-bit LVCMOS、BT.656、BT.1120
|
|
|
|
Control interface
|
RS-232/RS-485/UART/RS-422
|
|
|
Infrared light parameters
|
Infrared power
|
1 high-power dot matrix infrared
|
|
|
|
Infrared angle
|
1x 15° lamp cup, 1x 60° lamp cup
|
|
|
|
Infraredcontrol method
|
PWM dimming
|
|
|
|
Infrared distance
|
Effective infrared distance 120 meters
|
|
|
4G
|
Wireless system
|
4G Full Netcom
|
|
|
|
Number of wireless cards
|
1 SIM card
|
|
|
|
Private Network
|
Network Customized
|
|
|
|
Antenna placement
|
built in
|
|
|
WIFI
|
Standard
|
IEEE 802.11a/b/g/n/ac 2.4G&5G
|
|
|
|
Distance
|
15m
|
|
|
|
Antenna placement
|
Built in
|
|
|
|
AP hot spot
|
Support
|
|
|
|
Support WIFI basic function settings
|
|
|
Packing & Delivery
Standard Export Carton
1 unit per carton
Carton Box Inner Size: 420mmX300mmX200mm
1 unit per carton
Carton Box Inner Size: 420mmX300mmX200mm
delivery method
diversified shipping method like by express like DHL and Fedex, by Air, by sea
