Quick Details
-
Warranty:
-
2 years
-
Brand Name:
-
LXBKZ
-
Model Number:
-
Y2-15000D
-
Place of Origin:
-
Zhejiang, China
-
Horsepower:
-
3HP-20HP
-
Structure:
-
Other
-
Power:
-
2.2KW-15KW
-
motor:
-
2.2KW-15KW
-
Product name:
-
Pump Control Panel
Quick Details
-
Application:
-
Commercial Buildings, Developing World Water Solutions, District Energy, Family Homes, Industrial Utilities, Irrigation and Agriculture, Raw Water Intake, Washing and Cleaning, Wastewater Transport and Flood Control, wastewater treatment, Water Distribution, Water Treatment Solutions, Other
-
Pressure:
-
High Pressure
-
Voltage:
-
380V-415VAC
-
Warranty:
-
2 years
-
Brand Name:
-
LXBKZ
-
Model Number:
-
Y2-15000D
-
Place of Origin:
-
Zhejiang, China
-
Horsepower:
-
3HP-20HP
-
Structure:
-
Other
-
Power:
-
2.2KW-15KW
-
motor:
-
2.2KW-15KW
-
Product name:
-
Pump Control Panel
1.Description of Pump Controller
Y series LCD display pump controller for single pump or double pumps .
Adopts the original imported microcomputer single chip technology which guarantees powerful functions,and has the advantage as easy and convenient installation and operation.
Unique non-contact induction technology enables no need of probes to achieve shutdown protection when the pump is running dry due to lack of water, thus realizing fully intelligent and unmanned operation.
It is a device designed to control and protect the operation of various water pumps up to 22KW, such as submersible pump,centrifugal pump,multistage pump, deep-well pump, sewage pump, booster pump, pipeline pump, ground pump and etc.
|
Type
|
Y2
|
|
|
|
|
|
|||||
|
Model
|
Y2-4KW
|
Y2-7.5KW
|
Y2-11KW
|
Y2-15KW
|
Y2-18.5KW
|
Y2-22KW
|
|||||
|
HorsePower (HP)
|
1-5.5HP
|
1.5-10HP
|
1.5-15HP
|
3-20HP
|
4-25HP
|
5.5-30HP
|
|||||
|
Rated Power
|
0.75-4KW
|
1.1-7.5KW
|
1.1-11KW
|
2.2-15KW
|
3-18.5KW
|
4-22KW
|
|||||
|
Max Current
|
18A
|
25A
|
32A
|
40A
|
50A
|
65A
|
|||||
|
Rated Input Voltage
|
single Phase 220-240VAC/ 3 Phase ,380-415VAC,50/60Hz
|
|
|
|
|
|
|||||
|
Qty.of Controlled Pump
|
Double pump
|
|
|
|
|
|
|||||
|
Display
|
LCD display
|
|
|
|
|
|
|||||
|
Signal Transmission Mode
|
Level float switch
Level probe Pressure switch Electric contact pressure gauge |
|
|
|
|
|
|||||
|
Water Level Indication
|
High/Middle/Low
|
|
|
|
|
|
|||||
|
Max.Control Distance
|
≤2000m without strong electric and electromagnetic fields
|
|
|
|
|
|
|||||
|
Over/under-voltage Range
|
304V-456V(adjustable)
|
|
|
|
|
|
|||||
|
Protections
|
1, dry run alarm and protection
2, overload alarm and protection
3, no load alarm and protection
4, water shortage alarm and protection
5, over-voltage alarm and protection
6, under-voltage alarm and protection
7, pump stalled alarm and protection
8, anti-seizing alarm and protection
9, short circuit alarm and protection
10, phase loss alarm and protection
|
|
|
|
|
|
|||||
|
Main Functions
|

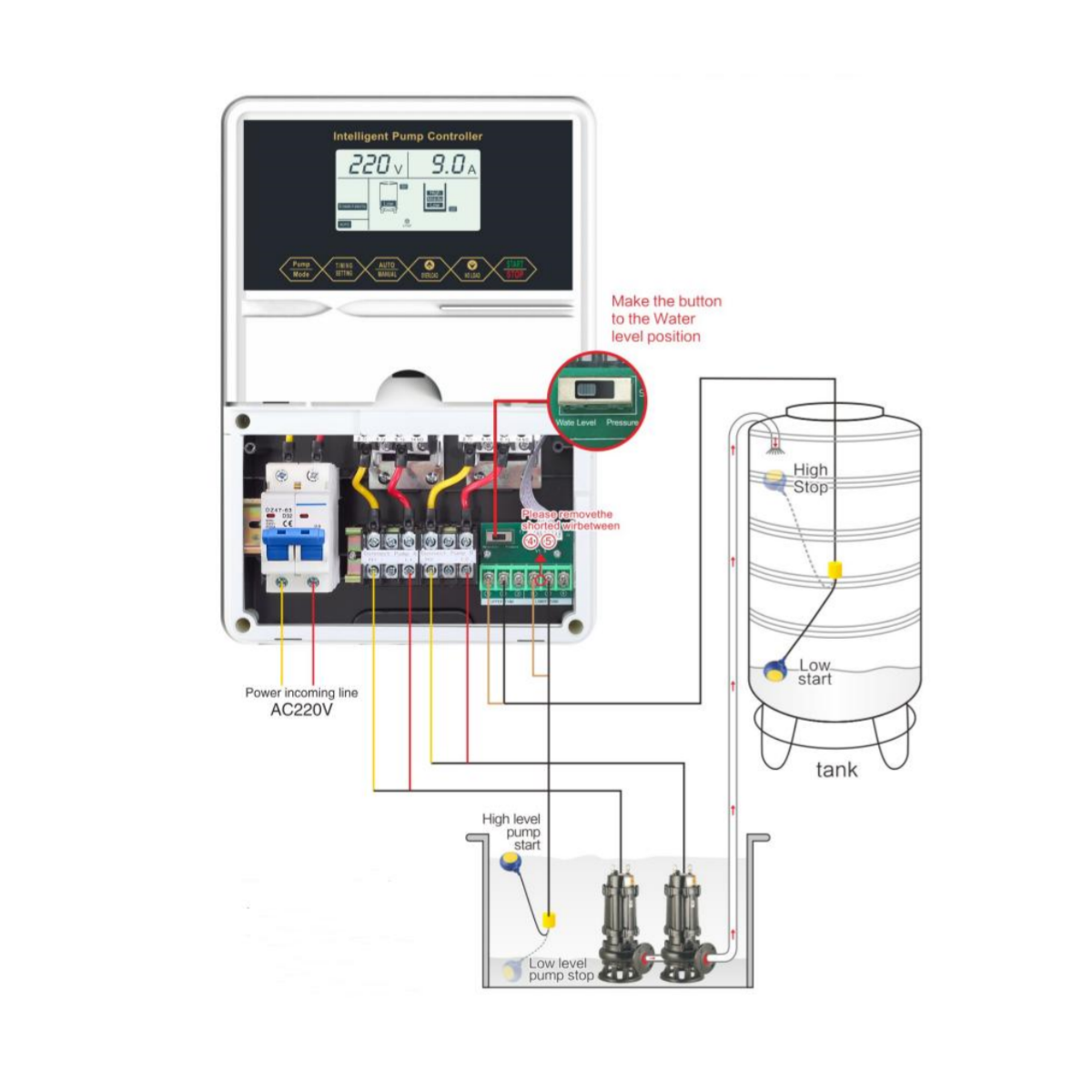

1,Water level control: level probes or float switch
2,Pressure control: electric contact pressure gauge or pressure switch
3,User interface: a user-friendly interface for configuring settings, monitoring operation, and accessing diagnostic information.
4,Operation mode: automatic/manual starts and stops
5,Fault indication: failure record, latest 10 pump failure reasons display, audio/light alarms.
6,Anti-rust protection, long-term non-use of the pump,15 days to start once for 3 seconds. 7,Setting protection current for motor overload/no-load,no-load delay restart time adjustable. 8,Automatic restart when voltage comes to normal rating after over- voltage/under-voltage protection.
9,Automatic restart after power failure recovery.
10,Automatic re-starting pump from dry running,restart time range 0- 720 minutes adjustable. 11,Restore factory setting: press both“Overload”and“NO-Load” for 3 seconds.
|
|
|
|
|
|
|||||
|
Product Size
|
320x220x125mm
|
|
|
|
|
|
|||||
|
Working temperature
Working humidity Degree of protection |
-25ºC-- +55ºC
20%--90%RH, no drips concreted IP54 Wall mounting |
|
|
|
|
|
|||||
Q:How to convert HP into KW ?
A:The conversion formula as :1HP=0.74KW . For example: 3HP=3x0.74KW=2.22KW.
Q:How to choose the power of your pump controller?
A:Normally we need choose bigger power to run the water pump or motors,.If the pump rated power is 4KW,Pump controller should choose
7.5KW.For Submersible pumps which used in the deep well,please check with us first .
Q:Can I have the samples of your pump controller ?
A:Yes, we can send you the pump controller samples for your testing .
Q:Can you provide OEM or ODM ?
A:Yes,we can make the orders according to your detailed request.
Q:what is your delivery time?
A:It takes 3-5 days for sample orders,and 15-20 days for orders.
A:The conversion formula as :1HP=0.74KW . For example: 3HP=3x0.74KW=2.22KW.
Q:How to choose the power of your pump controller?
A:Normally we need choose bigger power to run the water pump or motors,.If the pump rated power is 4KW,Pump controller should choose
7.5KW.For Submersible pumps which used in the deep well,please check with us first .
Q:Can I have the samples of your pump controller ?
A:Yes, we can send you the pump controller samples for your testing .
Q:Can you provide OEM or ODM ?
A:Yes,we can make the orders according to your detailed request.
Q:what is your delivery time?
A:It takes 3-5 days for sample orders,and 15-20 days for orders.
