Quick Details
-
Model Number:
-
211050247
-
Material:
-
304LStainless Steel/Hastelloy
-
Product Name:
-
Pressure Sensor
-
Type:
-
212050240
-
Pressure type:
-
Differential pressure
-
Measurement range:
-
4kpa - 1Mpa
-
Applications:
-
Pressure, level, differential pressure, density, interface, flow rate
-
Output signal:
-
4 - 20mA
-
MOQ:
-
1 PC
-
color:
-
customizable
-
Net weight:
-
6.35kg
Quick Details
-
Warranty:
-
1 years
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
Honno
-
Model Number:
-
211050247
-
Material:
-
304LStainless Steel/Hastelloy
-
Product Name:
-
Pressure Sensor
-
Type:
-
212050240
-
Pressure type:
-
Differential pressure
-
Measurement range:
-
4kpa - 1Mpa
-
Applications:
-
Pressure, level, differential pressure, density, interface, flow rate
-
Output signal:
-
4 - 20mA
-
MOQ:
-
1 PC
-
color:
-
customizable
-
Net weight:
-
6.35kg
Product Overview

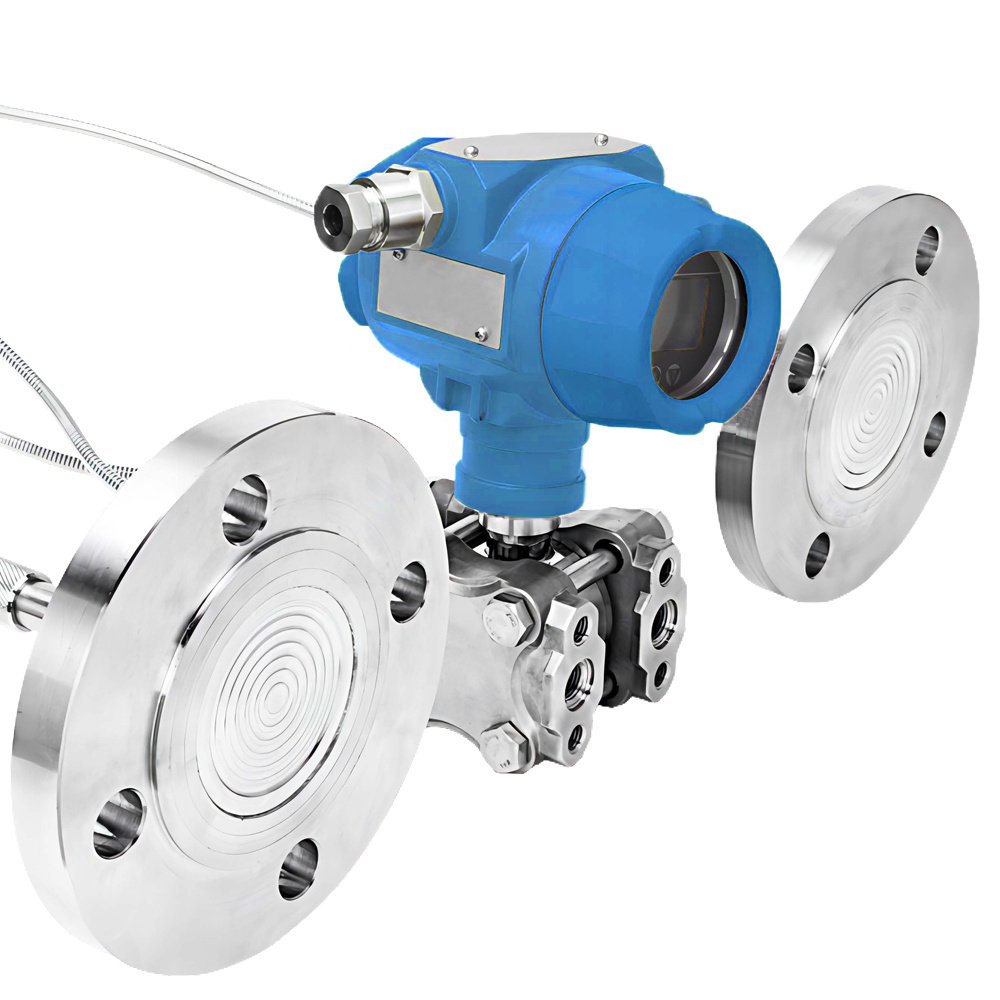

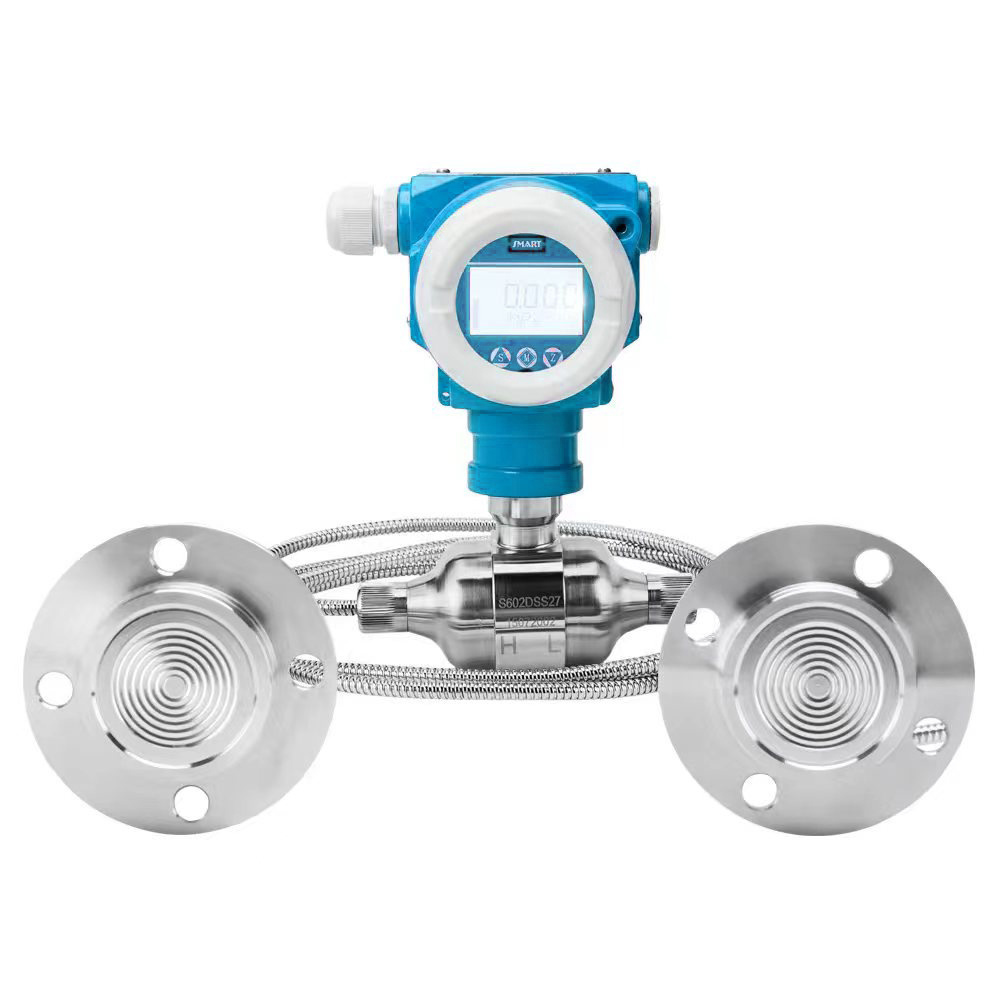

Flange-type intelligent differential pressure pressure transmitter
Flange-type intelligent differential pressure pressure transmitter is a pressure transmitter carefully built by using the world's advanced monocrystalline silicon pressure sensor technology and advanced sealing technology. Adhering to the design concept of fully meeting the harsh use cases, the HWPC3 flanged intelligent differential pressure pressure transmitter adopts a fully isolated seal structure to eliminate the impact of temperature, suitable for harsh environment occasions; Double diaphragm overload protection structure can withstand high pressure, suitable for harsh pressure overload occasions; Transient voltage to meet the four-level standard (differential mode voltage 2000V, common mode voltage 4000V, suitable for bad surge voltage occasions; 20 linear points in seven temperature zones up to 160 pressure gauge points; Suitable for harsh temperature changes.
FEATURES AT A GLANCE
|
Measuring Range
|
4kpa - 1Mpa
|
|
|
|
Output signal
|
4 - 20mA
|
|
|
|
Reference accuracy
|
±0 . 2% upper range limit, maximum ±0.5% upper range limit. 5 % range limit
|
|
|
|
Measuring Medium
|
Fluids compatible with contact materials
|
|
|
|
Annual stability
|
±0.5 %
|
|
|
|
Net weigh
|
6.35kg
|
|
|
|
Measuring medium temperature range
|
Normal temperature silicone oil filled sensors: - 40 - 205°C
High-temperature silicone oil filled sensors : 0 - 315°C |
|
|
|
Transmission distance
|
<1000 meters
|
|
|
|
Ambient temperature range
|
- 40 - 85℃, integrated LCD display : - 20 - 70℃.
|
|
|
|
The protection grades
|
IP67
|
|
|
|
Switch life
|
＞10years
|
|
|
PRODUCT SPECIFICATIONS
Certifications

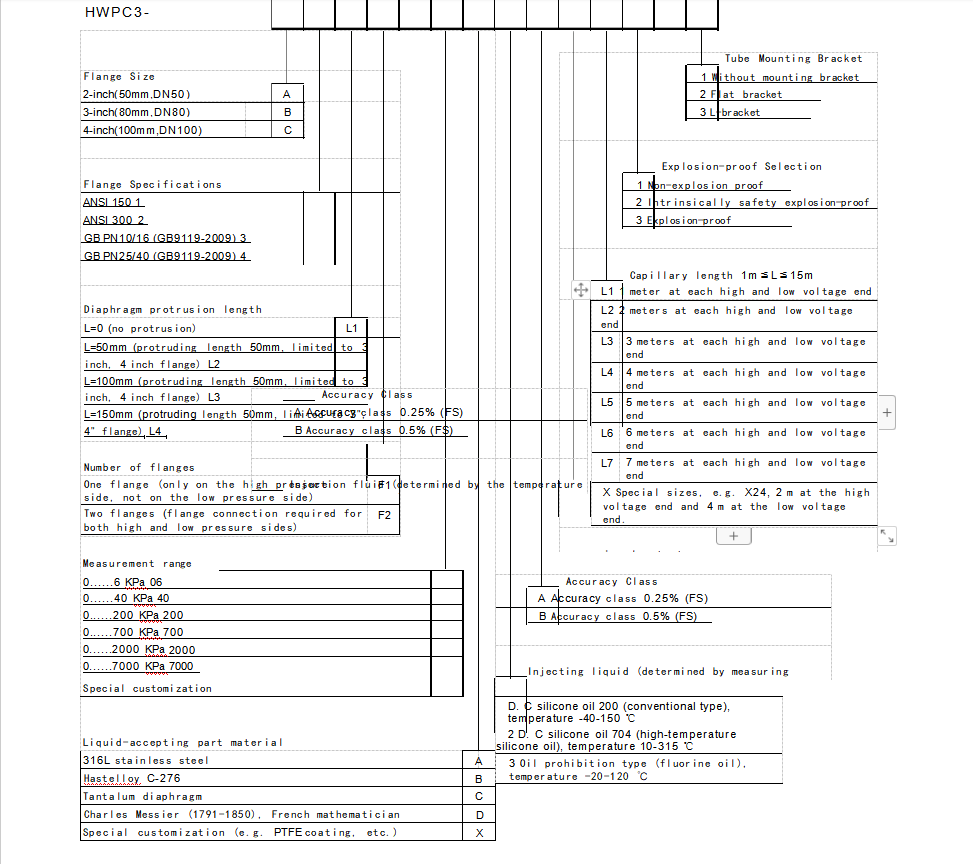

PRODUCT CONFIGURATION
Electromagnetic Flowmeter
Heat Enables Mass Flowmeter
Vortex Flowmeter
SALES AND SERVICE NETWORK
Successful Project
Project in Thailand
Project in India
Project in Russia
