Quick Details
-
Brand Name:
-
An Pump
-
Model Number:
-
AZ
-
Place of Origin:
-
Hebei, China
-
Horsepower:
-
1.1-800 kw
-
Cable Length:
-
100 M
-
Power:
-
50/60 HZ
-
Product name:
-
Slurry Pump
-
Material:
-
Cast Iron, Stainless Steel, etc
-
Installation:
-
Horizontal
-
Color:
-
Customer Specifications
-
Feature:
-
High Efficiency
-
Function:
-
Slurry Transmission
-
Motor:
-
Electric/Diesel
-
Pump Type:
-
Single Suction Pump
-
Medium:
-
Sewage, Mud, Gravel, etc
Quick Details
-
Application:
-
Industrial Utilities, Machining, Metal and Equipment Manufacturers, Mining industry
-
Pressure:
-
High Pressure
-
Voltage:
-
380v 440v
-
Brand Name:
-
An Pump
-
Model Number:
-
AZ
-
Place of Origin:
-
Hebei, China
-
Horsepower:
-
1.1-800 kw
-
Cable Length:
-
100 M
-
Power:
-
50/60 HZ
-
Product name:
-
Slurry Pump
-
Material:
-
Cast Iron, Stainless Steel, etc
-
Installation:
-
Horizontal
-
Color:
-
Customer Specifications
-
Feature:
-
High Efficiency
-
Function:
-
Slurry Transmission
-
Motor:
-
Electric/Diesel
-
Pump Type:
-
Single Suction Pump
-
Medium:
-
Sewage, Mud, Gravel, etc
Strong abrasive nonclogging mining tailing industry slurry transfer water pump

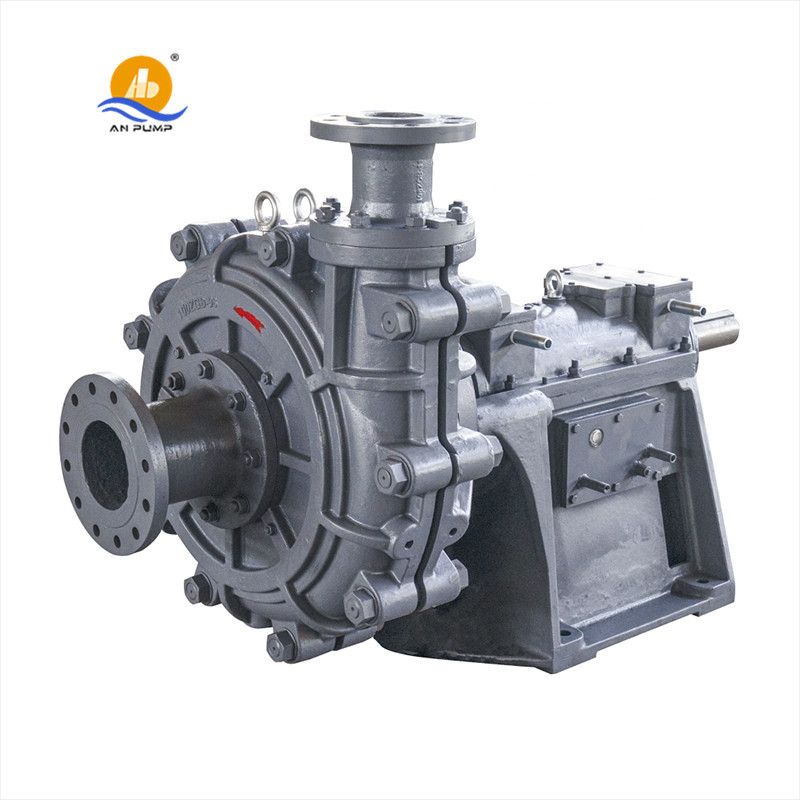

The AM series slurry pump is horizontal centrifugal slurry pump.
It is the heavy duty pump in mine and mineral processing for anti-abrasive and anti-corrosion conditions work.
The AM series slurry pump could handle all kinds of slurry pump, mud and sludge in dredge, lime in FGD processing at power plant.
There are different type of seal including gland packing seal, expeller seal and mechanical seal.
It could be driven by electric motor or diesel engine and we have engineer professional for your pump selection and related equipment select.
| Model | Capacity | Head | Speed | NPSHr | Efficiency | Shaft Power | Power | Dia. of pump | |
| (m3/h) | (m) | ( r/min) | (m) | (%) | (kw) | (kw) | Inlet | Outlet | |
| 1.5/1B-AM(R) | 3.6-22 | 5-70 | 1200-3800 | 3.2 | 20-40 | 0.34-9.36 | 1.5-15 | 38 | 25 |
| 2/1.5B-AM(R) | 7.2-50 | 7-61 | 1200-3200 | 3 | 18-45 | 0.93-13.5 | 1.5-15 | 51 | 38 |
| 3/2C-AM(R) | 21.6-89 | 13-63 | 1300-2700 | 3 | 45-60 | 1.9-24.1 | 4-30 | 76 | 51 |
| 4/3C-AM(R) | 28.8-155 | 7-44 | 1000-2000 | 2.2-6 | 50-74 | 1.73-22.54 | 5.5-30 | 102 | 76 |
| 4/3D-AM(R) | 28.8-155 | 7-44 | 1000-2000 | 2.2-6 | 50-74 | 1.73-22.54 | 5.5-37 | 102 | 76 |
| 6/4D-AM(R) | 72-360 | 12.6-54 | 800-1480 | 3-6.8 | 50-68 | 6.27-51.07 | 15-55 | 152 | 102 |
| 6/4E-AM(R) | 93.6-385 | 21.7-58 | 1050-1600 | 3-7.8 | 50-68 | 11.9-101 | 22-110 | 152 | 102 |
| 8/6E-AM(R) | 126-648 | 10-58 | 500-1100 | 2-7.5 | 51-72 | 8.1-103 | 22-110 | 203 | 152 |
| 10/8ST-AM | 216-972 | 11-46 | 400-730 | 2-8.5 | 50-71 | 16.47-158 | 45-250 | 254 | 203 |
| 12/10ST-AM | 316.8-1620 | 10-55 | 350-730 | 2-7.2 | 60-80 | 18.26-249 | 30-380 | 305 | 254 |
| 14/12ST-AM | 504-2455 | 13-61 | 300-590 | 2-12.8 | 60-77 | 36.6-449 | 55-480 | 356 | 305 |
How can I make order online?
Send email or message(whatsApp/ wechat) us.you can ask any question ,after we confirm the detail, we can make order.
Can you produce the pump with my own brand?
Yes, we have been offering OEM service for 30 years.
Could we pay a visit to your factory?
Yes, you are always welcome to visit our factory.
Is there any after-sales service?
Yes, we can arrange our engineer to go to your application site for assembly or maintenance.
Can you produce goods with special specification?
First of all, we need to know the specification in details, and then we need to check with our technology department. We will give customers satisfying reply as soon as possible
