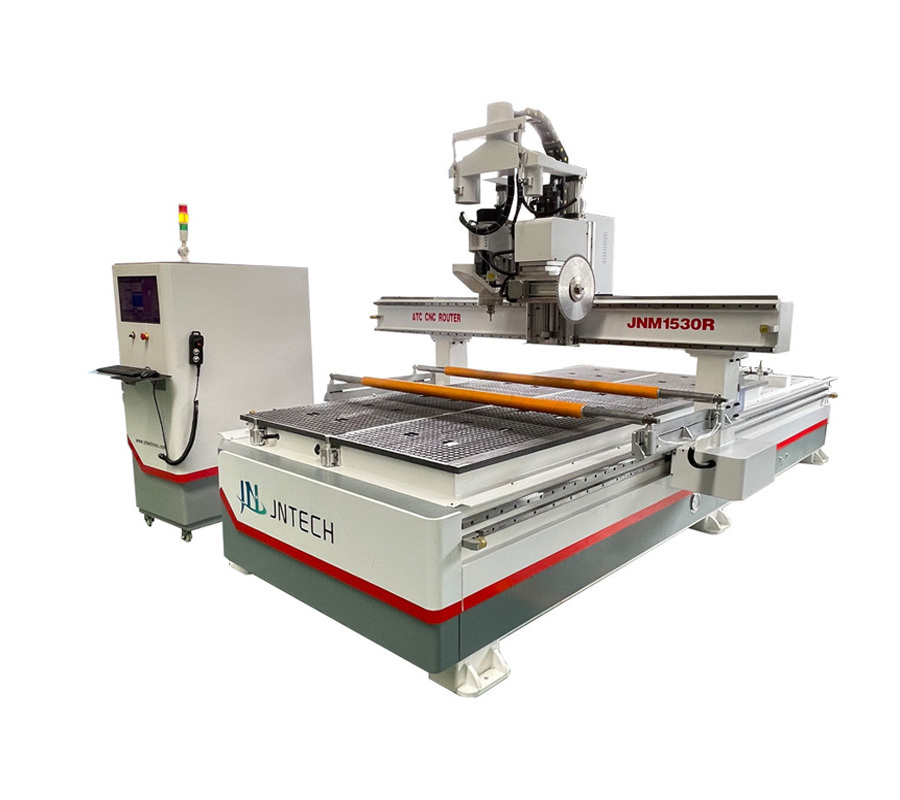

China ATC CNC Router 1325 3d spindle wood cutting machine circular saw door cabinet cutting machine

China ATC CNC Router 1325 3d spindle wood cutting machine circular saw door cabinet cutting machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $15000

≥3 Sets

US $6000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Positioning Accuracy (mm):: 0.1 mm

Travel (X Axis)(mm):: 1500 mm

Travel (Y Axis)(mm):: 3000 mm

Repeatability (X/Y/Z) (mm):: 0.01 mm

Spindle Motor Power(kW):: 9kw

Place of Origin:: Shandong, China

Brand Name:: JNTECHCNC

Voltage:: AC380V/50HZ

Dimension(L*W*H):: 1500*3000*300mm

Power (kW):: 25

Weight (KG):: 2500

Product name:: 1325 cnc router machine with saw blade 4axis cnc router machine

Model:: JNM1325LR

Control system:: Taiwan LNC Control System

Working area:: 1500*3000mm

Function:: Spindle cutting+Saw blade cutting

Spindle:: 9KW HQD Air Cooling Spindle

Motor and driver:: Japan Yaskawa Sevor Motor and driver

Table:: Vacuum Adsorption + T-slot

Guide rail:: Taiwan Hiwin Square Guide Rail

Key words:: Wood cutting engraving and saw cutting big thickness materials

Quick Details

Working Table Size(mm):: 1500×3000

Machine Type:: CNC Router

Range of Spindle Speed(r.p.m):: 0 - 24000 rpm

Positioning Accuracy (mm):: 0.1 mm

Travel (X Axis)(mm):: 1500 mm

Travel (Y Axis)(mm):: 3000 mm

Repeatability (X/Y/Z) (mm):: 0.01 mm

Spindle Motor Power(kW):: 9kw

Place of Origin:: Shandong, China

Brand Name:: JNTECHCNC

Voltage:: AC380V/50HZ

Dimension(L*W*H):: 1500*3000*300mm

Power (kW):: 25

Weight (KG):: 2500

Product name:: 1325 cnc router machine with saw blade 4axis cnc router machine

Model:: JNM1325LR

Control system:: Taiwan LNC Control System

Working area:: 1500*3000mm

Function:: Spindle cutting+Saw blade cutting

Spindle:: 9KW HQD Air Cooling Spindle

Motor and driver:: Japan Yaskawa Sevor Motor and driver

Table:: Vacuum Adsorption + T-slot

Guide rail:: Taiwan Hiwin Square Guide Rail

Key words:: Wood cutting engraving and saw cutting big thickness materials

China ATC CNC Router 1325 3d spindle wood cutting machine circular saw door cabinet cutting machine

Product Description

----JNM1325LR Saw Cutting ATC CNC Router Machine is a new model ATC CNC Router machine, it has cnc router 3axis all functions, cutting engraving milling etc

----More important: Adding Saw cutting can rotation 180°, so saw can cut all direction, XY axis direction 0-180°Forward and reverse direction，more and more buyer choice this machine, working speed is fast, saw cutting fast and cutting deepth, saw diameter: 100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 500mm etc.

---- ATC CNC Router 1325 3d spindle wood cutting machine circular saw door cabinet cutting machine 4axis cnc router machine with saw blade cutting on Foam, MDF Plywood, Solid Wood, Furniture, Cabinet, etc.

Product Presentation

ATC CNC Router 1325 3d spindle wood cutting machine circular saw door cabinet cutting machine s pecification:

#Model Name:JNM1325R (CNC Wood Router with Saw Blade Cutting)
#Working Size:1300*2500*350mm
#Spindle:China HQD ATC 9.0kw Air cooling spindle, 24000RPM
#12pcs Follow Liner tool change+ISO30 tool holder 12pcs+ ER32 tool collect 12pcs
#Saw Blade:7.5kw Saw Blade Head one pcs(Can cut all direction), diameter 350mm
#Control System:Taiwan LNC Control System
#2 pcs Press wheel for stable Wood material
#Motor and Driver:Japan Yskawa servo motor and driver 1300w
#Reducer:Japanese Shimpo
#Inverter:11kw Fuling Inverter
#Vacuum+T slot Table
#7.5kw Air Vacuum Pump
#Tool sensor
#Taiwan H-Win square guide rails with 30mm
#Japanese Omron Original Limit Switch
#Automatic postion cylinder 6pcs

Machine working speed	30-35m/min
Machine accuracy	0.05mm
Motor and drivers	Japan Yaskawa servo motor and drivers
Software	Powermill

ATC CNC Router 1325 3d spindle wood cutting machine circular saw door cabinet cutting machine App lic ation:

1. Furnitures: kitchen cabinets, closets, entertainment centers, mdf doors.
2. Woodworking: voice box, game cabinets, computer tables, sewing machines table, instruments.
3. Panel Processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti bate
board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
4. 1325 1530 4axis cnc router machine Decorations: acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum.
5. ATC CNC Router 1325 3d spindle wood cutting machine circular saw door cabinet cutting machine can engrave all kinds of furniture decoration,solid wood furniture, mahogany furniture, MDF paint door, solid wood door, composite door, cupboard door and window, bedside cabinet, folding screen.

Detailed Images

9kw air cooling spindle+7.5kw saw blade

-9.0kw air cooling spindle, 0-24000RPM, peak power can reach 9.5kw, best popular during market. China ATC 9kw HQD spindle makes machine with high precision, long service time and stable movement.

-7.5kw saw cutting, with 350mm diameter, it can cut big thickness foam, wood, plywood .

More important is saw blade can cut 0-180 degree all directions, it suitable for furniture, cabinet and foam industry.

Taiwan LNC control system

Taiwan LNC control system is stable and popular during market, china furniture and cabinet use it a lot, 90% client will choice it.

It supports 3axis, 4axis,5axis etc, easy to operate and all function included, it is more cheaper than Taiwan syntec, but functions are same.

Control switch and emergency all install on control panel.

Automatic Press Roller

Two pcs rubber press roller for stable wood, plywood, MDF, Foam, PET Foam etc.

It is convenient to stable material, big power, no need vacuum pump to absorbtion materials.

Japan Yaskawa drivers

Our atc cnc router machine use famous Japan Yaskawa servo 1300w Motor and drivers.

High quality and stable servo motor and driver is very important on a cnc router machine, not lose step and can keep big power and accuracy.

12pcs Liner tool changer

JNM1530LR ATC CNC Router with saw blade machine also with 12 pcs liner tool change, it can change different model and length tools and saw, smart system change tools fast, save manuel change tools times.

You also can choice 6pcs, 8pcs, 10pcs,14pcs,16pcs, 18pcs, 20pcs, 24pcs etc.

Customize machine design

We can deisgn your logo, machine color, machine style etc.

Tell us your idea , jntechcnc company engineer will do special machine for you.

Free Spare Parts Shipping with Machine

Our all ATC CNC Rouer saw cutting machine will have 3 years warranty.

Usual we will give free 10meter Rubber roller, 12pcs ISO3- tool holder, 12pcs ER32 Tool collector, free woodworking tools, Tool Fork, machine foot support, free dust pipe and dust hole, etc.

Company Introduction

Jinan JNTECH Machinery Co.,Ltd was founded in 2010, which is a professional China CNC machine manufacturer for CNC router machines. Machine structure use own 5 milling machine can keep high accuracy.

Packing&Shipping

JNTECHCNC JNM1530LR ATC CNC Router Machine Packing and ready to shipping to Indian

1. The innermost layer is EPE pearl cotton film package.
2. The middle layer is wrapping up with environmental protection material.And the outermost layer is winding up with PE stretch film.
3. Plywood packing and steel strip outside fixed the box.
4. Finishing packing by normal container or frame container.

FAQ

1. Can I get free training for Automatic Tool Change Machine?
Of course, you can get free training in our factory and we can also send our technicians to your factory to tech you how to
install and operate the automatic tool change machine,

2. Which kind of materials can be processed on this machine?
Foam,Wood, mdf, stone, acrylic, glass, plastic, foam, aluminium, Copper,and almost all kinds of non-steel materials.

3. Are you a factory or trading company? A: We are the manufacturer and we have 10 years factory experience.As only the machine made by ourself, the quality can be trusted, and the most important thing is that we can do better after-sales service.We know how to fix the problem of every part easliy, so welcome to visit to our factory.

Customer Photos

Canada Client Feedback of JNM1530C ATC CNC Router

Canada Client Purchased JNTECHCNC JNM1530C ATC CNC Router with carsouel tool change model, client is very happy with us machine working and after sale service, if you want to visit our machine in Canada, pls contact me freely.
