Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HWASEN
-
Model Number:
-
LQ-800
-
Voltage:
-
380v/220v
-
Dimension(L*W*H):
-
3.2x1.2x1.7m
-
Weight:
-
1000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
bag type:
-
flat bag
-
sealing:
-
hot sealing
-
cutting:
-
cold cutting
-
Bag Width:
-
760mm
-
Bag length:
-
1500mm
-
drive motor:
-
servo motor
-
computer:
-
touch screen
-
color tracking:
-
photo-sensor
-
hole puncher:
-
can add it
Quick Details
-
Machine Type:
-
Cutting Machine
-
Bag Type:
-
Shopping Bag
-
Material:
-
Plastic
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HWASEN
-
Model Number:
-
LQ-800
-
Voltage:
-
380v/220v
-
Dimension(L*W*H):
-
3.2x1.2x1.7m
-
Weight:
-
1000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
bag type:
-
flat bag
-
sealing:
-
hot sealing
-
cutting:
-
cold cutting
-
Bag Width:
-
760mm
-
Bag length:
-
1500mm
-
drive motor:
-
servo motor
-
computer:
-
touch screen
-
color tracking:
-
photo-sensor
-
hole puncher:
-
can add it
LQ-800 double layers heat sealing cold cutting plastisc flat bag t-shirt bag making machine
1 .Feature:
1 ) Automatic counting and alarming.
2 ) With accurate photocell eye tracking ,stops automatically in case of wrong color marks.
3 ) The bag-making length is controlled by button,applicable for the various plastic film of low density polyethylene(LDPE),high density polyethylene(HDPE) thin film to sealing and cutting natural and color bags,etc.
4 ) Widely used for packing food,cloth,industrial products and electric appliances.
2 . Main Technical Specification
|
Model |
L Q-800 |
|
Max. Bag w idth |
200- 7 5 0mm |
|
Max. Bag length |
1 2 00mm |
|
Film t hickness |
0.006-0.10mm |
|
Work line |
2 layers |
|
Error in Length |
±1mm |
|
Bag-making Speed |
30-120pcs/min× 2 |
|
Main motor |
1.5KW |
|
Heating Power |
3KW |
|
Total Power |
5.5KW |
|
Weight of Machine |
900KG |
|
Overall Dimensions |
3. 6 ×1 .4 × 1.9M |
3. Main Configuration List :
|
Name |
Configuration |
Origin |
|
Main motor |
1.5KW,1set |
SIEMENS, GERMANY |
|
Inverter |
1.5KW, 1set |
PANASONIC, JAPAN |
|
Computer XC-2005B |
1set |
XUNCHENG, JIANGSU |
|
Driver motor -step motor |
1.5KW,1set |
SUCHUAN, SHANGHAI |
|
Feed motor |
2pcs |
DULY, ANHUI |
4. Machine Pictures show
1) two roll feeding
2)two layers sealing blade

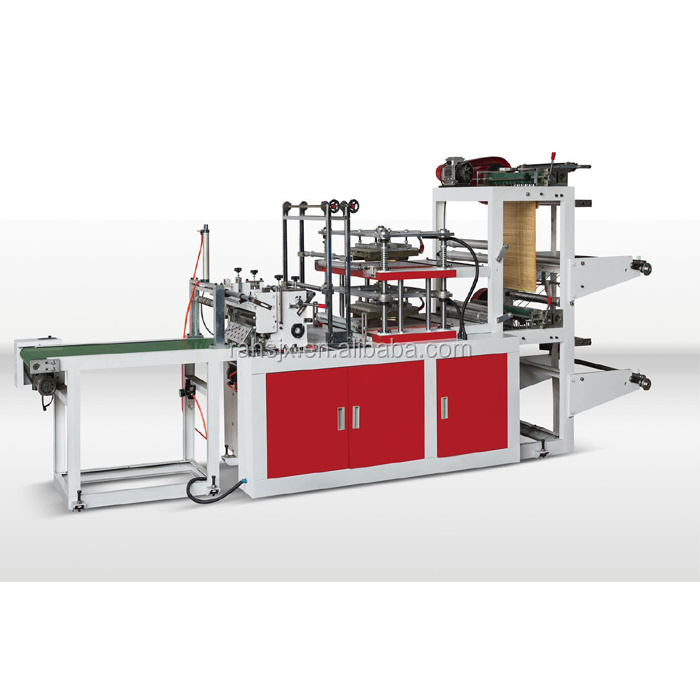

3)machine front view
4)computer panel
4)machine side view
5)bag sample show
