Lighter Weight
✖
Partial State of Charge Tolerant
✖
Lower Total Cost of Ownership
✖ Highly Efficient ✖ Longer Life ✖ Maintenance-Free ✖ More Useable Capacity
✖
Extra Safe
- Product Details
- {{item.text}}

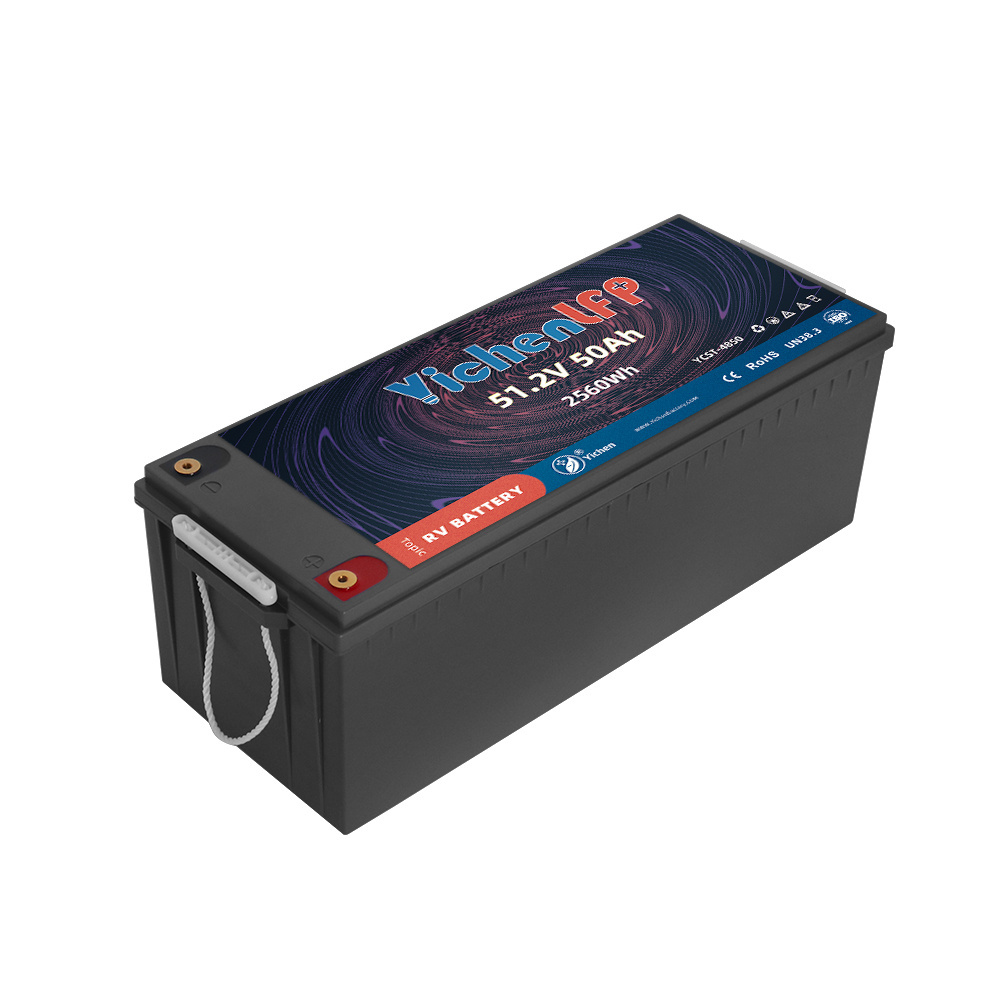

Quick Details
-
Brand Name:
-
YICHENLFP
-
Model Number:
-
YCST-4850-P
-
Battery Size:
-
LifePO4 48V 50Ah
-
Place of Origin:
-
GUA, China
-
Weight:
-
22 KG
-
The charging ratio:
-
0.2 C
-
The discharge rate:
-
0.2 C
-
Battery Composition:
-
LiFePO4
-
Nominal Voltage:
-
51.2 V
-
Nominal Capacity:
-
50 Ah
-
Charge Mode:
-
CC-CV
-
Cycle Life:
-
4000 Cycles
-
Dimension:
-
520*269*220 mm
-
Protection Grade:
-
IP67
-
Battery Cell:
-
Prismatic Cells
-
OEM/ODM:
-
Acceptable
-
MOQ:
-
50 Pcs
-
Warranty:
-
3 Years
-
Certification:
-
MSDS,UN38.3,CE
Quick Details
-
Storage Type:
-
dry, cool and ventilation
-
Anode Material:
-
LFP
-
Application:
-
BOATS, SUBMARINES, Trolling Motor
-
Brand Name:
-
YICHENLFP
-
Model Number:
-
YCST-4850-P
-
Battery Size:
-
LifePO4 48V 50Ah
-
Place of Origin:
-
GUA, China
-
Weight:
-
22 KG
-
The charging ratio:
-
0.2 C
-
The discharge rate:
-
0.2 C
-
Battery Composition:
-
LiFePO4
-
Nominal Voltage:
-
51.2 V
-
Nominal Capacity:
-
50 Ah
-
Charge Mode:
-
CC-CV
-
Cycle Life:
-
4000 Cycles
-
Dimension:
-
520*269*220 mm
-
Protection Grade:
-
IP67
-
Battery Cell:
-
Prismatic Cells
-
OEM/ODM:
-
Acceptable
-
MOQ:
-
50 Pcs
-
Warranty:
-
3 Years
-
Certification:
-
MSDS,UN38.3,CE
Product Description
We offer the longest lasting and most powerful 48V lithium trolling motor batteries on the market. Our trolling motor batteries are built with a proprietary software and a design construction that allows for more amp hours in a smaller battery size. The result is the highest energy density marine battery on the market today with up to 10X the life cycle of conventional marine batteries,
our 48V lithium batteries will keep you out on the water all day long. Whether you’re trolling in calm weather or fighting the
wind, our batteries will back you up even with load-heavy consumption. YICHENLFP batteries are designed for deep cycle
applications in diverse marine environments, seasons, and temperatures.
Features
1. Lighter in weight, heavier on power
2. Excellent cycle life. Our battery has more than 4000 cycle times and there is a 3 years warranty
3. Deep cycle. can be discharged to 90% vs lead acid recommended 50% depth of discharge.
4. Maintenance free or automatic repair
5. Safer performance. Our batteries have passed different safety tests.
6. IP67 waterproof ratings. Suitable for marine use.
our 48V lithium batteries will keep you out on the water all day long. Whether you’re trolling in calm weather or fighting the
wind, our batteries will back you up even with load-heavy consumption. YICHENLFP batteries are designed for deep cycle
applications in diverse marine environments, seasons, and temperatures.
Features
1. Lighter in weight, heavier on power
2. Excellent cycle life. Our battery has more than 4000 cycle times and there is a 3 years warranty
3. Deep cycle. can be discharged to 90% vs lead acid recommended 50% depth of discharge.
4. Maintenance free or automatic repair
5. Safer performance. Our batteries have passed different safety tests.
6. IP67 waterproof ratings. Suitable for marine use.
Product Paramenters
|
Electrical Characteristics
|
Model number
|
YCST- 4850-P
|
|
|
Nominal Voltage
|
51.2 V
|
|
|
Nominal capacity
|
50 Ah
|
|
|
Energy
|
2560 Wh
|
|
|
Internal Resistance
|
≤ 20 mΩ
|
|
|
Cycle life
|
≥4000 cycles @1C 80%DOD
|
|
|
Months Self Discharge
|
<3%
|
|
|
Efficiency of Charge
|
100% @0.5C
|
|
|
Efficiency of Discharge
|
96~99% @1C
|
|
Standard Charge |
Charge Cut-off Voltage
|
58.4±0.2V
|
|
|
Charge Mode
|
0.2C to 58.4V, then 58.4V,charge current to 0.02C (CC/CV)
|
|
|
Standard Charge Current
|
10 A
|
|
|
Max. Charge Current
|
50 A
|
|
Standard Discharge |
Continuous Current
|
10 A
|
|
|
Max. Pulse Current
|
100 A
|
|
|
Discharge Cut-off Voltage
|
40 V
|
|
Environmental |
Charge Temperature
|
0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity
|
|
|
Discharge Temperature
|
-20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity
|
|
|
Storage Temperature
|
0℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity
|
|
|
Water Dust Resistance
|
IP67
|
|
|
Plastic Case
|
ABS
|
|
|
Dimensions (mm)
|
520*269*220 mm
|
|
|
Weight
|
22 kg
|
|
|
Terminal
|
M8
|
|
Function
|
|
Blue tooth
|
|
Color
|
|
Black
|
Advantages
YCSTPOWER Lithium Batteries for Trolling / Marine / Boat
Increase productivity and eliminate maintenance with our 12-volt, 24-volt and 36-volt lithium deep cycle batteries.
|
ITEM
|
Capacity
|
Size(mm)
|
|
YCST-1280E
|
12V80AH
|
260*168 *209
|
|
YCST-12100E
|
12V100AH
|
330*172*215
|
|
YCST-24100E
|
24V80AH
|
265*240*170
|
|
YCST-24200E
|
24V200AH
|
330*300*180
|
|
YCST-24550E
|
24V150AH
|
400*350*250
|
|
YCST-3660E
|
36V60AH
|
550*185*280
|
|
YCST-36100E
|
36V100AH
|
600*225*210
|
|
YCST-36120E
|
36V120AH
|
550*350*300
|
Recommend Products
Certificate
Certification support
About production:
1. Our current production capacity is about 5300KWH / Month ( ≈ { 48V 100Ah } * 1000pcs / Month ) . If your monthly demand exceeds 5300KWH and you need our production , Please contact our salesperson three months in advance.
2. We are a medium-sized battery manufacturer . In addition to samples , the customization of individual products required by individuals will lead to very high
costs for you. The cost of some customization requirements such as mold opening may even be much higher than the retail price . Therefore, if you buy them for personal use,we recommend Purchasing directly by local merchants .
costs for you. The cost of some customization requirements such as mold opening may even be much higher than the retail price . Therefore, if you buy them for personal use,we recommend Purchasing directly by local merchants .
Business Cooperation
Our customer feedback is very good,
S
tarting batteries and
E
nergy storage batteries are our main advantages.
In addition, the potential of new energy is very promising. So we are looking for the agents and warehouses all over the world. If you are interested in working with us, please enter the command in the message:
Cooperation.
Packing & Delivery
T
o better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
