Quick Details
-
Warranty:
-
1 year
-
Brand Name:
-
RANKING
-
Model Number:
-
FP-18-12b
-
Place of Origin:
-
Fujian, China
-
Outlet Size:
-
3/8'' (10mm) NPT, 3/8'' (10mm) NPT
-
Power:
-
168 W, 168 W
-
motor:
-
Thermal Protection
-
Thermal Protection:
-
Yes
-
Flow:
-
18 LPM / 4.75 GPM
-
Max lift:
-
39.3 ft (12m)
-
Max Fluid Temp:
-
248 °F (120 °C)
-
Duty Circle:
-
intermittent
-
Fuel:
-
Battery, Solar Power, Transformer, Electric
-
Amps:
-
14A
Quick Details
-
Application:
-
Automotive Industry, Food and Beverage Industry
-
Pressure:
-
Other
-
Voltage:
-
12V, 12V DC
-
Warranty:
-
1 year
-
Brand Name:
-
RANKING
-
Model Number:
-
FP-18-12b
-
Place of Origin:
-
Fujian, China
-
Outlet Size:
-
3/8'' (10mm) NPT, 3/8'' (10mm) NPT
-
Power:
-
168 W, 168 W
-
motor:
-
Thermal Protection
-
Thermal Protection:
-
Yes
-
Flow:
-
18 LPM / 4.75 GPM
-
Max lift:
-
39.3 ft (12m)
-
Max Fluid Temp:
-
248 °F (120 °C)
-
Duty Circle:
-
intermittent
-
Fuel:
-
Battery, Solar Power, Transformer, Electric
-
Amps:
-
14A

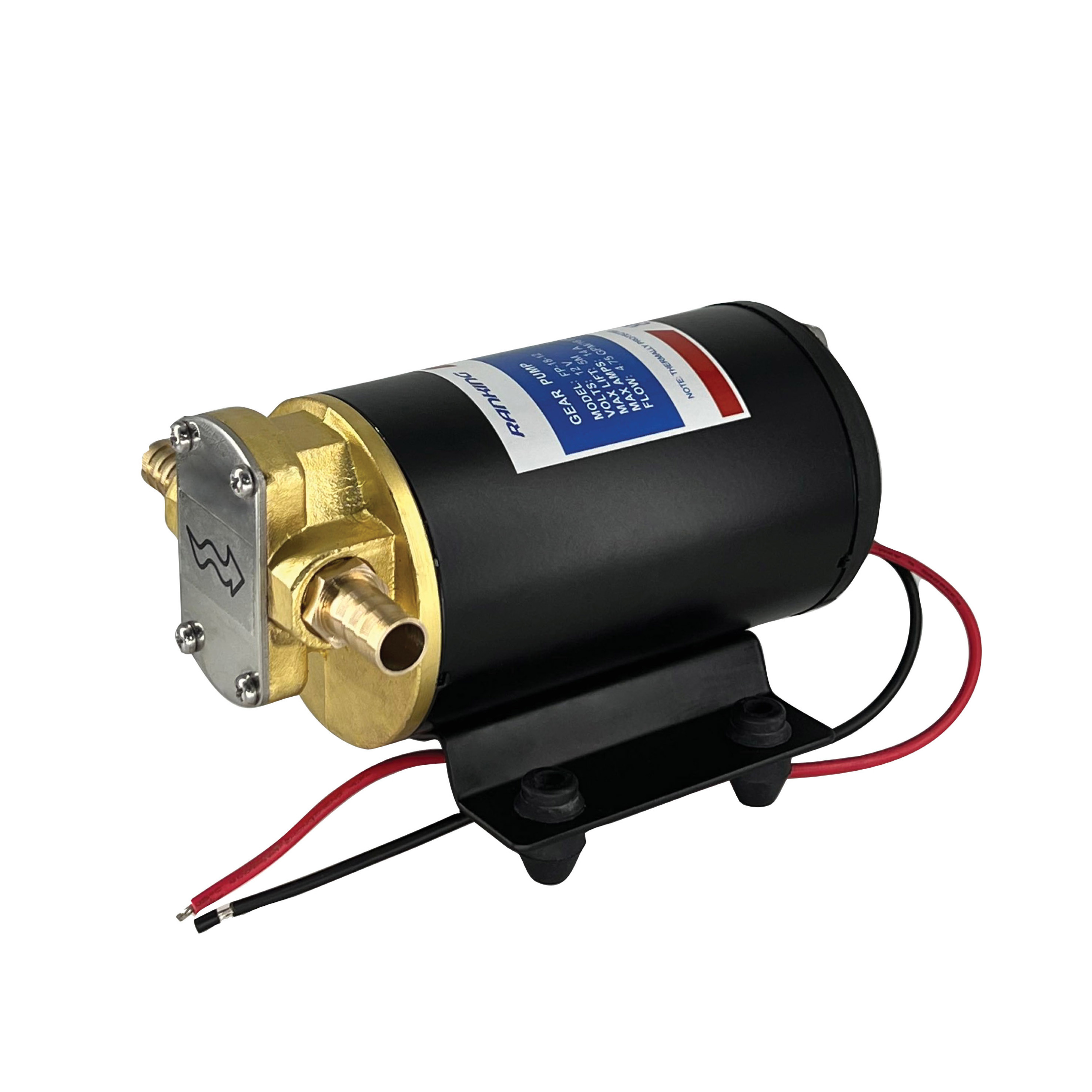

Product Description
|
Voltage
|
12V DC
|
|
Flow
|
18 LPM / 4.75 GPM
|
|
Amps
|
14A
|
|
Power
|
168 W
|
|
Parts
|
3/8'' (10mm) NPT, 1/2''(12mm) Barbed Fittings Included
|
|
Self Priming
|
2.5M
|
|
Motor
|
Permanent Magnet
Thermally Protected
Shaft Ball TypeShaft Bearing Reversible
|
APPLICATION
Salt Water, l
iquid replacement and transfer of large trucks, engineering vehicles, harvesters and small refueling equipment, including diesel, engine oil, lubricating oil, kerosene and other high-viscosity oily liquids (Except gasoline petroleum fuel).
(contact us if you need FOOD GRADE/ANTI-CORROSION version)
Specification
MATERIAL
|
Housing
|
Steel
|
|
Pump Head & Gear
|
Copper
|
|
Fasteners
|
Stainless Steel
|
|
Shaft
|
Stainless Steel
|
|
Motor
|
Copper Coils Motor
|
PACKING
|
Unit Pump Weight
|
5.07lbs (2.3kg)
|
|
Selling Unit Size (L x W x H)
|
8.46" x 5.31" x 4.33"
(21.5x 13.5 x 11cm) |
|
Unit Weight
|
5.95lbs (2.7kg)
|
|
Master Carton Size (L x W x H)
|
25.79"x 14.37 " x 9.45"
(70x 25 x 24cm) |
|
Master Carton Qty
|
10 pcs
|
|
Master Carton Weight
|
57.32lbs (26 kg)
|
