Quick Details
-
Place of Origin:
-
Shandong Province
-
Brand Name:
-
Dingrun
-
Year:
-
NEW
-
Voltage:
-
optional
-
Weight (T):
-
28 T
-
Model Number:
-
Y32-800T
-
Motor Power (kw):
-
74 kw
-
Warranty:
-
1 year
-
Product Name:
-
salt block hydraulic press machine
-
Power Source:
-
Hydraulic
-
Type:
-
animal salt brick hydraulic press machine
-
Application:
-
animal licking salt block making
-
Advantage:
-
High Efficiency, Long Service Life, Higher Stability
-
Max opening height:
-
1600 mm
-
Working table size:
-
1400*1200mm
-
Slide Speed(Idle):
-
340mm/s
-
Slide Speed(Working):
-
16-24mm/s
-
Slide Speed(Return):
-
260mm/s
-
Certification:
-
CE
Quick Details
-
Machine Type:
-
Four-column Three-beam Hydraulic Press
-
Slide Stroke (mm):
-
600
-
Return Force (kN):
-
800 kN
-
Place of Origin:
-
Shandong Province
-
Brand Name:
-
Dingrun
-
Year:
-
NEW
-
Voltage:
-
optional
-
Weight (T):
-
28 T
-
Model Number:
-
Y32-800T
-
Motor Power (kw):
-
74 kw
-
Warranty:
-
1 year
-
Product Name:
-
salt block hydraulic press machine
-
Power Source:
-
Hydraulic
-
Type:
-
animal salt brick hydraulic press machine
-
Application:
-
animal licking salt block making
-
Advantage:
-
High Efficiency, Long Service Life, Higher Stability
-
Max opening height:
-
1600 mm
-
Working table size:
-
1400*1200mm
-
Slide Speed(Idle):
-
340mm/s
-
Slide Speed(Working):
-
16-24mm/s
-
Slide Speed(Return):
-
260mm/s
-
Certification:
-
CE

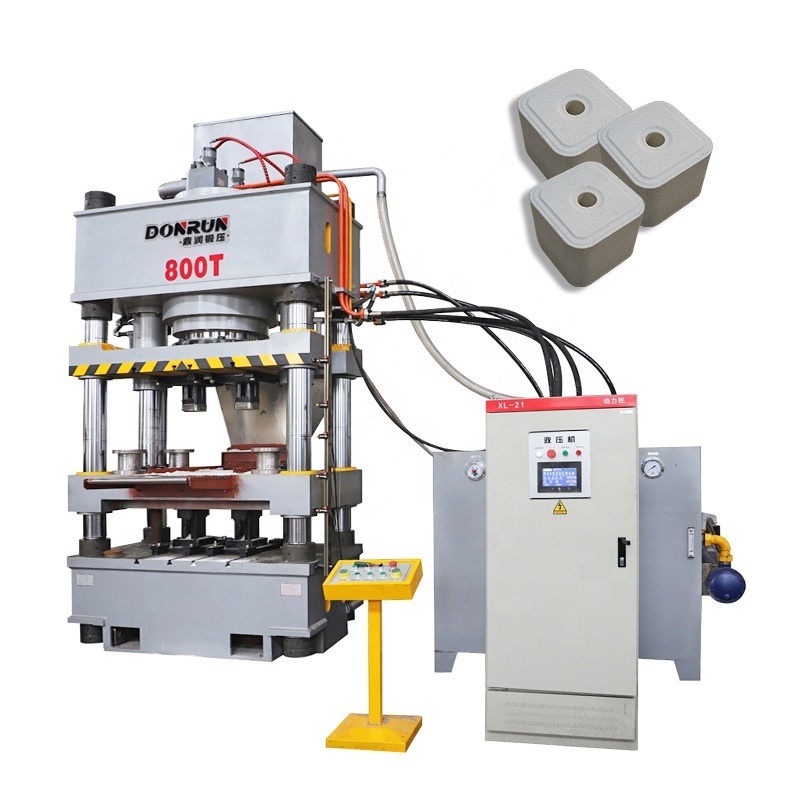

Y32-800T Ox Cow beef cattle boeuf Bovine licking salt block salt brick salt block hydraulic press machine
The main performance characteristics:
1. The pressing process of the hydraulic press for plastic, such as stamping, bending, flanging, drawing and etc.
2. It can be engaged in correction, compression, plastic dingrun forging hydraulic press machines and powder dingrun forging hydraulic press machines.
Y32-800T Ox Cow beef cattle boeuf Bovine licking salt block salt brick salt block hydraulic press machine
|
Specifications |
Unit |
Y32-800T |
|
|
Nominal Pressure |
KN |
8000 |
|
|
Max.Liquid Pressure |
MPa |
25 |
|
|
Slide Stroke |
mm |
600 |
|
|
Max. Opening Height |
mm |
1600 |
|
|
Slide Speed |
Idle |
mm/s |
340 |
|
Working |
mm/s |
16-24 |
|
|
Return |
mm/s |
260 |
|
|
Worktable Efficient Size |
L-R (Between the columns) |
mm |
1400 |
|
F-B |
mm |
1200 |
|
|
Ejection Cylinder |
T |
125*2 |
|
|
Ejecting Stroke |
mm |
400 |
|
|
Motor Power |
KW |
37*2 |
|
1.hydraulic press machine surface with anti-rust treatment,
2.hydraulic press packing inner layer of plastic waterproof packaging,
3.The outer layer of thick wood or steel frame fixed, and then use a synthetic board package.
Combined container transport, or separate container transport.
Delivery Details: by sea, by train or by truck.
Y32-800T Ox Cow beef cattle boeuf Bovine licking salt block salt brick salt block hydraulic press machine
International CE certification,
Alibaba / China manufacturing network SGS certification
