Quick Details
-
Grade:
-
Stainless steel, 304/304L/316/316L
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
RUNTIAN
-
Model Number:
-
T269 - R05
-
Application:
-
Boiler, Heat Exchanger, Condenser, Boiler, Heat Exchanger, Condenser
-
Item:
-
large diameter stainless pipe
-
Description:
-
polished stainless pipe
-
Raw Meterial:
-
Baosteel, Tisco, Lisco, Dingxin, Qingshan
-
Surface:
-
Mill Finish, 180G 320G 400G 600G
-
Technique:
-
TIG Welded
-
Customized Service:
-
Coil Tube, Short Cutting, Bending, Punching, Ti-gold Colour Coating
-
Inspection:
-
Mill Inspection, Other Third Party Inspection
-
Packing:
-
PP bag with plastic cap cover in Bundle ,Paper Tube and Crate
-
Certification:
-
ISO
Quick Details
-
Type:
-
Welded
-
Steel Grade:
-
300 Series
-
Tolerance:
-
±10%
-
Grade:
-
Stainless steel, 304/304L/316/316L
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
RUNTIAN
-
Model Number:
-
T269 - R05
-
Application:
-
Boiler, Heat Exchanger, Condenser, Boiler, Heat Exchanger, Condenser
-
Item:
-
large diameter stainless pipe
-
Description:
-
polished stainless pipe
-
Raw Meterial:
-
Baosteel, Tisco, Lisco, Dingxin, Qingshan
-
Surface:
-
Mill Finish, 180G 320G 400G 600G
-
Technique:
-
TIG Welded
-
Customized Service:
-
Coil Tube, Short Cutting, Bending, Punching, Ti-gold Colour Coating
-
Inspection:
-
Mill Inspection, Other Third Party Inspection
-
Packing:
-
PP bag with plastic cap cover in Bundle ,Paper Tube and Crate
-
Certification:
-
ISO
|
Product
|

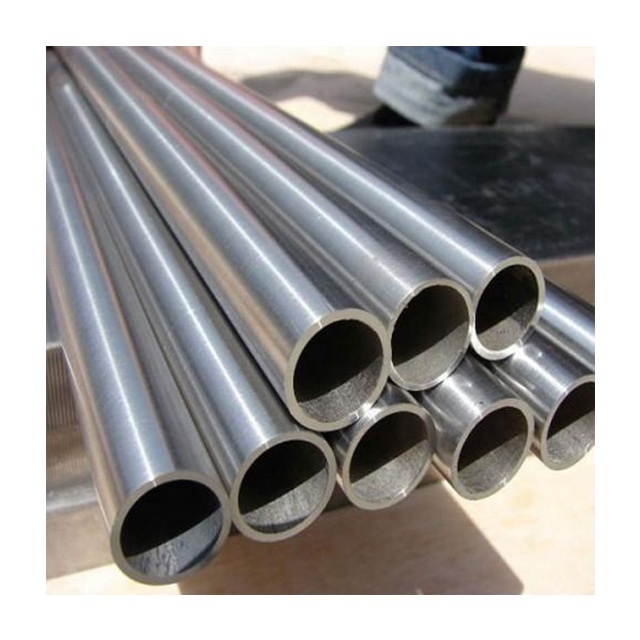

Wholesales ASTM A269/A249 Stainless Steel Welded Tube
|
|
Standard
|
ASTM A269/A249 /EN10217-7
|
|
Material
|
304, 304L, 316, 316L
|
|
Outside Diameter
|
A249: 15.9mm -152.4mm
A269: 6.35mm - 152.4mm, Coil tube: 5.0 - 25.4mm
|
|
O.D. Tolerance
|
According to ASTM A269/A249 standard
|
|
Thickness / Tolerance
|
0.5 - 3.0mm, coil tube: 0.3-2.0mm, +/-10%
|
|
Length / Tolerance
|
5.8meters or 6meters or customized, ±0.5mm
|
|
Process Method
|
A249: Code drawn, Bright annealing, Inside bead removing
A269: Code drawn, Bright annealing
|
|
Finishing
|
Bright annealing
|
|
Finishing
|
Satin / Sanded / Brushed / Hairline HL: 180 grit, 240 grit, 320 grit
|
|
|
Bright: 400 grit, 600 grit, Mirror: 800 grit / 8K
|
|
Application
|
Boiler, Heat exchanger, Condenser, Uperheating steam tube, Boiling water pipe
|
|
Packaging
|
Each Tube packed by plastic bag individully then bundle or customized
|
Stainless Steel Standards of Different Countries
AISI
DIN GB BS AFNOR
304
1.4301 / X5CrNi18-10 06Cr19Ni10 304S15 Z6CN18.09
304L
1.4307 / X2CrNi18-9 022Cr19Ni10 304S12 Z2CN18.09
316 1.4401 / X5CrNiMo17-12-2 06Cr17Ni12Mo2 316S16 Z6CND17.12
316L 1.4404 / X2CrNiMo17-12-2 022Cr17Ni12Mo2 316S12 Z2CND17.12
201 1.4372 / X12CrMnNiN17-7-5 12Cr17Mn6Ni5N -- X12CrMnNIN17.7.5
202 1.4373 / X12CrMnNiN18-9-5 12Cr18Mn9Ni5N -- X12CRMnNIN18.9.5
310 1.4821 / X15CrNi25-21 20Cr25Ni20 -- --
310S 1.4845 / X12CrNi23-12 06Cr25Ni20 310S24 Z8CN25.20
321 1.4541 / X6CrNiTi18-10 06Cr18Ni11Ti 321S12 Z6CNT18.10
409 X6CrTi12 06Cr11Ti -- --
409L 1.4512 / X2CrTi12 022Cr11Ti -- --
410 1.4006 / X12Cr13 12Cr13 410S21 Z12Cr13
410S X6Cr13 06Cr13 -- --
430 1.4016 / X6Cr17 10Cr17 430S15 X6Cr17
439 1.4509 / X2CrTiNb18 022Cr18NbTi -- --
904L 1.4539 / X1NiCrMoCu25-20-5 015Cr21Ni26SiMo5Cu2 -- --
316 1.4401 / X5CrNiMo17-12-2 06Cr17Ni12Mo2 316S16 Z6CND17.12
316L 1.4404 / X2CrNiMo17-12-2 022Cr17Ni12Mo2 316S12 Z2CND17.12
201 1.4372 / X12CrMnNiN17-7-5 12Cr17Mn6Ni5N -- X12CrMnNIN17.7.5
202 1.4373 / X12CrMnNiN18-9-5 12Cr18Mn9Ni5N -- X12CRMnNIN18.9.5
310 1.4821 / X15CrNi25-21 20Cr25Ni20 -- --
310S 1.4845 / X12CrNi23-12 06Cr25Ni20 310S24 Z8CN25.20
321 1.4541 / X6CrNiTi18-10 06Cr18Ni11Ti 321S12 Z6CNT18.10
409 X6CrTi12 06Cr11Ti -- --
409L 1.4512 / X2CrTi12 022Cr11Ti -- --
410 1.4006 / X12Cr13 12Cr13 410S21 Z12Cr13
410S X6Cr13 06Cr13 -- --
430 1.4016 / X6Cr17 10Cr17 430S15 X6Cr17
439 1.4509 / X2CrTiNb18 022Cr18NbTi -- --
904L 1.4539 / X1NiCrMoCu25-20-5 015Cr21Ni26SiMo5Cu2 -- --
Chemical Composition
ASTM C Si Mn P
S
Cr Ni Mo Others
201(1% nickel) ≤0.15 ≤1.00 8.5-10.0 ≤0.06 ≤0.03 14-16 ≥0.8 N≤0.25
202 ≤0.15 ≤1.00 7.5-10.0 ≤0.06 ≤0.03 17-19 4-6 N≤0.25
304 ≤0.08 ≤1.00 ≤2.0 ≤0.045 ≤0.03 18-20 8-11
304L ≤0.03 ≤1.00 ≤2.0 ≤0.045 ≤0.03 18-20 8-12
316 ≤0.08 ≤1.00 ≤2.0 ≤0.045 ≤0.03 16-18 10-14 2.0-3.0
316L ≤0.03 ≤1.00 ≤2.0 ≤0.045 ≤0.03 16-18 10-14 2.0-3.0
409L ≤0.03 ≤1.00 ≤1.0 ≤0.04 ≤0.03 10.5-11.75 ≤0.5 Ti6xC%≤0.7
430 ≤0.12 ≤1.00 ≤1.0 ≤0.04 ≤0.03 16-18 ≤0.6
310 ≤0.15 ≤1.00 ≤2.0 ≤0.20 ≥0.15 17-19 8-10
310S ≤0.08 ≤1.50 ≤2.0 ≤0.035 ≤0.03 24-26 19-22
321 ≤0.08 ≤1.00 ≤2.0 ≤0.045 ≤0.03 17-19 9-12 Ti≥5xC
409 ≤0.08 ≤1.00 ≤1.0 ≤0.04 ≤0.03 10.5-11.75 ≤0.5 Ti6xC%≤0.7
410 ≤0.15 ≤1.00 ≤1.0 ≤0.035 ≤0.03 11.5-13.5
410S ≤0.08 ≤1.00 ≤1.0 ≤0.04 ≤0.03 11.5-13.5 ≤0.6
439 ≤0.03 ≤1.00 ≤1.0 ≤0.04 ≤0.03 17-19 ≤0.5 N≤0.04
904L ≤0.03 ≤1.00 ≤2.0 ≤0.035 ≤0.03 18-20 23-25 3.0-4.0 Cu:4.0-5.0
201(1% nickel) ≤0.15 ≤1.00 8.5-10.0 ≤0.06 ≤0.03 14-16 ≥0.8 N≤0.25
202 ≤0.15 ≤1.00 7.5-10.0 ≤0.06 ≤0.03 17-19 4-6 N≤0.25
304 ≤0.08 ≤1.00 ≤2.0 ≤0.045 ≤0.03 18-20 8-11
304L ≤0.03 ≤1.00 ≤2.0 ≤0.045 ≤0.03 18-20 8-12
316 ≤0.08 ≤1.00 ≤2.0 ≤0.045 ≤0.03 16-18 10-14 2.0-3.0
316L ≤0.03 ≤1.00 ≤2.0 ≤0.045 ≤0.03 16-18 10-14 2.0-3.0
409L ≤0.03 ≤1.00 ≤1.0 ≤0.04 ≤0.03 10.5-11.75 ≤0.5 Ti6xC%≤0.7
430 ≤0.12 ≤1.00 ≤1.0 ≤0.04 ≤0.03 16-18 ≤0.6
310 ≤0.15 ≤1.00 ≤2.0 ≤0.20 ≥0.15 17-19 8-10
310S ≤0.08 ≤1.50 ≤2.0 ≤0.035 ≤0.03 24-26 19-22
321 ≤0.08 ≤1.00 ≤2.0 ≤0.045 ≤0.03 17-19 9-12 Ti≥5xC
409 ≤0.08 ≤1.00 ≤1.0 ≤0.04 ≤0.03 10.5-11.75 ≤0.5 Ti6xC%≤0.7
410 ≤0.15 ≤1.00 ≤1.0 ≤0.035 ≤0.03 11.5-13.5
410S ≤0.08 ≤1.00 ≤1.0 ≤0.04 ≤0.03 11.5-13.5 ≤0.6
439 ≤0.03 ≤1.00 ≤1.0 ≤0.04 ≤0.03 17-19 ≤0.5 N≤0.04
904L ≤0.03 ≤1.00 ≤2.0 ≤0.035 ≤0.03 18-20 23-25 3.0-4.0 Cu:4.0-5.0
Hot Sale ASTM A269/A249
Stainless Steel Tube Size List
O.D ≤ 5/8" Only For ASTM A269
O.D ≥ 3/4" Both ASTM A269 & A249
Plastic Bag
Embossing Seal (Customized)
Spray Printing (Customized)
Bundle for Round Tube
Bundle for Square & Rectangular Tube
Tubes With Plastic Caps, Bundle
Paper Tube
Steel Crate with Plywood Plate
Coil Tube
Mechanical Properties Spectrum Test
Chemical Analysis, Flaring Test, Flattening Test, Flanging Test
Outside Diameter & Thickness Test
Eddy Current Test
Hydrostatic Test（5-10Mpa)
Pneumatic Test (15-20Mpa)
1.
Can I get some samples?
Can provide small samples for free. Customized sample takes 5-7 days.
2.
How about the delivery time?
Container order need 25-30 days.
3.
Can I have customized packing with my logo?
Yes, we can follow your design, also we offer different types of packing, like bundle, woven bag, steel crate and wooden
pallet
/ box.
4. How do you control the quality during production?
1) From raw material, forming, polishing, to packaging, w
e have QC for every process to do inspection, guarentee our products 100% qualified.
2) For mirror finish product, we will polish it as least 4 times.
3) To avoid scratches, after polishing, products will be lay out on a steel crate then we could lift the whole steel crate instead of the product itself.
4) We use the gunny bags twining on machine to protect the product surface when it laying-out.
