Quick Details
-
Place of Origin:
-
Hebei, China
-
Model Number:
-
WSWM
-
Brand Name:
-
Maishi
-
Features:
-
it has better abrasion resistance, better corrosion resistance.
-
Wire diameter:
-
0.025mm-1.8mm
-
width:
-
0.1944m, 1.22m, 1.5m or at request
-
Quality:
-
Good quality
-
Advantage:
-
tensile strength and flexibility is high,Durability using
-
Usage:
-
Filtration
-
Hole shape:
-
square
-
Certification:
-
ISO9001:2008
-
name:
-
High Grade Strength screen net stainless steel woven mesh
Quick Details
-
Material:
-
STAINLESS STEEL WIRE
-
Type:
-
Weave Wire Mesh
-
Application:
-
Filters
-
Place of Origin:
-
Hebei, China
-
Model Number:
-
WSWM
-
Brand Name:
-
Maishi
-
Features:
-
it has better abrasion resistance, better corrosion resistance.
-
Wire diameter:
-
0.025mm-1.8mm
-
width:
-
0.1944m, 1.22m, 1.5m or at request
-
Quality:
-
Good quality
-
Advantage:
-
tensile strength and flexibility is high,Durability using
-
Usage:
-
Filtration
-
Hole shape:
-
square
-
Certification:
-
ISO9001:2008
-
name:
-
High Grade Strength screen net stainless steel woven mesh

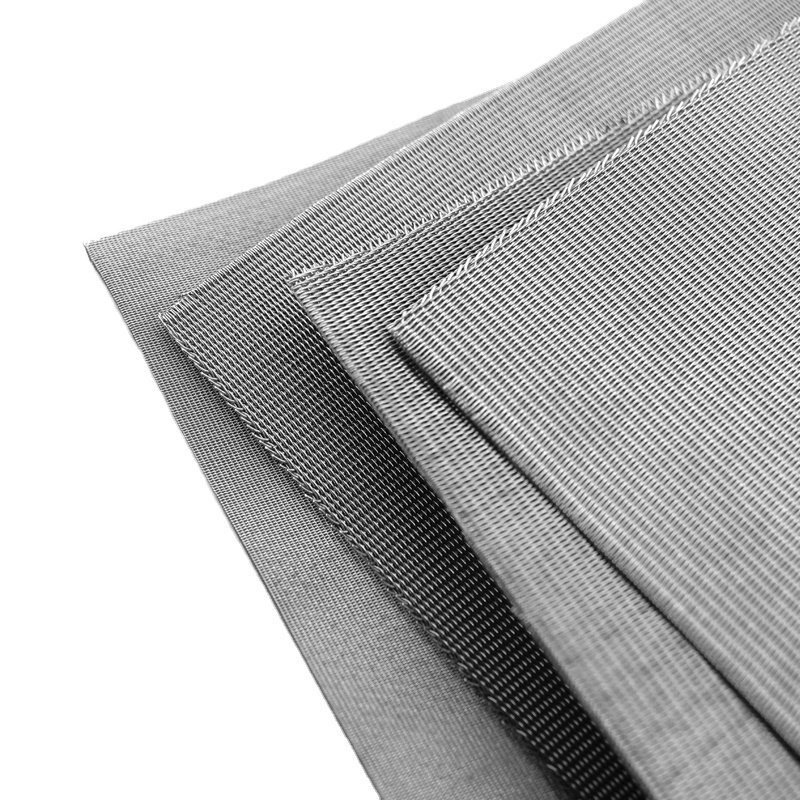

High Grade Strength screen net stainless steel woven mesh
Hebei Maishi Wire Mesh Manufacture Group has been producing wire mesh for over 30 year, is one of the leading manufactures of wire mesh in China. We always support our customers with high grade stainless steel woven mesh . Welcome to contact us if you are finding reliable mesh supplier.
Materia l: 304, 316, 316L etc
Normal mesh sieze:
plain weave: 0.5X0.5mesh to 635X635 mesh;
twill weave:20x20mesh to 400x400mesh;
plain dutch weave:10X64mesh to 80X700mesh;
twill dutch weave:20x250mesh to 400X2800mesh;
reversed dutch weave: 48x10mesh to 720x150mesh.
Wire diameter :0.025mm-1.8mm
Apeature: 0.038mm-10.9mm
Roll width: 0.9144m,1.0m,1.22m,1.524m,1.83m,etc. any width available at request.
Roll length: 30m or 50m,any length available at request.
Sample :Free sample sent on request.
|
Stainless Steel Woven Wire Mesh (Plain Weave) |
||||||
|
mesh/inch |
wire diameter(mm) |
aperture(mm) |
- |
mesh/inch |
wire diameter(mm) |
aperture(mm) |
|
2mesh |
1.80 |
10.90 |
60mesh |
0.15 |
0.273 |
|
|
3mesh |
1.60 |
6.866 |
70mesh |
0.14 |
0.223 |
|
|
4mesh |
1.20 |
5.15 |
80mesh |
0.12 |
0.198 |
|
|
5mesh |
0.91 |
4.17 |
90mesh |
0.11 |
0.172 |
|
|
6mesh |
0.80 |
3.433 |
100mesh |
0.10 |
0.154 |
|
|
8mesh |
0.60 |
2.575 |
120mesh |
0.08 |
0.132 |
|
|
10mesh |
0.55 |
1.990 |
140mesh |
0.07 |
0.111 |
|
|
12mesh |
0.50 |
1.616 |
150mesh |
0.065 |
0.104 |
|
|
14mesh |
0.45 |
1.362 |
160mesh |
0.065 |
0.094 |
|
|
16mesh |
0.40 |
1.188 |
180mesh |
0.053 |
0.088 |
|
|
18mesh |
0.35 |
1.060 |
200mesh |
0.053 |
0.074 |
|
|
20mesh |
0.30 |
0.970 |
250mesh |
0.04 |
0.061 |
|
|
26mesh |
0.28 |
0.696 |
300mesh |
0.035 |
0.049 |
|
|
30mesh |
0.25 |
0.596 |
325mesh |
0.03 |
0.048 |
|
|
40mesh |
0.21 |
0.425 |
350mesh |
0.03 |
0.042 |
|
|
50mesh |
0.19 |
0.318 |
400mesh |
0.25 |
0.0385 |
|
|
Stainless Steel Woven Wire Mesh(Twill Weave) |
|||
|
mesh |
wire diameter(mm) |
aperture(mm) |
material (AISI) |
|
250mesh |
wire dia.0.040mm |
0.063 |
304 or 316 |
|
300mesh |
wire dia.0.040mm |
0.044 |
304 or 316 |
|
325mesh |
wire dia.0.035mm |
0.043 |
304 or 316 |
|
350mesh |
wire dia.0.030mm |
0.042 |
304 or 316 |
|
400mesh |
wire dia.0.030mm |
0.033 |
304 or 316 |
|
Stainless Steel Woven Wire Mesh(Dutch Weave) |
||
|
Mesh |
Wire Dia. (MM) |
Material(AISI) |
|
12meshX64mesh |
0.58/0.40 |
304 or 316 |
|
24meshX110mesh |
0.36/0.25 |
304 or 316 |
|
14meshX88mesh |
0.50/0.33 |
304 or 316 |
|
30meshX150mesh |
0.18/0.14 |
304 or 316 |
|
40meshX200mesh |
0.14/0.11 |
304 or 316 |
|
50meshX250mesh |
0.10/0.071 |
304 or 316 |
|
80meshX700mesh |
0.06/0.05 |
304 or 316 |
|
165meshX800mesh |
0.071/0.040 |
304 or 316 |
|
165meshX1400mesh |
0.05/0.032 |
304 or 316 |
|
200meshX1800mesh |
0.05/0.03 |
304 or 316 |
|
325meshX2300mesh |
0.030/0.025 |
316L |
|
400meshX2800mesh |
0.030/0.02 |
316 |
Technical Note:
1,Standard roll length: 30m,30.5m
2,Special sizes available at request
MAISHI make five steps to ensure the quality of the stainless steel woven mesh:
Package details for Stainless Steel Woven Mesh :
Waterproof paper inside, then plastic bag, plywood case or at customer request
Payment:
100%T/T in advance if order amount less than USD10000.00, 30%paid in advance and 70%paid before shipment if order amount more than USD10000.00.
L/C payment is workable.
Any other payment term can be negotiatory
