Product Name
|
|

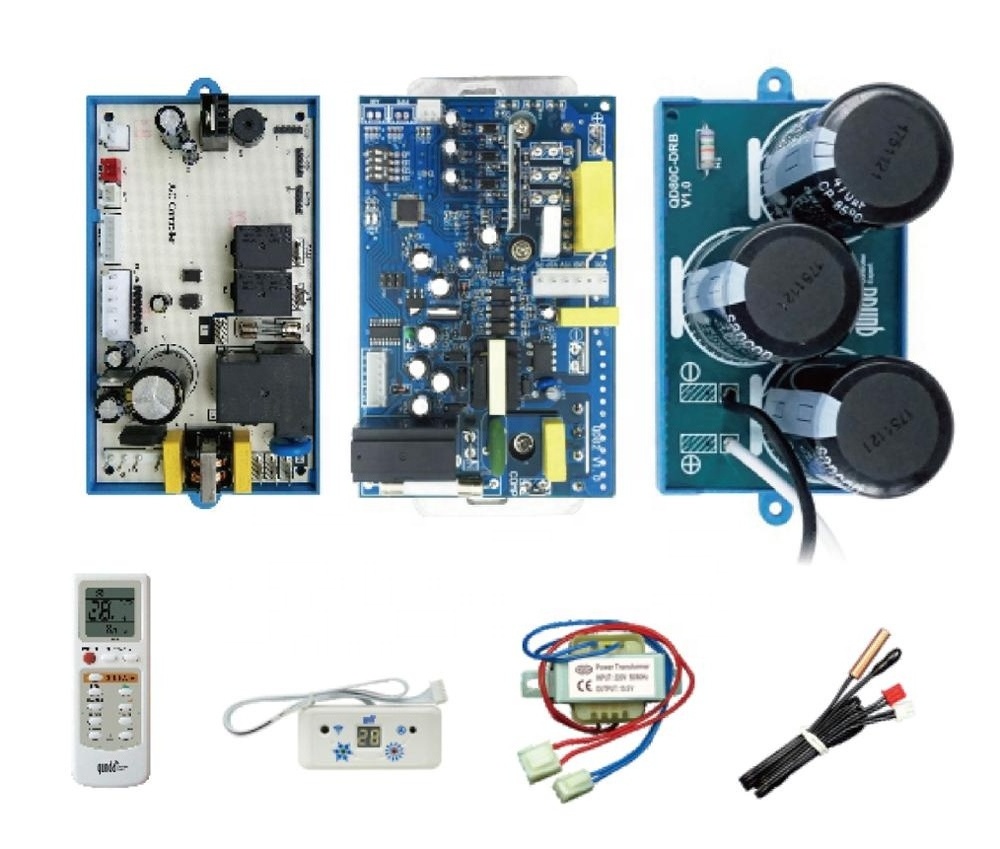

Universal DC inverter control system for split air conditioner
|
|
|
|||
|
Model No.
|
|
QD82
|
|
|
|||
|
Maximum Service Power
|
|
12000BTU
|
|
|
|||
|
Maximum Input Power
|
|
AC240V
|
|
|
|||
|
Minimum Input Power
|
|
AC180V
|
|
|
|||
|
Maximum Output Current
|
|
11A
|
|
|
|||
|
Maximum Output Frequency
|
|
100HZ
|
|
|
|||
|
Model NO.
|
QD80C
|
QD80CU
|
QD82
|
QD82U
|
QD81B
|
|
Type of Aircon
|
Split Aircon
|
Split Aircon
|
Split Aircon
|
Split Aircon
|
Cabinet Aircon
|
|
Max BTU
|
12000BTU
|
24000BTU
|
12000BTU
|
24000BTU
|
24000BTU
|
|
Indoor Motor
|
PG Motor
|
PG Motor
|
DC Fan Motor
|
DC Fan Motor
|
Three Fan Speed Motor
|
|
Outdoor Fan Motor
|
AC
|
AC
|
DC/AC
|
DC/AC
|
AC
|
|
Inverter Compressor
|
DC/AC
|
DC/AC
|
DC
|
DC
|
DC/AC
|
