- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Powersen
-
Product name:
-

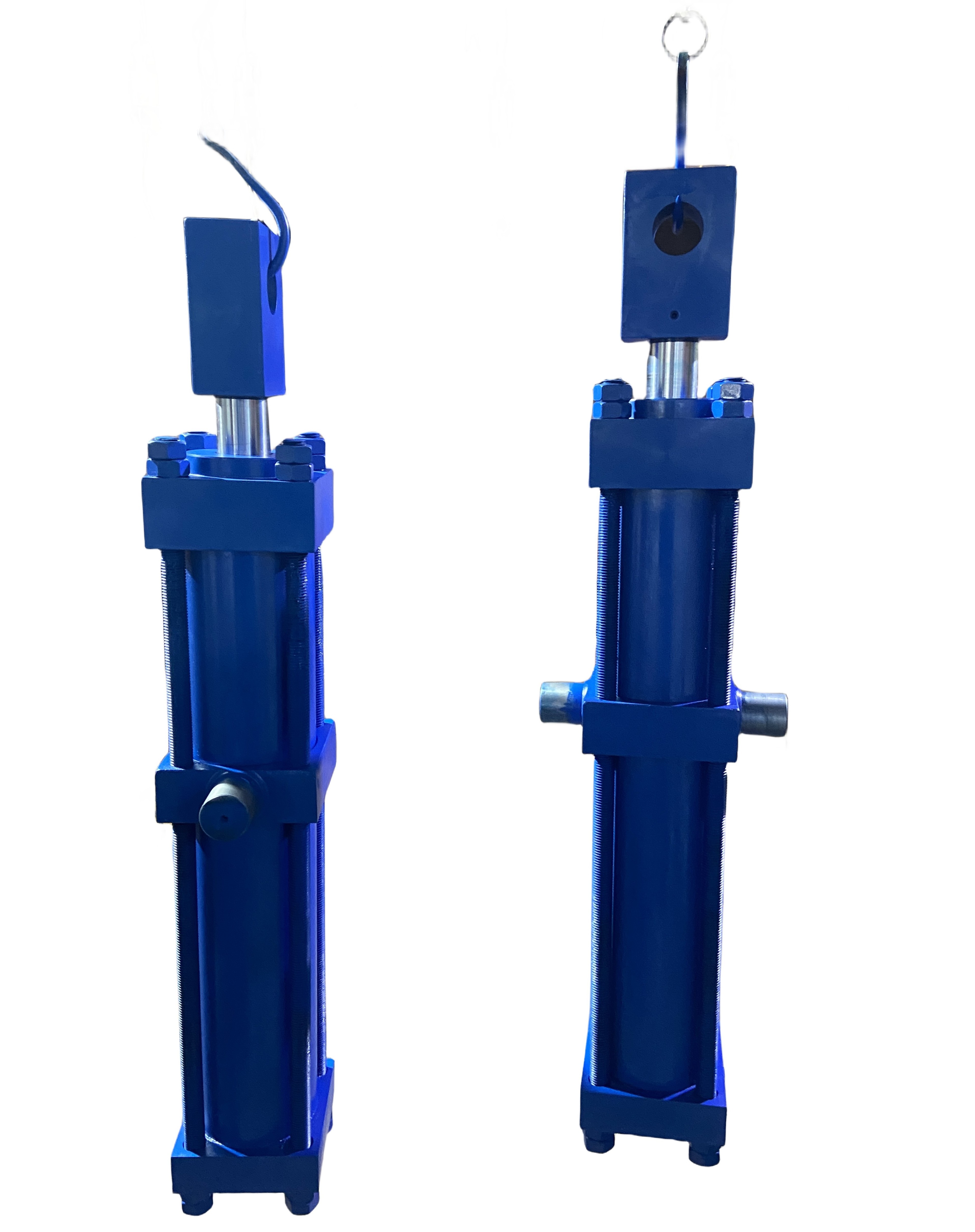

Hydraulic Cylinder
-
Standard:
-
GB, DIN, EN.
-
Material:
-
20#,45#,16Mn(ST52),25Mn, 27Simn, etc
-
Sample:
-
Availabled
-
Work pressure:
-
5-300Mpa
-
Working medium:
-
Hydraulic Oil #46
-
Keyword:
-
Cylinders
-
Working Temperature:
-
5 -- +60 Degree
-
Acting type:
-
Double Action Excavator Hydraulic Cylinder
-
Application:
-
Machinery
Quick Details
-
Weight (KG):
-
20
-
Core Components:
-
PLC, Engine, Bearing, Gearbox, Pressure vessel, Pu
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Powersen
-
Product name:
-
Hydraulic Cylinder
-
Standard:
-
GB, DIN, EN.
-
Material:
-
20#,45#,16Mn(ST52),25Mn, 27Simn, etc
-
Sample:
-
Availabled
-
Work pressure:
-
5-300Mpa
-
Working medium:
-
Hydraulic Oil #46
-
Keyword:
-
Cylinders
-
Working Temperature:
-
5 -- +60 Degree
-
Acting type:
-
Double Action Excavator Hydraulic Cylinder
-
Application:
-
Machinery
Product Description
Custom-made Service
We can custom your own cylinder products according to your drawing or requirements. No problem. here are some drawing examples for your reference.
Welcome to talk more details with us.
Cylinder tube
OD:35mm - 2200mm
Cylinder tube ID:20mm - 2000mm
Cylinder tube materials: 20# 45#(CK45) 16Mn (ST52) 25Mn 27SiMn etc.
Wall thickness: 3mm - 150 mm
Standard: GB/T 87 13-88 GB/T 3639 - 2000 TIN 2391 EN 10305
, ,
We can design and produce most kind hydraulic cylinder. Single acting,double acting hydraulic cylinder. Big size and little size hydraulic cylinder. 3-6 stages Telescopic hydraulic cylinder.
(1)Construction Machinery cylinders for: loaders, excavator, forklift, bulldozer, dumper, roller, crane ,pump truck,garbage truck,garbage compactor and boat used hydraulic cylinder etc.
(2)Metallurgical Machinery cylinders for: decelerator, tile press etc.
(3)Mining Machinery cylinders for: crasher, coal cutter shield tunneling machine and dame gate etc.
(4)Agricultural & forestry machinery cylinders for: soil preparation machine, harvester, weeder etc.
Agricultural Machinery Cylinder
Suction cup lift cylinder
Lift Cylinder
Oil Press Cylinder
Tractor Cylinder
Outrigger Cylinder
Marine Hydraulic Cylinder
Excavator Cylinder
O
il Press Cylinder
Dump Lifting Cylinder
Telescopic
Cylinder
Semi-trailer rollover cylinder
Multi-stage Cylinder
Loader Hydraulic Cylinder
Steering Cylinder
Excavator Cylinder
Garbage Tuck Cylinder
Large Hydraulic Cylinder
Specification
Item
|
Hydraulic Cylinder
|
Place of Origin
|
Shandong China
|
Brand Name
|
Powersen
|
Section Shape
|
Round
|
Certificate
|
API, JIS, GS, ISO9001
|
Grade
|
20#,45#,16Mn(ST52),25Mn, 27Simn, etc
|
Tolerance
|
±5%, ±1%
|
Standard
|
GB, DIN, EN.
|
Sample
|
Availabled
|
MOQ
|
1PC
|
Package
|
Regular or Customers't Requirement
|
Cylinder Barrel Pressure Table
We can custom your size cylinder.
|
|
|
|
|
|
|
||||||
ID*WT
(mm)
|
Safety factor
(n)
|
Max withstand voltage
(MPa)
|
|
ID*WT
(mm)
|
Safety factor
(n)
|
Max withstandvoltage
(MPa)
|
||||||
32*4
|
3
|
48.85
|
|
110*9
|
3
|
31.97
|
||||||
40*2.5
|
3
|
21.25
|
|
110*11.5
|
3
|
40.83
|
||||||
40*5
|
3
|
48.84
|
|
110*12.5
|
3
|
44.37
|
||||||
40*5.5
|
3
|
53.72
|
|
110*15
|
3
|
53.21
|
||||||
45*4
|
3
|
34.74
|
|
120*10
|
3
|
32.56
|
||||||
45*5
|
3
|
43.42
|
|
120*13
|
3
|
42.30
|
||||||
45*6
|
3
|
52.09
|
|
125*4
|
3
|
10.88
|
||||||
45*7
|
3
|
65.08
|
|
125*5
|
3
|
13.6
|
||||||
50*2.5
|
3
|
17
|
|
125*7.5
|
3
|
20.4
|
||||||
50*4
|
3
|
31.27
|
|
125*10.5
|
3
|
32.82
|
||||||
50*5
|
3
|
39.08
|
|
125*13.5
|
3
|
42.17
|
||||||
50*6.5
|
3
|
50.79
|
|
125*17
|
3
|
53.05
|
Mechanical Properties
|
|
|
|
|
||||
Steel Grade
|
Tensile strength
σ b N/mm²
|
Yield strength
σ s N/mm²
|
Elongation
δ %
|
Hardness
HB
|
||||
20#
|
≥520
|
≥470
|
≥12
|
175
|
||||
45#(CK45)
|
≥600
|
≥520
|
≥12
|
207
|
||||
16Mn(ST52)
|
≥600
|
≥520
|
≥15
|
190
|
||||
25Mn
|
≥600
|
≥520
|
≥15
|
195
|
||||
27Simn
|
≥800
|
≥720
|
≥10
|
230
|
||||
...
|
...
|
...
|
...
|
...
|
