Quick Details
-
Brand Name:
-
TENGDONG
-
Voltage:
-
380V/220V Optional
-
Dimension(L*W*H):
-
760*860*2080mm
-
Weight (T):
-
0.75 T
-
Motor Power (kw):
-
4 kw
-
Nominal force:
-
500KN
-
Max. hydraulic pressure:
-
31.5MPa
-
Oil cylinder range:
-
250mm
-
Pressure speed Idle stoke:
-
30mm/s
-
Pressure speed Pressing:
-
10mm/s
-
Pressure speed Return:
-
50mm/s
-
Bolster size:
-
600*400mm
-
Main motor power:
-
4kw
-
Weight:
-
0.75kw
-
Power:
-
4KW
Quick Details
-
Machine Type:
-

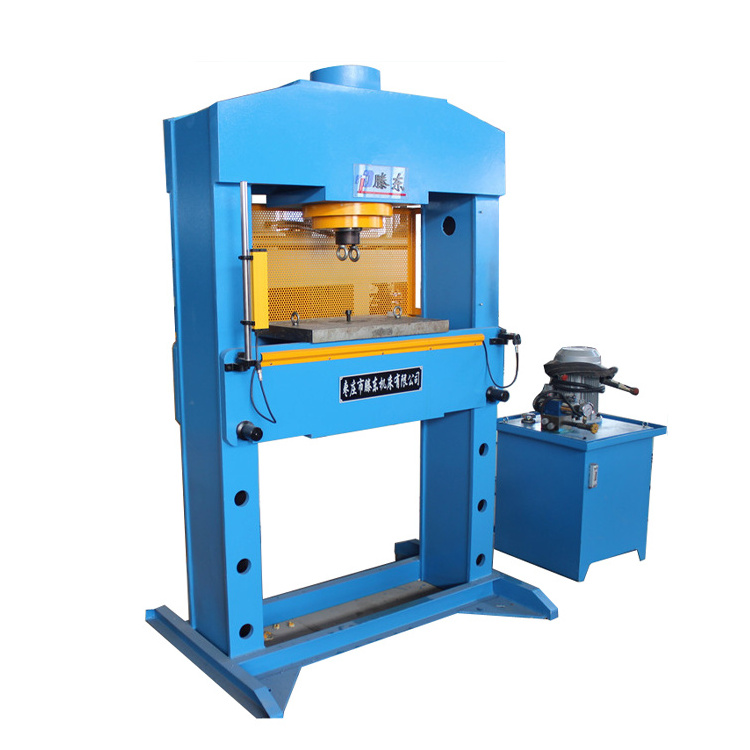

H Frame Hydraulic Press
-
Return Force (kN):
-
500 kN
-
Place of Origin:
-
China
-
Brand Name:
-
TENGDONG
-
Voltage:
-
380V/220V Optional
-
Dimension(L*W*H):
-
760*860*2080mm
-
Weight (T):
-
0.75 T
-
Motor Power (kw):
-
4 kw
-
Nominal force:
-
500KN
-
Max. hydraulic pressure:
-
31.5MPa
-
Oil cylinder range:
-
250mm
-
Pressure speed Idle stoke:
-
30mm/s
-
Pressure speed Pressing:
-
10mm/s
-
Pressure speed Return:
-
50mm/s
-
Bolster size:
-
600*400mm
-
Main motor power:
-
4kw
-
Weight:
-
0.75kw
-
Power:
-
4KW
Product Description
Specification
|
Type
|
|
Unit
|
YLM-30
|
YLM-40
|
YLM-50
|
YLM-63
|
YLM-100
|
YLM-150
|
|
|
Nominal force
|
|
KN
|
300
|
400
|
500
|
630
|
1000
|
1500
|
|
|
Max. hydraulic pressure
|
|
MPa
|
31.5
|
30
|
31.5
|
30
|
31.5
|
30
|
|
|
Oil cylinder range
|
|
mm
|
200
|
200
|
250
|
250
|
250
|
400
|
|
|
Pressure speed
|
Idle stoke
|
mm/s
|
20
|
30
|
30
|
24.3
|
25.8
|
25.5
|
|
|
|
Pressing
|
|
10
|
10
|
10
|
14
|
10
|
10
|
|
|
|
Return
|
|
40
|
50
|
50
|
50
|
50
|
50
|
|
|
Bolster
|
L-R
|
mm
|
400
|
400
|
400
|
400
|
400
|
800
|
|
|
|
F-B
|
|
400
|
500
|
500
|
500
|
500
|
600
|
|
|
Pressure head from under
The work surface height |
|
mm
|
400
|
500
|
500
|
500
|
500
|
800
|
|
|
Outline dimension
|
L-R
|
mm
|
635
|
635
|
760
|
760
|
760
|
1260
|
|
|
|
F-B
|
|
635
|
635
|
860
|
860
|
860
|
1050
|
|
|
|
Height
|
|
1900
|
1900
|
2080
|
2180
|
2180
|
2285
|
|
|
Main motor power
|
|
kw
|
1.5
|
3
|
4
|
4
|
5.5
|
5.5
|
|
|
Weight
|
|
T
|
0.45
|
0.63
|
0.75
|
0.98
|
1.45
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Feature: YM series of manual, electric hydraulic machine integration, small size, simple structure, afford able, especially for field and frequent power outages occasions.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Tengdong Machine Tool Co., Ltd. is a set of lathes, milling machines, drilling machines, planers, presses and other machine tool
equipment consisting mainly of modern production group production enterprises.
Company under the three production bases, an import and export foreign trade companies
equipment consisting mainly of modern production group production enterprises.
Company under the three production bases, an import and export foreign trade companies
