Quick Details
-
Brand Name:
-
GOLD
-
Model Number:
-
752N Spectrophotometer Manual
-
Focal Length:
-
200-1000nm Spectrophotometer Manual
-
Wavelength Range:
-
200nm to 1000nm
-
Name:
-
752N Low Price Manual Type Spectrophotometer
-
Spectrophotometer Manual Usage:
-
Laboratory use Spectrophotometer
-
Spectrophotometer Manual features:
-
Single beam, wide wavelength range, low price
-
Spectrophotometer Manual features 1:
-
Computer control system, with software
-
Spectrum Bandwidth:
-
5nm
-
Communication port:
-
RS232, printer
-
Scanning function:
-
No
-
Spectrophotometer Manual Price:
-
Low price
-
OEM Supply:
-
Yes
-
Warranty:
-
1 year
Quick Details
-
Size:
-
70*59*50cm
-
Weight:
-
31kg
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
GOLD
-
Model Number:
-
752N Spectrophotometer Manual
-
Focal Length:
-
200-1000nm Spectrophotometer Manual
-
Wavelength Range:
-
200nm to 1000nm
-
Name:
-
752N Low Price Manual Type Spectrophotometer
-
Spectrophotometer Manual Usage:
-
Laboratory use Spectrophotometer
-
Spectrophotometer Manual features:
-
Single beam, wide wavelength range, low price
-
Spectrophotometer Manual features 1:
-
Computer control system, with software
-
Spectrum Bandwidth:
-
5nm
-
Communication port:
-
RS232, printer
-
Scanning function:
-
No
-
Spectrophotometer Manual Price:
-
Low price
-
OEM Supply:
-
Yes
-
Warranty:
-
1 year

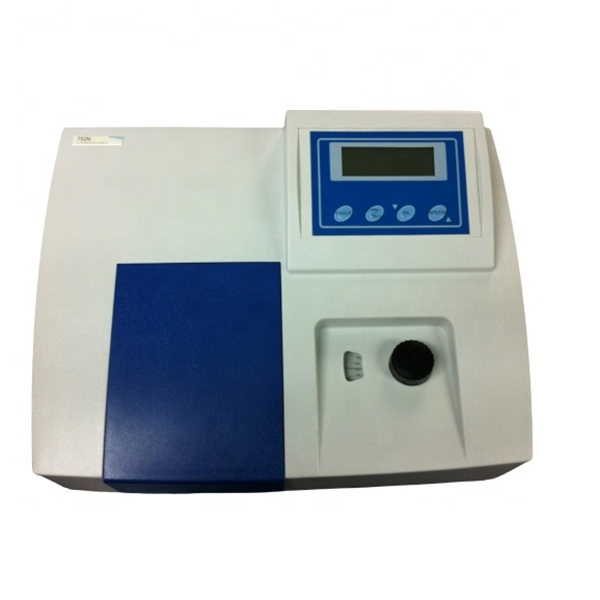

752N Low Price Manual Type Spectrophotometer / Spectrophotometer Manual With Wavelength of 200nm to 1000nm
Features:
- The monochromator with a holographic flashing grating is used. It has the advantage of high wavelength precision, good monochromaticity and low stray light.
- Automatic switching of tungsten halogen lamp and deuterium lamp.
- A sample compartment for 0.5cm-5cm cells.
- Computer control system, precise automatic T/A changeover.
- Automatic zero and full scale adjustment.
- Direct concentration read-out and concentration factor setting function.
- Equipped with RS232 port. Printer can be connected and data can be sent to PC by special software.
Specifications:
|
1 |
Wavelength Range |
200- 10 00nm |
|
2 |
Wavelength accuracy |
≤2nm |
|
3 |
Wavelength accuracy |
≤2nm |
|
4 |
Wavelength repeatability |
≤ 1nm |
|
5 |
Transmittance accuracy |
±0.5% (t) (NBS930D) |
|
6 |
Transmittance |
repeatability≤0.2% (t) |
|
7 |
Spectrum bandwidth |
5nm |
|
8 |
Stray light |
≤ 0.5% (t) |
|
9 |
Stability Dark current drift |
0.2%(t)/3min |
|
10 |
Light current drift |
0.5%(t)/3min |
|
11 |
Shipping package dimension |
640-480-340mm |
|
12 |
Gross weight |
30Kg |
|
13 |
Net weight |
27Kg |
Full Set:
|
No. |
Parts Name |
Quantity |
|
No. |
Parts Name |
Quantity |
|
|
1 |
Main instrument |
1 |
7 |
Tungsten-halogen lamp ( 12V 30W ) |
1 |
||
|
2 |
Power cable |
1 |
8 |
Deuterium lamp |
1 |
||
|
3 |
Dust cover |
1 |
9 |
Fuses (2.5A) |
5 |
||
|
4 |
10mm Quartz cell |
2 |
10 |
Wrench |
1 |
||
|
5 |
Didymium filter |
1 |
11 |
Filter(for use from 330nm ~ 370nm) |
1 |
||
|
6 |
0.5E filter |
1 |
|
|
|
||
|
Optional Accessories: |
|||||||
|
10mm Glass cell |
10mm Quartz cell |
1 0mm Cell holder |
|||||
|
Tungsten-halogen lamp ( 12V 30W ) |
Deuterium lamp |
Printe r |
|||||
If possible, please kindly let us know,
| 1 | What's your test samples? |
| 2 | What's the wavelength range(nm) do you need? |
| 3 | Do you need scanning function? |
| 4 | Any special requirement? |
