Quick Details
-
Weight (KG):
-
374
-
Motor Power (kW):
-
3
-
After-sales Service Provided:
-
Overseas third-party support available
-
Motor Power:
-
3.0 kw-4P
-
Opeartion:
-
Manual
-
Bending Capacity:
-
6-40mm
-
Voltage:
-
220V - 380V
-
Frequency:
-
50Hz - 60hz
-
Weight:
-
320 Kg.
-
External Dimensions L*W*H:
-
810*760*860 mm
-
CE Certification:
-
CE Certificate 2006/42/EC
Quick Details
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
GUTE
-
Year:
-
2023
-
Weight (KG):
-
374
-
Motor Power (kW):
-
3
-
After-sales Service Provided:
-
Overseas third-party support available
-
Motor Power:
-
3.0 kw-4P
-
Opeartion:
-
Manual
-
Bending Capacity:
-
6-40mm
-
Voltage:
-
220V - 380V
-
Frequency:
-
50Hz - 60hz
-
Weight:
-
320 Kg.
-
External Dimensions L*W*H:
-
810*760*860 mm
-
CE Certification:
-
CE Certificate 2006/42/EC

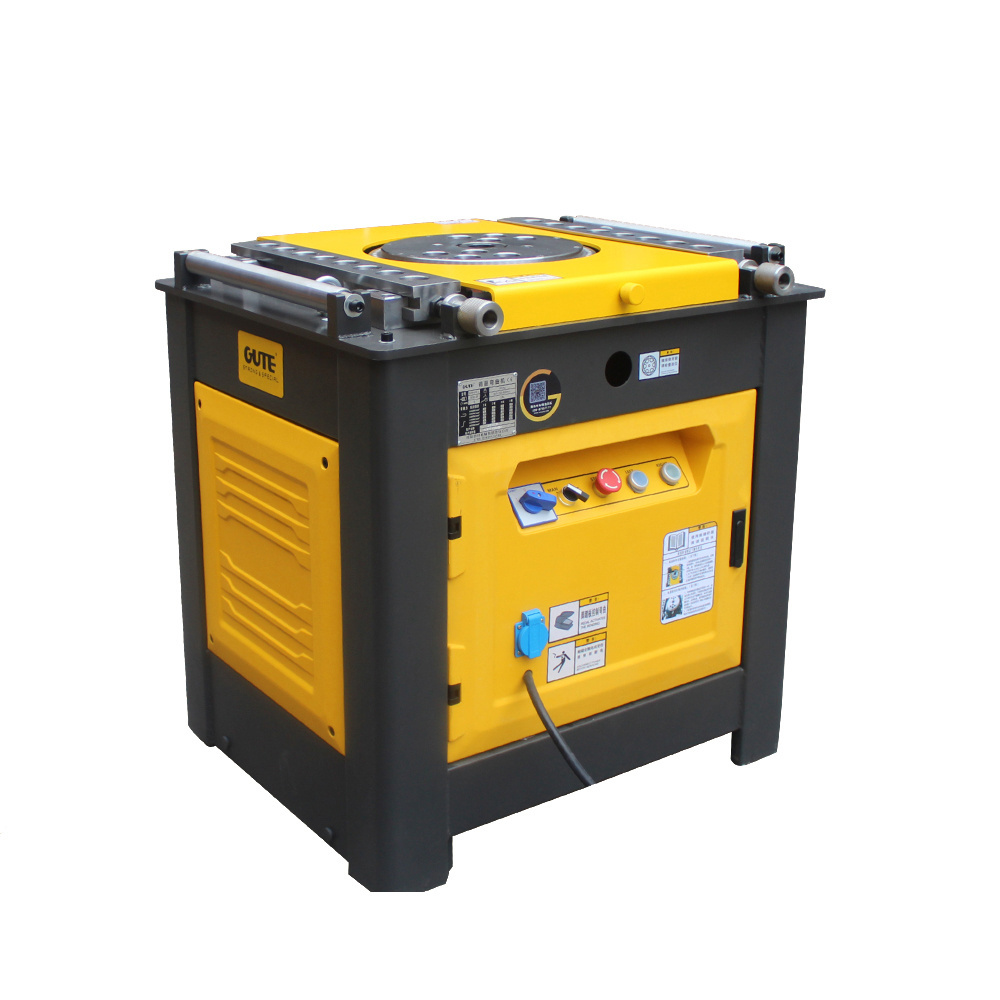

•GW42D-4 adopts the fully enclosed gear box separated from the working disk for no distortions even under the condition of heavy loads and no oil leaking while lifting the machine.
•Gears,gear shafts,working disk,stop gauge,saddles,pile heads and pile head bushes made of high-quality alloyed steel with proper heat treatment(quenching/tempering/high frequency)and 3mm thick external case to ensure high performances also under heavy loads and long working life.
•Dust proof brake motor and two limit switch to ensure the accuracy of the bending angle also after stopping and restarting.
•Insert pin type disk and movable saddles for a precise adjusting of the bending angle.
•CE certification
|
Bending Capacity |
6-40 mm (ob ≤450N/mm2) |
6-36 mm (ob ≤650N/mm2) |
|
Operation |
Automatic |
|
|
Type of Motor |
YEJ 100L2-4 (Brake motor) |
|
|
Motor Power |
3 KW-4P |
|
|
Motor Roatation Speed |
1420 R/min |
|
|
Speed of Working Disc |
12 R/min |
|
|
Noise Value(1M Away) |
≤80dB(A) |
|
|
Weight |
374KG | |
|
Size(L*W*H) |
810*760*860 mm |
|
|
Certification |
2006/42/EC - 2006/95/EC |
