Quick Details
-
Place of Origin:
-
Shandong, China
-
Certification:
-
ce
-
Application:
-
AGV,Robot,tracked car
-
Product Name:
-
bldc MOTOR 200w 24V
-
Motor type:
-
BLDC MOTOR WITH ENCODER
-
Keywords:
-
bldc MOTOR
-
Rated Voltage:
-
48VDC
-
Color:
-
Black
-
Diameter:
-
80MM
-
Weight:
-
10kg
-
Item name:
-
1.1kw brushless dc motor
Quick Details
-
Speed(RPM):
-
1500r/min
-
Continuous Current(A):
-
40A
-
Efficiency:
-
IE 1
-
Place of Origin:
-
Shandong, China
-
Certification:
-
ce
-
Application:
-
AGV,Robot,tracked car
-
Product Name:
-
bldc MOTOR 200w 24V
-
Motor type:
-
BLDC MOTOR WITH ENCODER
-
Keywords:
-
bldc MOTOR
-
Rated Voltage:
-
48VDC
-
Color:
-
Black
-
Diameter:
-
80MM
-
Weight:
-
10kg
-
Item name:
-
1.1kw brushless dc motor

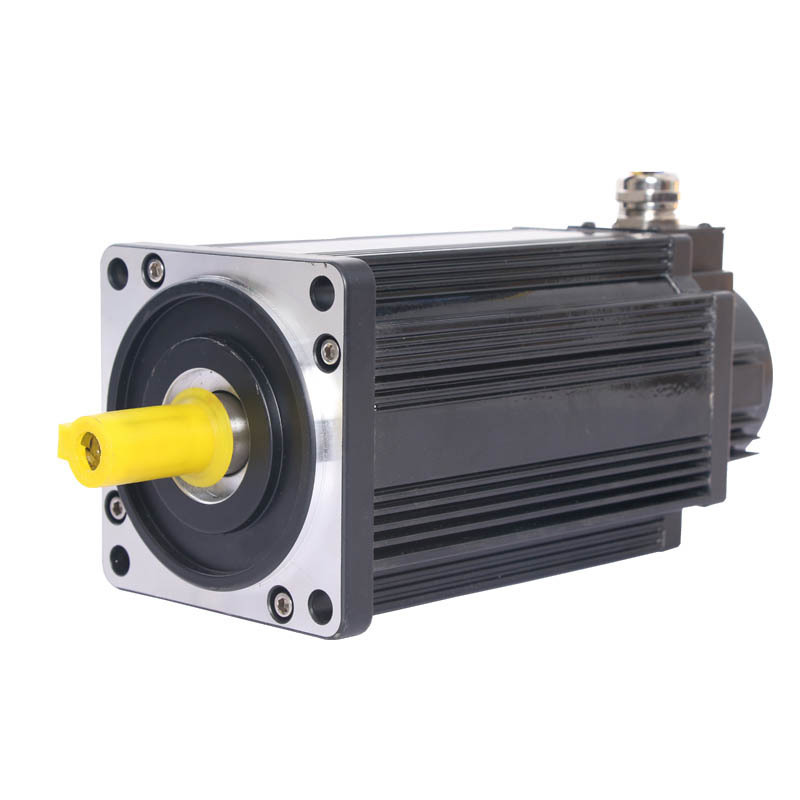

1 kw brushless dc motor 1 hp 1.1kw brushless dc motor
We are leading manufacturer of brushless dc (BLDC) motors with power range from 200W to 3000W, and the voltage range from 24V to 48V DC. It has been widely used for many applications, eg., auto industry, battery powered bikes, scooters, electric cars, forklifts, golf buggies, boats etc. It has better performances than other traditional dc motors.
Product Features:
1 kw brushless dc motor 1 hp 1.1kw brushless dc motor
*High Torque to inertia ratio&up to 15000Nm/kgm²
*Fast dynamic response *time constant <20ms
*Wide speed adjusting&feedback up to 1000:1
*Steady speed precision up to 0.5%
*High overload,2Mn/30s,3.5N.m/10s
*Small volume and light
*Silent,the lowest noise is only 45dB(A)
*Protected with IP65,Class F insulation
Industry class
1.The altitude should be over 1000 meters above sea level
2.Environment temperature:+5℃~+40℃
3.The month average tallest relative humidity is 90%,at the same the month average lowest temperature is less than 25℃.
Parameters 1 kw brushless dc motor 1 hp 1.1kw brushless dc motor
|
Model |
Volt |
Power |
Rated Torque |
Rated Speed |
Rated Current |
Peak Torque |
Encoder |
Weight |
|
Unit |
V |
W |
Nm |
r/min |
A |
Nm |
P/R |
kg |
|
KY60AS0201-30 |
24 |
100 |
0.318 |
3000 |
5.4 |
0.95 |
2500 |
1.5 |
|
KY80AS0102-15 |
12 |
200 |
1.27 |
1500 |
22 |
3.8 |
2500 |
2.2 |
|
KY80AS0202-15 |
24/48 |
200 |
1.27 |
1500 |
9.4 |
3.8 |
2500 |
2.2 |
|
KY80AS0104-15 |
12 |
400 |
2.55 |
1500 |
44 |
7.65 |
2500 |
3.6 |
|
KY80AS0204-15 |
24/48 |
400 |
2.55 |
1500 |
21.3 |
7.65 |
2500 |
3.6 |
|
KY80AS0104-30 |
12 |
400 |
1.27 |
3000 |
44 |
3.8 |
2500 |
2.2 |
|
KY80AS0204-30 |
24/48 |
400 |
1.27 |
3000 |
18.8 |
3.8 |
2500 |
2.2 |
|
KY110AS0405-15 |
48 |
500 |
3.1 |
1500 |
14 |
10.8 |
2500 |
6 |
|
KY110AS0207-15 |
24 |
750 |
4.77 |
1500 |
41 |
16.6 |
2500 |
6 |
|
KY110AS0408-15 |
48 |
800 |
5 |
1500 |
22 |
17.9 |
2500 |
7.8 |
|
KY110AS0210-15 |
24 |
1000 |
6.3 |
1500 |
55 |
21.4 |
2500 |
7.8 |
|
KY110AS0410-15 |
48 |
1000 |
6.3 |
1500 |
28 |
22 |
2500 |
7.8 |
|
KY110AS0412-12 |
48 |
1200 |
4.5 |
2500 |
33 |
15.7 |
2500 |
7.8 |
|
KY110AS0415-15 |
48 |
1500 |
9.5 |
1500 |
37.5 |
28 |
2500 |
10 |
|
KY110AS0420-25 |
48 |
2000 |
7.6 |
2500 |
55 |
26 |
2500 |
10 |
|
KY130AS0430-15 |
48 |
3000 |
19 |
1500 |
73 |
57 |
2500 |
14 |
1 kw brushless dc motor 1 hp 1.1kw brushless dc motor
