- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Hantu
-
Model Number:
-
HT-03120W
-
Voltage:
-
9-32V DC
-
Car Make:
-
offroad vehicle,atvs,truck,engineering vehicles
-
Main Material:
-
Aluminum housing,aluminium alloy bracket
-
Lens material:
-
Optical PC
-
LEDS:
-
24PCS*5W
-
Lumens:
-
10200LM
-
Color Temperature:
-
6500K
-
Water-proof rate:
-
IP67
-
Work Temperature:
-
-40 degree~+85 degree
-
Length:
-
32 inch
-
Certification:
-
CE IP67 ROHS
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Warranty:
-
12 months
-
Car Model:
-
offroad 4x4 ATV
-
Brand Name:
-
Hantu
-
Model Number:
-
HT-03120W
-
Voltage:
-
9-32V DC
-
Car Make:
-
offroad vehicle,atvs,truck,engineering vehicles
-
Main Material:
-
Aluminum housing,aluminium alloy bracket
-
Lens material:
-
Optical PC
-
LEDS:
-
24PCS*5W
-
Lumens:
-
10200LM
-
Color Temperature:
-
6500K
-
Water-proof rate:
-
IP67
-
Work Temperature:
-
-40 degree~+85 degree
-
Length:
-
32 inch
-
Certification:
-
CE IP67 ROHS

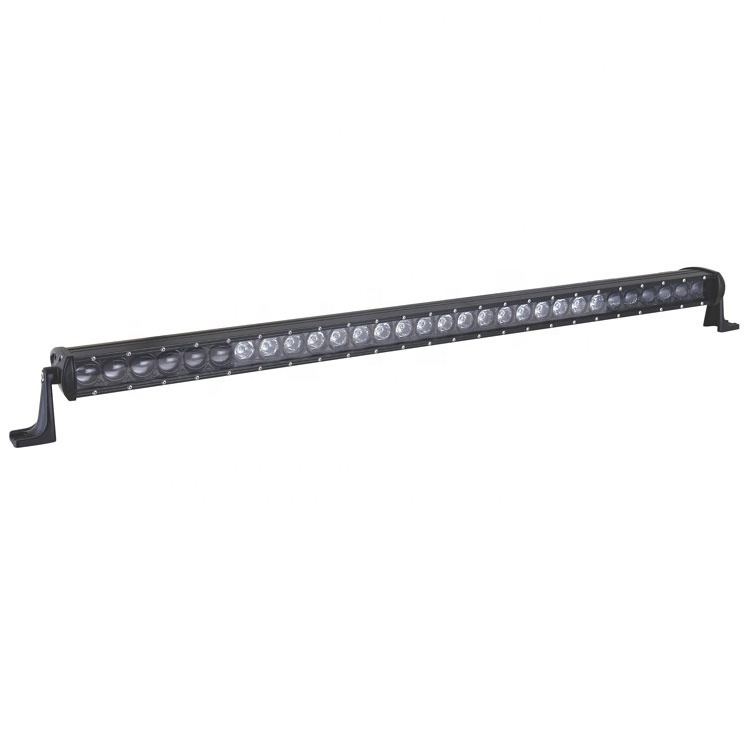

HT-03150W offroad led bar 40 inch single row 4WD barra 4x4 atv utv car offroad truck led driving light bar 12V
Vantages of this series product:
1, Streamlined lamp body, beautiful and unique!
2,Different lighting shape, beautiful and unique.
3,Use the O SRAM led chip, it is very bright.
4, The bracket is unique and special, design for this series.
5,The lens is unique, we own the mould.
Our vantages :
1.Different with other B-level aluminum lamp, our products all used the standard 6063 aluminum Alloy, thicken diecast Aluminum structure, hardness, quick heat-dissiption.
2.Used the outside environmental protection spray coating technique, good adhesive attraction, excellent looks and exquisite craftwork.
3. Use the high strength PC, scratch-resistant, good light transmission, better than Acrylic.
4.The inside and outside rubber of the wire all use the silical gel.
5.Circuit board with good heat diffusivity, used thicken copper foil, smart circuit is accurate, stable and reliable.
6.The waterproof test more than 6 hours and the burn-in test more than 8 hours, quality guaranteed.
| Sizes of HT-03 Series LED Light Bar | |||||||
| Model | Power/W | LED Qualities | Size(Approx)/mm | Lumen/lm | Voltage | N.W/kg | Box size/cm |
| HT-0330 | 30 | 6pcs*5w | 318*95*50 | 2550 |
LED chip: O'SRAM chip
Material: Die-casting aluminim housing, PC lens, stainless steel bracket Voltage: 9 - 32V DC Color temperature: 6500K Lifespan: 50000 hours Beam type: spot, flood, combo |
1 | 37*10*12.5 |
| HT-0360 | 60 | 12pcs*5w | 510*95*50 | 5100 | 1.8 | 54.5*10*12.5 | |
| HT-0390 | 90 | 18pcs*5w | 702*95*50 | 7650 | 2.7 | 70*10*13.5 | |
| HT-03120 | 120 | 24pcs*5w | 894*95*50 | 10200 | 3 | 86*10*12.5 | |
| HT-03150 | 150 | 30pcs*5w | 1086*95*50 | 12750 | 3.5 | 101*10*12.5 | |
| HT-03180 | 180 | 36pcs*5w | 1278*95*50 | 15300 | 4.5 | 129*10*12.5 | |
