Quick Details
-
Voltage:
-
220V/380V
-
Power:
-
7.5kw
-
Weight:
-
330 KG
-
Dimension(L*W*H):
-
1900*600*1350mm
-
After Warranty Service:
-
Video technical support
-
Product name:
-
Corn grits machine
-
Application:
-
Grain Processing
-
Raw material:
-
Maize Corn
-
Usage:
-
Grinding Wheat Maize Corn Rice
-
Function:
-
Multifunction
-
Advantage:
-
Low Cost Fast Effect
-
Used for:
-
Grain Flour Milling
-
Suit for:
-
corn
-
Name:
-
Grain Crushing Machine
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Quota
-
Production Capacity:
-
300kg/h
-
Voltage:
-
220V/380V
-
Power:
-
7.5kw
-
Weight:
-
330 KG
-
Dimension(L*W*H):
-
1900*600*1350mm
-
After Warranty Service:
-
Video technical support
-
Product name:
-
Corn grits machine
-
Application:
-
Grain Processing
-
Raw material:
-
Maize Corn
-
Usage:
-
Grinding Wheat Maize Corn Rice
-
Function:
-
Multifunction
-
Advantage:
-
Low Cost Fast Effect
-
Used for:
-
Grain Flour Milling
-
Suit for:
-
corn
-
Name:
-
Grain Crushing Machine
Product Description

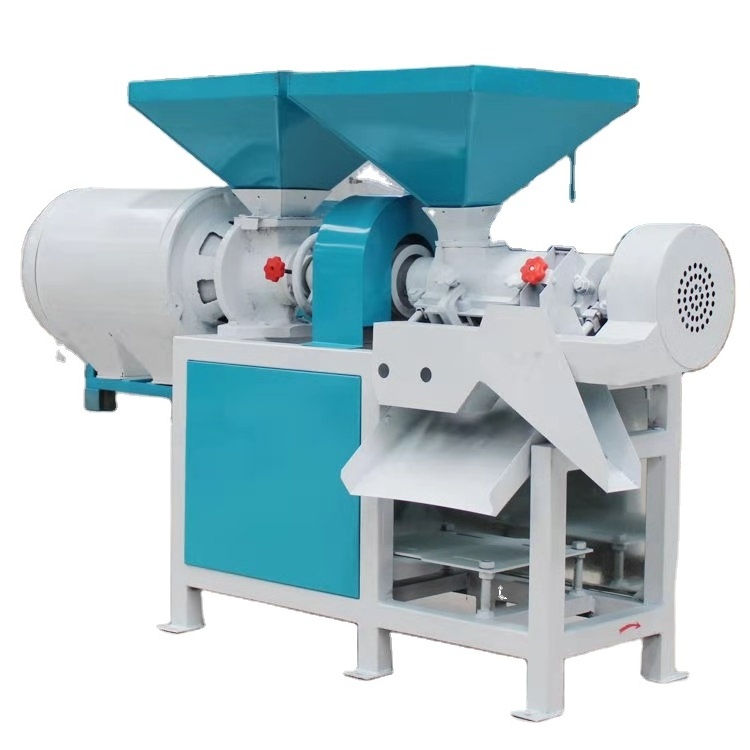

This machine consists of corn peeling, corn polishing, corn grits and flour making, end products classifying and winnowing. The clean raw grain is conveyed to the feeding port for peeling, degermination and black impurities removing and can be processed into corn kernels once. After smashing and mixture grading, the machine can produce three end products: medium grits, small grits and
corn flour. Inside of the machine has highly efficient air draft chamber for collecting the corn skin from peeling process. Kernel size can be adjusted by grits making bolt. Grits granularity can be controlled by adjusting the diameter between the two fluted discs.
corn flour. Inside of the machine has highly efficient air draft chamber for collecting the corn skin from peeling process. Kernel size can be adjusted by grits making bolt. Grits granularity can be controlled by adjusting the diameter between the two fluted discs.
Specification
|
Model
|
QT-200
|
|
Voltage
|
380V
|
|
Power
|
7.5kw
|
|
Spindle speed
|
860r/min
|
|
Dimension
|
2200*500*1200mm
|
|
Weight
|
200kg
|
|
Output |
Corn peeled 300kg/h
|
|
|
Corn grits 500kg/h
|
|
|
Grind cornmeal 350kg/h
|
|
|
Mill flour 200kg/h
|
