- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
WL-BE
-
Application:
-
Cable/electri/copper wire stripping
-
Weight:
-
38KG
-
Voltage:
-
AC220V/50HZ
-
Type:
-
thick wire 8sq mm
-
Stripping length:
-
head0-50 tail0-50
-
Available wire size:
-
0.1~8mm2
-
OD of wire:
-
10mm
-
Stripping speed:
-
3000-5000p/min
-
Cutting Length:
-
1mm~9999mm
-
Drive method:
-
Four-wheel drive
Quick Details
-
Usage:
-
Stripping
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Crown
-
Model Number:
-
WL-BE
-
Application:
-
Cable/electri/copper wire stripping
-
Weight:
-
38KG
-
Voltage:
-
AC220V/50HZ
-
Type:
-
thick wire 8sq mm
-
Stripping length:
-
head0-50 tail0-50
-
Available wire size:
-
0.1~8mm2
-
OD of wire:
-
10mm
-
Stripping speed:
-
3000-5000p/min
-
Cutting Length:
-
1mm~9999mm
-
Drive method:
-
Four-wheel drive

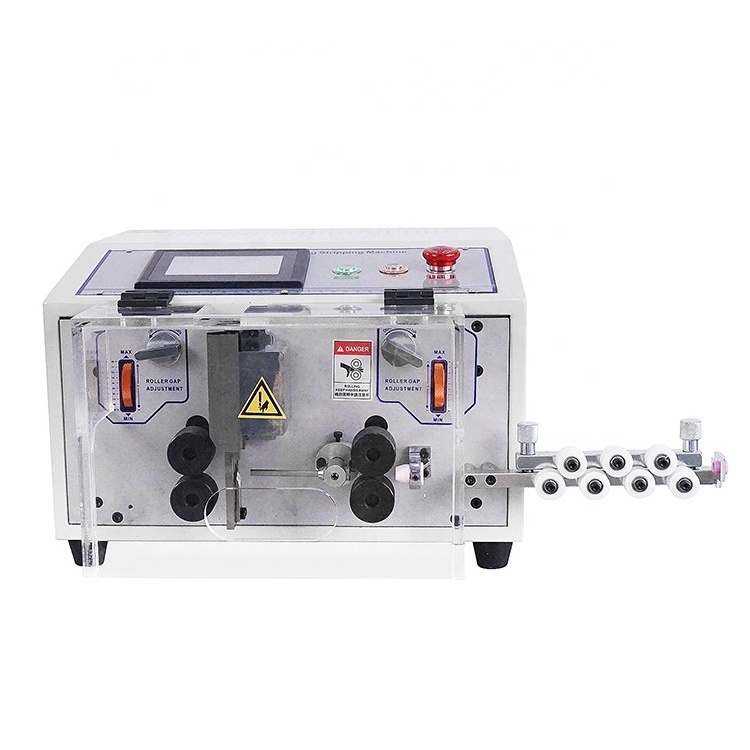

Wire/cable stripping machine
Product function characteristics
It's widely used in the electronics industry, the city ahs, electrical appliances, motor, lamps, toys, and other
various products of wire processing.
Optimal stripped wire PVC/teflong/silica gel line /. Glass fiber, etc.
Parameters
| Model | WL-BE |
| Type | thick wire 8sq mm |
| Input Voltage | AC220/ 50HZ |
| Power | 300W |
| Display method | Full Chinese LCD display |
| Cutting Length | 1mm~9999mm |
| Stripping length | head0-50 tail0-50 |
| Cutting Tolerances | ± (0.002xL) |
|
Middle stripping cutting section |
11 |
| Available wire size | 0.1~8mm2 |
| OD of wire | Dia 10 |
| Applicable wire | PVC, teflong, glass wire etc |
| Tool material | hard tungsten steel (optional) |
| Stripping speed | 3000-5000 |
| Drive method | four-wheel drive |
Wire cutting and stripping machine
Features
1. Chinese and English switching display
2. Key operation, convenient and quick,Can stay in the middle of 34mm glue,
3. Make both ends semi-stripping and twisting.
4. Easy and fast, ultra-high precision, while compatible with ordinary wire machine function, improve production efficiency.
Certifications:
Wire cutting stripping machine
Packing are solid and meet the export products standard
Shipping way can be designated by customer
Automatic wire stripping machine
Automatic wire cutting and stripping machine
Electrical wire stripping machine/copper wire cable peeling machine
Machine for cutting and stripping wire
Used wire stripping machine/pallet stripping machine/enameled wire and cable stripping machine
