Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HNHONGXIANG
-
Voltage:
-
220v/380v/415v
-
Power:
-
3kw
-
Dimension(L*W*H):
-
2500mm*2200mm*1950mm
-
Weight:
-
960 kg
-
Product name:
-
Glass Manual Edge Polishing Machine
-
Application:
-
Glass Industry
-
Color:
-
White
-
Brand:
-
China Brand
-
Usage:
-
Glass Edging Polisher Processing
-
Advantage:
-
Long Life
-
Package:
-
Wooden Package
-
Certification:
-
ISO9001
-
MOQ:
-
1PCS
-
Material:
-
Steel
Quick Details
-
Machine Type:
-
Glass Processing Machinery
-
Glass Thickness:
-
3-20mm
-
Production Capacity:
-
0.5-5M/MIN
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HNHONGXIANG
-
Voltage:
-
220v/380v/415v
-
Power:
-
3kw
-
Dimension(L*W*H):
-
2500mm*2200mm*1950mm
-
Weight:
-
960 kg
-
Product name:
-
Glass Manual Edge Polishing Machine
-
Application:
-
Glass Industry
-
Color:
-
White
-
Brand:
-
China Brand
-
Usage:
-
Glass Edging Polisher Processing
-
Advantage:
-
Long Life
-
Package:
-
Wooden Package
-
Certification:
-
ISO9001
-
MOQ:
-
1PCS
-
Material:
-
Steel

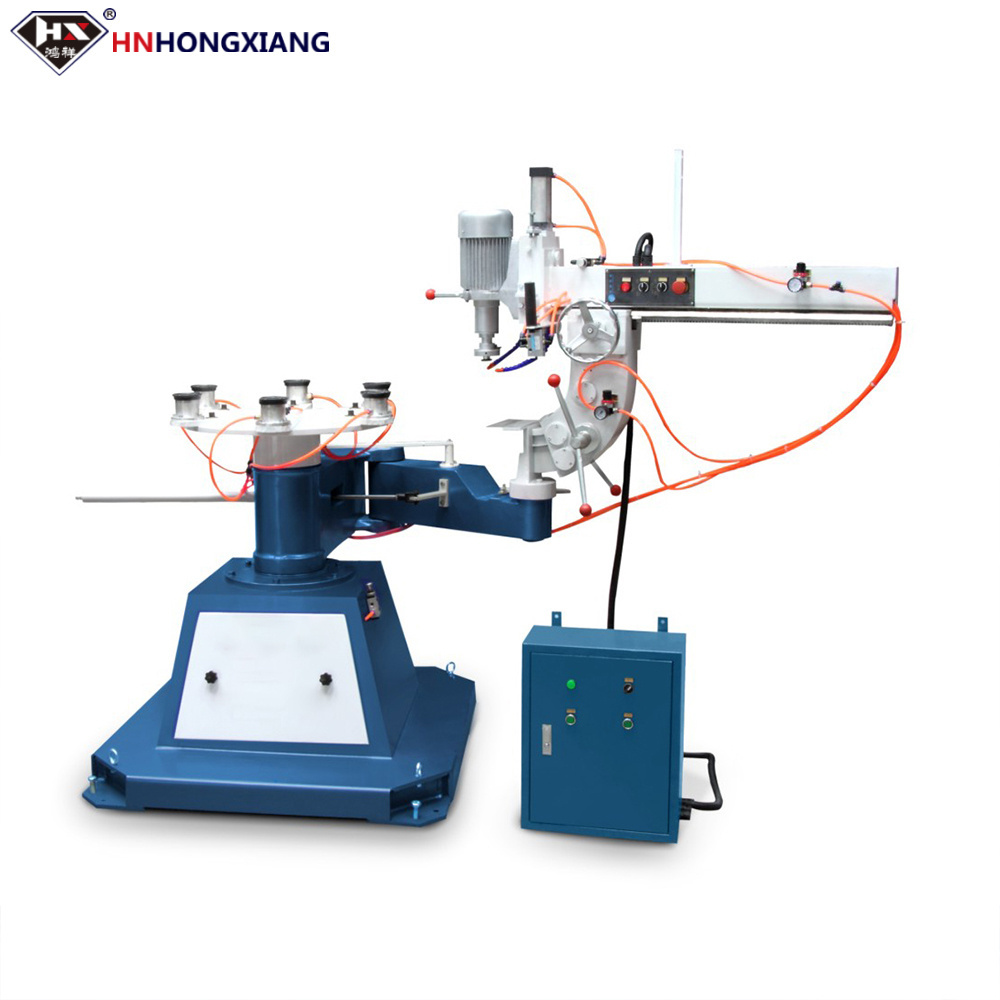

Glass Shaping Machine Small Glass Edge Shape Beveling Polishing Machine With Reasonable Price
Product Information
|
Glass processing thickness
|
3-20mm
|
|
Rotating diameter of glass
|
400-2100mm
|
|
Maximum bevel width
|
30mm
|
|
Bevel angle
|
0-15°
|
|
Total power
|
3KW
|
|
Table speed
|
0.8-4r/min
|
|
Rotary table speed
|
0-2.5r/min
|
|
Rotating speed of satellite turntable
|
0-5r/min
|
|
Bevel grinding wheel (bowl shape)
|
150mm
|
|
Edge grinding wheel (preferred)
|
150mm/175mm
|
1. Suitable for grinding and polishing round, oval and special-shaped glass round edges, duck-shaped edges, square edges and beveled edges.
2. A vacuum pump is used to adsorb the glass on the suction cup, and a motor drives the satellite turntable to rotate. The rotation speed of the turntable can be adjusted arbitrarily during operation; three grinding wheels can be installed for rough, fine grinding and polishing.
3. When grinding the bevel, install the bowl-shaped grinding wheel, tilt the grinding head backward, adjust the bevel angle, and grind the end face.
Product Usage
Used for grinding outer and inner circles of hard and brittle materials such as glass and rock plates
