Quick Details
-
Dimension(L*W*H):
-
1500*3000-20000
-
Warranty:
-
2 years
-
Power (kW):
-
64 kW
-
Weight (KG):
-
12000 KG
-
Name:
-
Thermic oil heating auto clave for vulcanizing rubber products
-
control:
-
PLC
-
door open:
-
manual and hydraulic
-
heating way:
-
electric,steam,or oil
-
no leaking:
-
safe
-
function:
-
high pressure,high temperature
-
advantage:
-
fast vulcanizing and save energy
-
operation:
-
automatic/semi-automatic
-
original:
-
made in China
-
color:
-
as you like
-
Certification:
-
CE ISO
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Guangyue
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
1500*3000-20000
-
Warranty:
-
2 years
-
Power (kW):
-
64 kW
-
Weight (KG):
-
12000 KG
-
Name:
-
Thermic oil heating auto clave for vulcanizing rubber products
-
control:
-
PLC
-
door open:
-
manual and hydraulic
-
heating way:
-
electric,steam,or oil
-
no leaking:
-
safe
-
function:
-
high pressure,high temperature
-
advantage:
-
fast vulcanizing and save energy
-
operation:
-
automatic/semi-automatic
-
original:
-
made in China
-
color:
-
as you like
-
Certification:
-
CE ISO

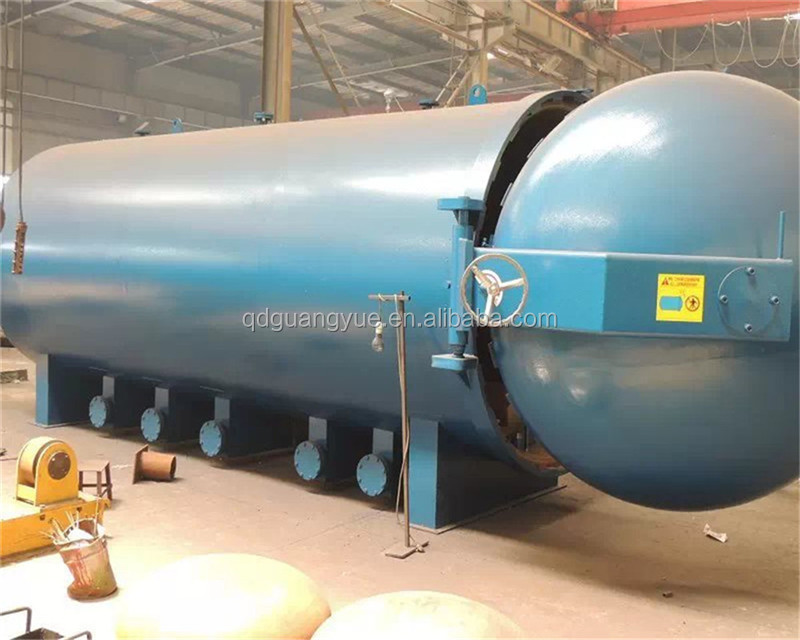

Thermic oil heating auto clave for vulcanizing rubber products
2.Function Description
a.Suitable for double-envelope curing, rim&tube curing and envelope-sealing ring curing
b.Display the curing parameters and the working state of kay components
c.Alarm when fault happens also has fault analysis
d.Adopt isolation transformer to keep PLC work smoothly
e.Heating tube heat alternately when start curing,maintain temperature balance
d.Optional Tire size:5"-15", 15"-22.5", 22.5"-25", 25"-33".
Can be designed according to your output.
3.The process as follow
tyre clean firstly dry tyre → inspecting tyre → buffing tyre → buffing outer wound of tyre → buffing inner wound of tyre → secondly inspecting tyre → repair inner wound → brushing adhesive on roof of tyre → secondly drying tyre → repair outer wound → affix middle rubber piece → tread building →assemble envelop → assemble inner tyre → assemble curing rim → inspecting inner tyre and curing rim → curing→ disassemble curing rim→ disassemble inner tyre → disassemble envelop → inspect end product → embellish tyre→ store tyre.
4, Equipment List:
the tyre retreading production line contains the following equipment:
* standard (necessery)
1. vulcanizing tank
2. inflatable tyre grinding machine
3. rubber powder collecting tank
4. inflatable tread pressing machine
5. rim disassembling machine
6. envolop disassembly machine
7. buffer strip extruder
8. rubber cement mixing tank
9. multifunctional tire repairing machine
10. circular gulding rail frame
11. hanging hook
* Optional Equipment
1. expansion tire for testing machine
2. tyre repair and cutting machine
3. tyre repair frame
The specifications customers sholud offer:
|
Inside Diameter(m) |
0.9m |
|
Inside length(m) |
5.2m |
|
Max. design pressure(bar) |
0.9MPA |
|
Working pressure(bar) |
0.85MPA |
|
Design temperature(°C) |
185°C |
|
Working temperature(°C) |
180°C |
|
Working medium |
air
|
4. Technical parameters
| Model | RT-1500 | RT-2000 | RT-2200 | RT-2500 | RT-3000 |
| Diameter (mm) | 1500 | 2000 | 2200 | 2500 | 3000 |
| Effective length | 3000-20000 | 3000-20000 | 3000-20000 | 3000-20000 | 3000-20000 |
| Material | 16MnR/Q235B | ||||
| Design temperature | 180 °C | ||||
| Design pressure | 0.8 Mpa | ||||
| Experiment pressure | 1.0 Mpa | ||||
| Specification | 16 pcs Curing Chamber for Truck Tyre |
| Range of Tyre Size | Within Size of 12.00-24 Truck and Passage Bus Tyre |
| Operating Worker No | Min. 4Staff(6 staff better) |
| Workshop Area | Min. 350m2 |
| Curing Time | 220Minutes/per shift(Timing at 112℃) |
| Max Daily Work Shift | 4ps/day |
| Max Daily Output | 64 pcs/day for within ruled max size tyre |
| Min Required Power | 380V,50HZ.,80KW |
| Min Required Air Supply | 0.8Mpa |
| Min Air Compressor | 1pcs(Air Displacement:1.5m3/min; |
| Work Prssure:1.20Mpa;Auto Power:11KW | |
| Min Required Air Storage | 1pc(Storage Volume:1M3; |
| Work Prssure:1.25Mpa;Temperature:100℃) |
| Item | 800 | 1200 | 1500 | 1700 | 2000 | 2600 | ||
| Inner diameter(mm) | 800 | 1200 | 1500 | 1700 | 2000 | 2600 | ||
| Canister length(mm) | 22000 | 3000 | 3000 | 4000 | 4000 | 10000 | ||
| Number of lid sawtooth | 12 | 12 | 14 | 14 | 16 | 24 | ||
| Thickness of lid (mm) | 10 | 10 | 10 | 10 | 16 | 14 | ||
| Thickness of the tank body(mm) | 10 | 10 | 10 | 10 | 12 | 14 | ||
| Working pressure(MPa) | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.55 | ||
| Dimensions(mm) | (length*width*height) | 22766*1445*1170 | 4010*1575*1670 | 3960*2150*2050 | 4925*2162*2070 | 6200*2590*2424 | 11722*3360*4136 | |
| Weight(Kg) | 5580 | 2017 | 2950 | 3835 | 6500 | 16775 |
u Services of pre-sales :
1. F ree Inquiry and consulting support about machine.
2. Sample send overseas support.
3. Factory visit arrangement in advance.
u Service of visit to factory and company:
1. Transportation :
We will pick you up in Qingdao liuting airport or qingdao train station with our own business car when you come.
We see you off in the airport or trian station when you leave .
2. Accommodation :
We will offer the meal for free all the time in your during time in our factory .
3. Business and language support :
We offer a Interpreter and experienced technologists around you all the time .
4. Entertainments :
I offer you free sightseeing tour in famous tourist resorts around the world in Qingdao after business talking if you like . One to two days .
In a conclude ,the only thing you need to do is pay your hotel here , other thing
s
you need not to worry about .
u Services of During-seles :
1. Design target machines up to your special requirements and send the drawing to confirm.
2. Take photos and videos to you for your information during process.
3. Documents such as packing list, commercial invoice, and bill of lading etc. will be sent in time after the delivery.
4. Free English foundation DWG, installation drawing, user guide, maintenance manual and part drawing.
5. Test Machine Before Delivery, you only need to connect the wires to the outside the control cabinet.
6. Test running: The machines must pass inspection of 3~5 hours of full load operation before leaving our factory. And we will take the video and send it to you for inspection.
u Services of After-sales :
1. Training how to instal the machine, and how to use the machine.
2. overseas technical support , door to door .
2. Warranty: 2 years after installation
The main products are hydraulic press, rubber mixing mill, dispersion kneader, bale cutter, rubber machine, tyre machine, inner tube press, reclaimed rubber machine and rubber powder machine,etc.
All of the products are designed visually by three-dimension cad design, quikly built module, limited element analysis, analogue action and interfering inspection with certificates: CE , ISO9001 , SGS
Our machines share the markets in whole China and most countries and areas in all world, such like Kazakhstan, Uzbekistan, Russia, the United Kingdom, the United States, Germany ,etc.
All the product are CE,ISO,SGS Approved
We have customers in many countries,such as Europe and the United States,
Malaysia,Vietnam, India, South America and many other countries.
